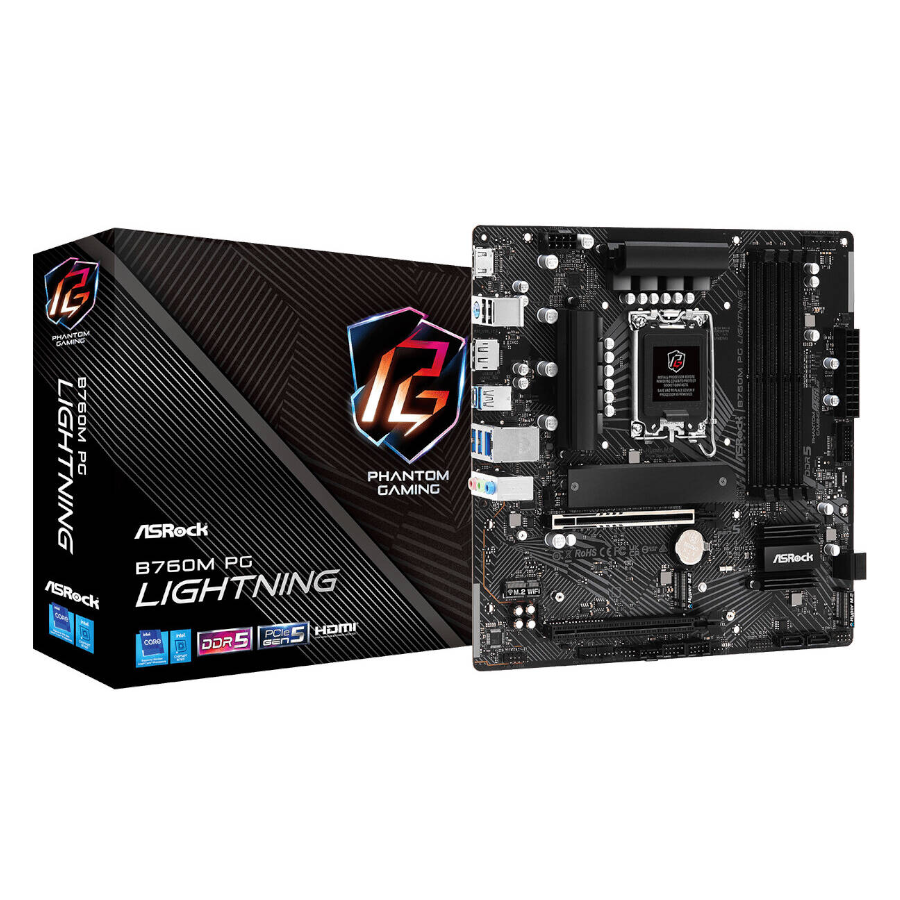

ASRock B760M PG Lightning DDR5 Gaming Motherboard — اللوحة الأم لجهاز الحاسب الآلي
ر.ع.49.00
Specifications
| Unique Feature | |
| Superb Productivity | PCIe Gen5 (Graphics) |
| Dual Channel DDR5 | |
| Rock-Solid Durability | 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT |
| Ultrafast Connectivity | 2.5G LAN |
| EZ Update | ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| Supports Intel® Hybrid Technology | |
| Supports Intel® Turbo Boost Max 3.0 Technology | |
| Supports Intel® Thermal Velocity Boost (TVB) | |
| Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel® B760 |
| Memory | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots | |
| Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* | |
| Max. capacity of system memory: 192GB | |
| Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) |
| 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG | |
| Supports Phantom Gaming LAN Software | |
| Smart Auto Adjust Bandwidth Control | |
| Visual User Friendly UI | |
| Visual Network Usage Statistics | |
| Optimized Default Setting for Game, Browser, and Streaming Modes | |
| User Customized Priority Control | |
| Slots | |
| CPU | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Chipset | 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
| Supports AMD CrossFire™ | |
| Storage | |
| CPU | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Chipset | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) |
| 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
| 6 x USB 2.0 (2 Rear, 4 Front) | |
| Connector | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| Rear Panel I/O | 2 x Antenna Mounting Points |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen1 Type-C Port | |
| 3 x USB 3.2 Gen1 Type-A Ports | |
| 2 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | |
| Software | ASRock Motherboard Utility (Phantom Gaming Tuning) |
| ASRock Phantom Gaming LAN Software* | |
| UEFI | ASRock EZ Mode |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| ASRock Easy RAID Installer | |
| Accessories | 1 x User Manual |
| 1 x I/O Shield | |
| 2 x SATA Data Cables | |
| 4 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
Additional information
| Weight | 1 kg |
|---|
