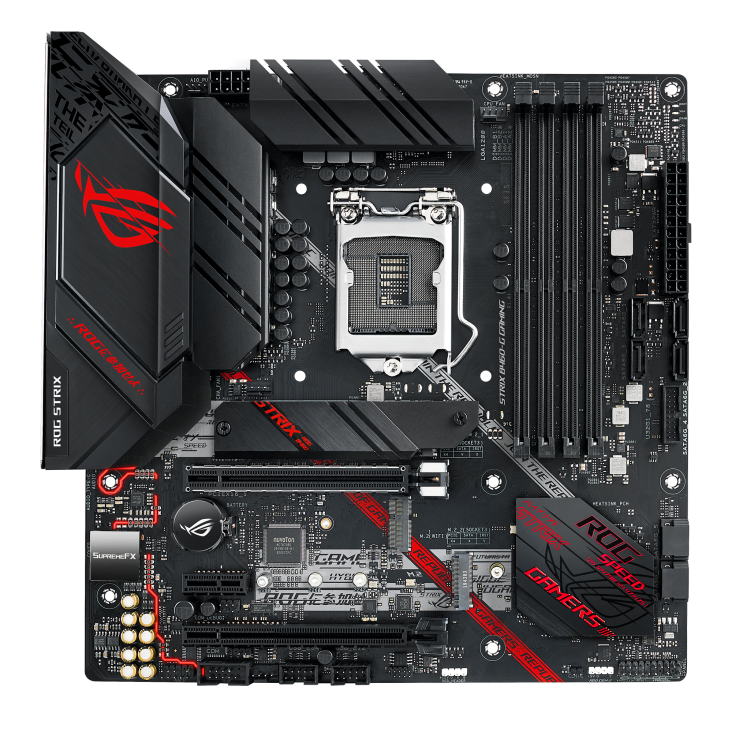

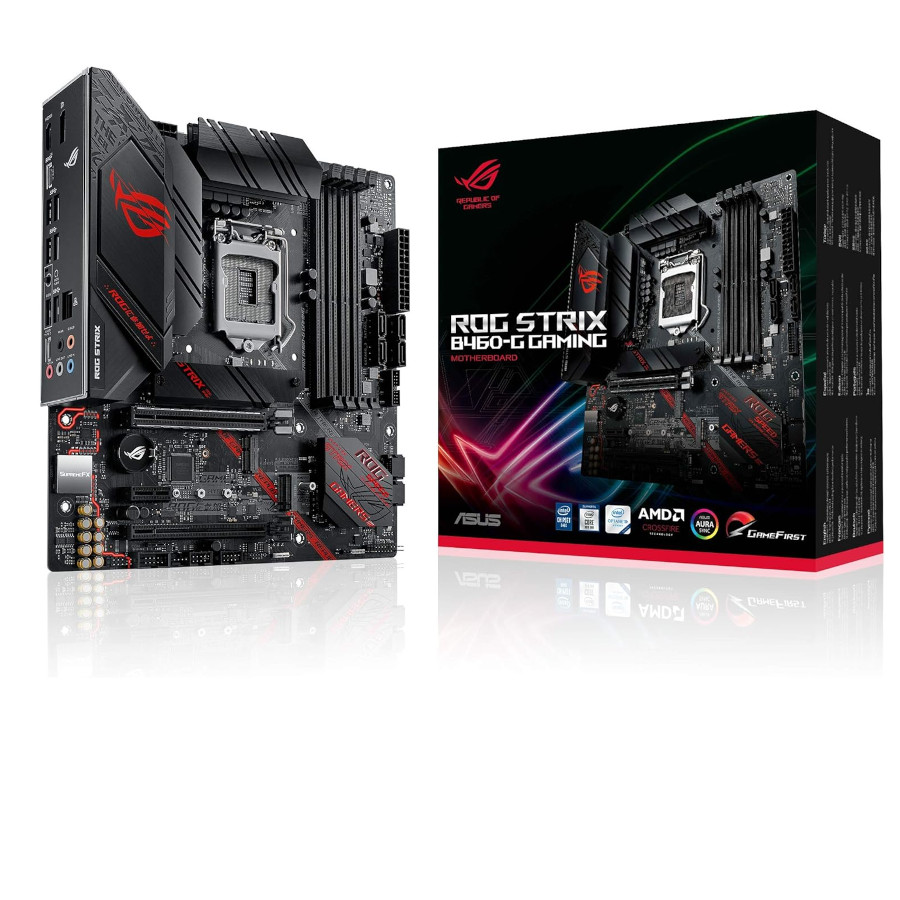

Asus ROG STRIX B460-G GAMING

ر.ع.68.00ر.ع.84.00 (-19%)

In stock

SKU: TT-MB-0108 Categories: ,

ROG STRIX B460-G GAMING

ROG Strix B460-G Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It’s packed with all the essentials, including robust hardware and intuitive ROG software to make it ideal for gamers and builders of all levels.

spec
CPU
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron®  Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com for CPU support list
Chipset
Intel® B460
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic
1 x DisplayPort  1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.  Please refer to www.intel.com for any update.
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel® B460 Chipset
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x4 mode) *1
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
Intel® B460 Chipset :
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™  Memory Ready
LAN
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
Wireless Data Network
M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
Audio
– Rear audio USB Type-C® port
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
– Premium Japanese audio capacitors
– Audio Cover
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– SupremeFX Shielding™ Technology
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
1 x USB 2.0 port(s)(1 x USB Type-C®)
Front USB Port ( Total 6 )
Rear USB Port ( Total 8 )
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
1 x USB 3.2 Gen 2×2 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features
[ROG Exclusive Software]
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software

[ASUS Exclusive Software]
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility:
  -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
– EZ update
AI Charger
WinRAR

[UEFI BIOS]
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot

ASUS Thermal Solution
– Aluminum M.2 heatsink

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS header
– Pre-mounted I/O shield
– SafeSlot

AURA Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)

Onboard red LED lighting accent
Rear audio USB Type-C® connector
Back I/O Ports
1 x USB 2.0 (1 for audio USB Type-C®)
1 x Intel® I219-V 1Gb Ethernet
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB BIOS FlashBack™ Button(s)
6 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
Internal I/O Ports
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Headers
2 x M.2 Socket 3
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
Accessories
1 x ROG audio USB Type-C® cable
1 xM.2 Key E screw package(s)
1  x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
2 x SATA 6Gb/s cable(s)
1 x pack of cable tie
User´s manual
1 x Supporting DVD
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x ROG Thank you card
2 x SATA 6Gb/s cable(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note
*1 PCIEX16_2 shares bandwidth with PCIEX1. When PCIEX16_2 runs x4 mode, PCIEX1 will be disabled. When PCIEX1 runs x1 mode, PCIEX16_2 runs x2 mode.

*2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.



See more details at asus.com



Additional information

Weight 1.35 kg
Motherboard Features

Motherboard Form Factor
