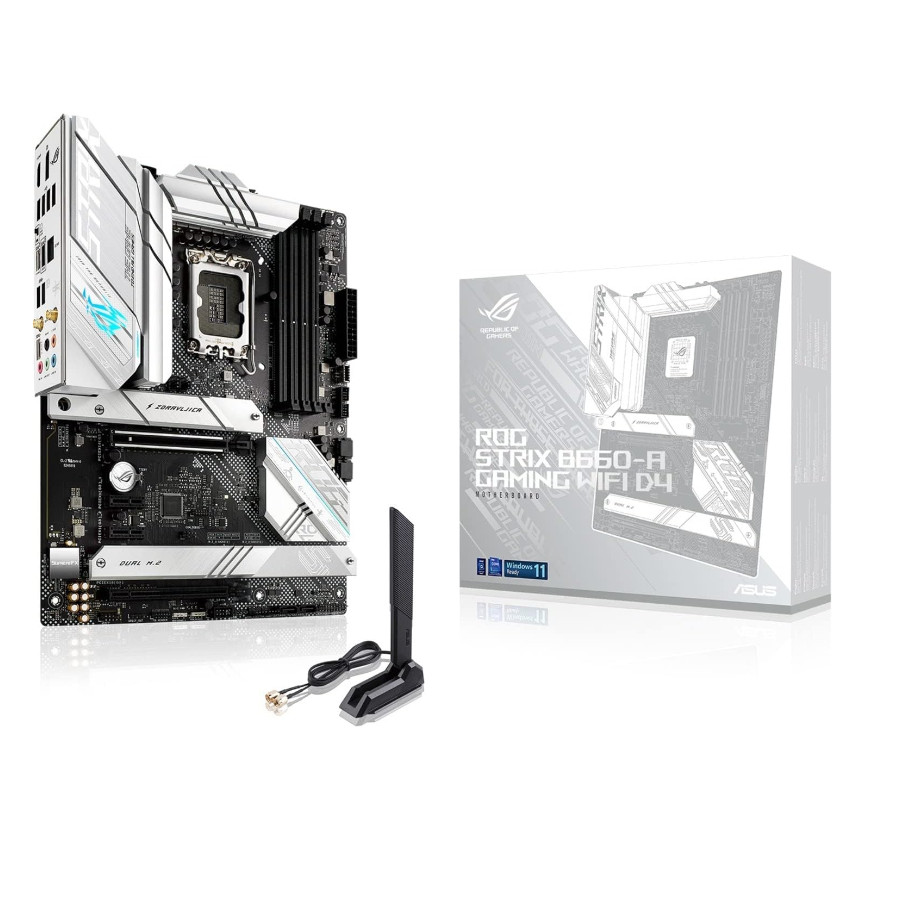

Asus ROG STRIX B660-A Wifi DDR5

ر.ع.105.00

Out of stock

SKU: TT-MB-0247 Categories: ,

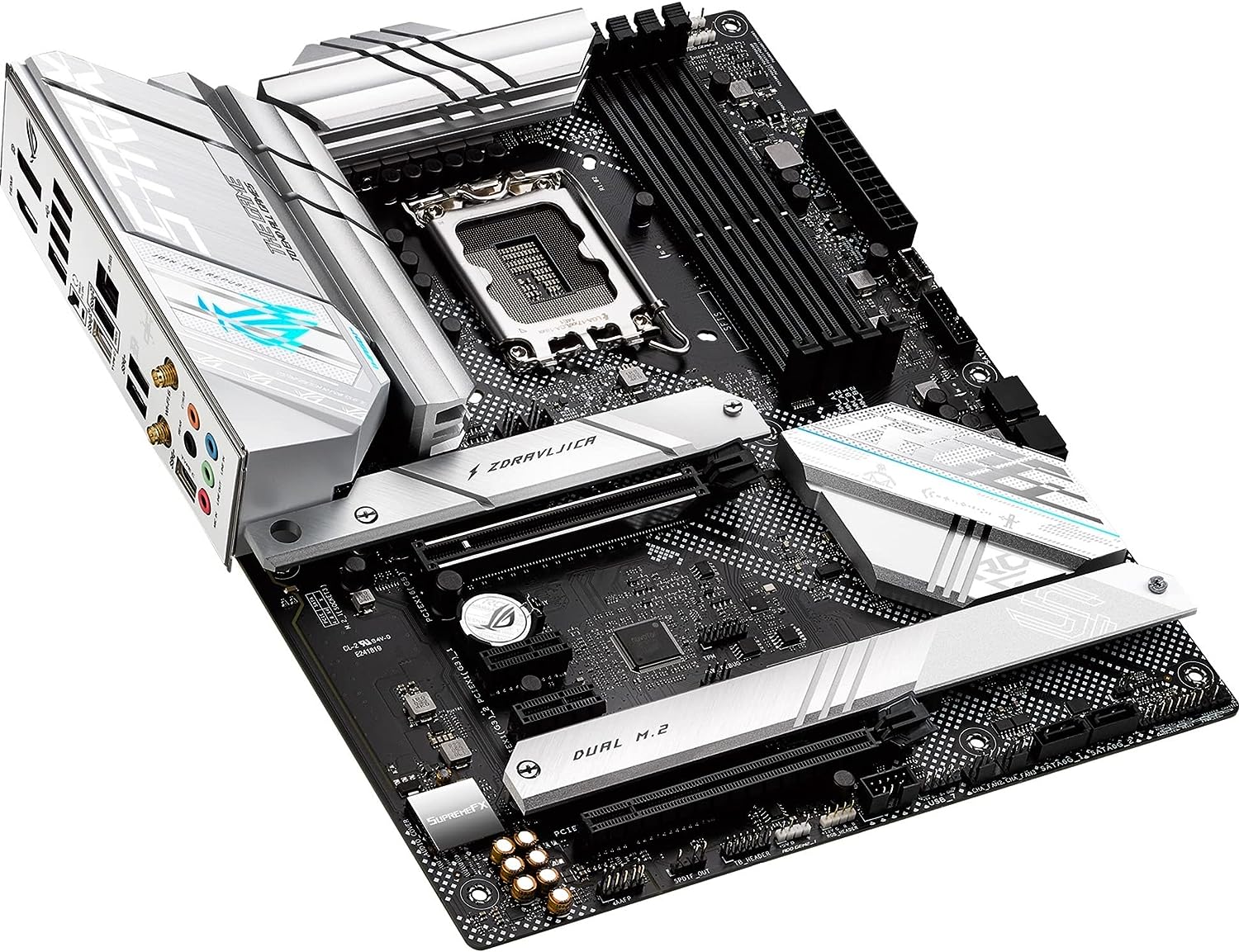

ROG STRIX B660-A GAMING WIFI

Intel® B660 LGA 1700 ATX motherboard with PCIe® 5.0, 12+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2×2 Type-C®, SATA and Aura Sync RGB lighting:



  • Intel®LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-grade alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
  • High-performance Networking: Onboard Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with a Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
  • Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard

ROG STRIX B660-A GAMING WIFI

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors



Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset



Intel® B660 Chipset



Memory



4 x DIMM, Max. 128GB, DDR5 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-buffered
Memory*

Dual Channel Memory Architecture

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.



Graphics



1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4

***Supports 4K@60Hz as specified in HDMI 2.1

**** VGA resolution support depends on processors’ or graphic cards’ resolution.



Expansion Slots



Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot*

Intel® B660 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in User Guide Chapter 1 // support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot



Storage



Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.



Ethernet

1 x Intel® 2.5Gb Ethernet



1 x Intel® 2.5Gb Ethernet
ASUS LANGuard



Wireless & Bluetooth

Intel® Wi-Fi 6



Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2



USB

Rear USB:Total 9 ports



Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x USB Type-A)
3 x USB 3.2 Gen 1 ports (2 x USB Type-A+1 x USB Type-C®)
4 x USB 2.0 ports (4 x USB Type-A)



Front USB:Total 6 ports



Front USB (Total 6 ports)

1 x USB 3.2 Gen 2 connector (1 x USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin header support additional 3 USB 2.0 ports



Audio



ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

-SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Premium audio capacitors

– Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.



Internal I/O Connectors



Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin 12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header



Special Features



Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– CPU Socket lever protector

– ProCool

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– ROG AURA sync Armor

– AURA RGB header

– Addressable Gen 2 headers



Software Features



ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

– TurboV EVO

-EPU

DIGI+ VRM

ASUS CPU-Z

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode



BIOS



192 Mb Flash ROM, UEFI AMI BIOS



Manageability



WOL by PME, PXE

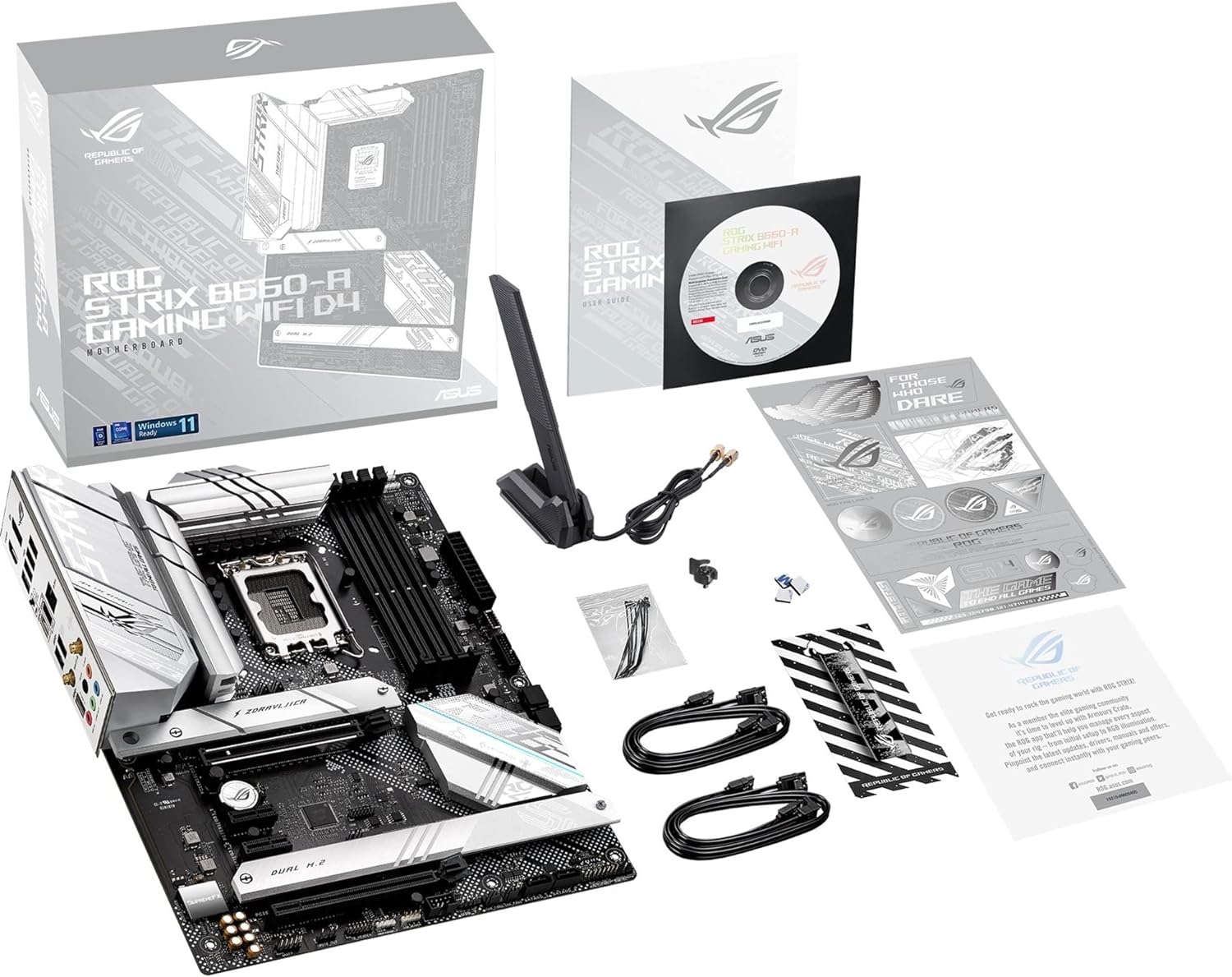

Accessories



Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix sticker

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide



Operating System

Windows® 11, Windows® 10 64-bit



Windows® 11 64-bit, Windows® 10 64-bit



Form Factor

ATX
30.5cm x 24.4cm







Additional information

Weight 1.87 kg
Motherboard Chipset

Motherboard Form Factor

Motherboard Features

,
