Outstanding flexibility and silence

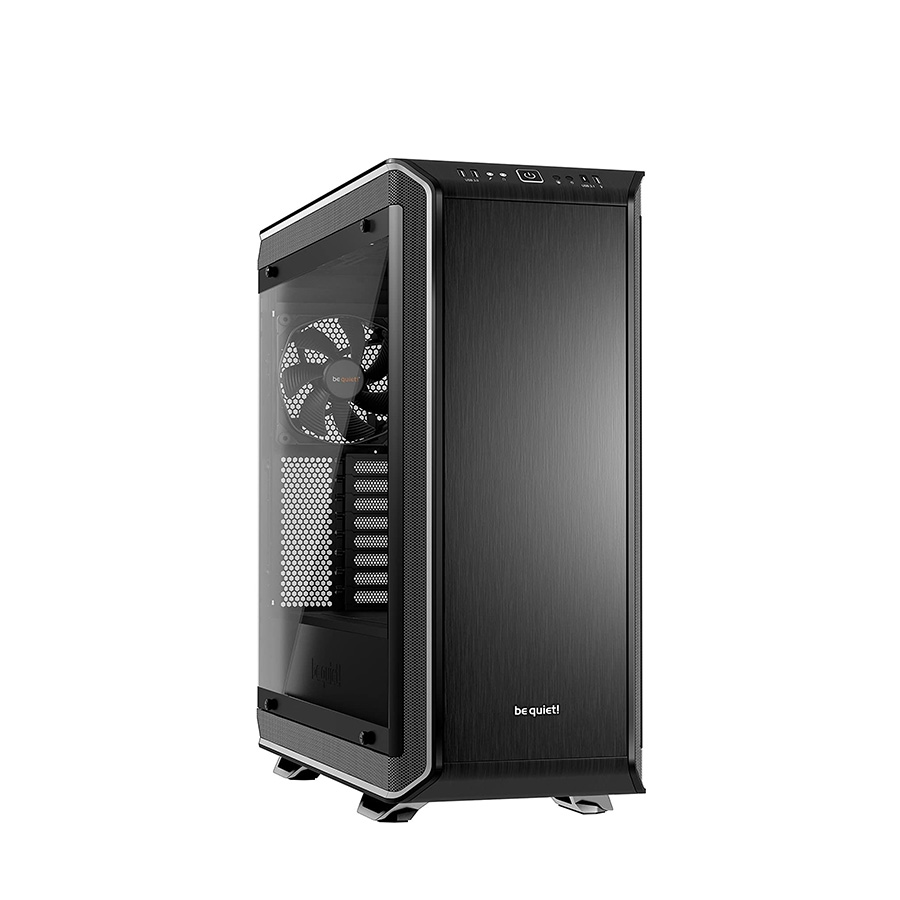

be quiet! Dark Base Pro 900 Silver rev. 2 is the perfect case for all who expect the highest standards when it comes to modularity, compatibility and design.
- Motherboard tray and HDD slots with enhanced possibilities for individual requirements
- Three Silent Wings 3 140mm PWM fans
- Stepless dual-rail fan controller is switchable between Silence and Performance modes
- Ready for radiators up to 420mm
- Full-circuit airflow system with noise-reducing vents
- Completely sound insulated with decoupled motherboard, PSU and drives
- PSU shroud and smart HDD slot covers provide a neat interior
- Side panel made of tinted and tempered glass
- RGB LED illumination with six switchable colors and motherboard control option
- USB 3.2 Gen. 2 Type C and USB quick charging option
- Wireless charger for Qi enabled devices
- Three years manufacturer’s warranty
- German product conception, design and quality control
| Model |
Dark Base Pro 900 Silver rev. 2 |
| PSU form factor |
ATX PS/2 |
| Motherboard compatibility |
E-ATX / XL-ATX / ATX / M-ATX / Mini-ITX |
| Case size excl. stands (L x W x H), (mm) |
– |
| Installation of motherboards with backplate |
✓ |
| Case size incl. stands (L x W x H), (mm) |
577 x 243 x 586 |
| Dimensions side panel window (L x W), (mm) |
479 x 525 |
| Color option |
Silver |
| Weight (kg) |
14.39 |
| USB 2.0 |
– |
| USB 3.2 Gen. 1 |
2 |
| USB 3.2 Gen. 2 Type C |
1 |
| HD Audio I/O |
Mic + Audio |
| Expansion slots |
8 |
| Fan mounting locations |
10 |
| Qi charger / Quick Charging Option |
✓ |
| Top cover |
ABS / Aluminum |
| Side panel |
ABS / Steel |
| Side panel window |
4mm tempered glass |
| Front panel |
ABS / Aluminum |
| Stands |
ABS |
| 5.25 bays |
2 |
| 3.5 slots (max.) |
7 |
| 3.5 slots (scope of delivery) |
5 |
| 2.5 slots (max.) |
14 |
| 2.5 slots (scope of delivery) |
10 |
| Fan @ top |
– |
| Fan @ front |
2x Silent Wings 3 140mm PWM |
| Fan @ rear |
1x Silent Wings 3 140mm PWM |
| Dimensions (L x W x H), (mm) |
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 |
| Fan speed @ 100% PWM / 12V (rpm) |
1600 |
| Noise level @ 100% PWM / 12V (dB(A)) |
28.1 |
| Airflow @ 100% PWM / 12V (cfm / m3/h) |
77.57 / 131.79 |
| Air pressure @ 100% PWM / 12V (mm H2O) |
2.16 |
| Voltage range (V DC) |
12 |
| Input power (W) |
1.68 |
| Input current (A) |
0.5 |
| Connector |
4-pin |
| Lifespan (h / 25°C) |
300,000 |
| Fan controller |
Dual rail stepless fan controller (8x 4-pin) / PWM hub |
| Front (mm) |
1x 140 (w/o ODD cage) |
| Top (mm) |
4x 120 / 3x 140 |
| Bottom (mm) |
2x 120 / 2x 140 |
| Side panel (mm) |
– |
| PSU shroud |
1x 120 |
| Front (mm) |
120 / 140 / 240 / 280 / 360 / 420 |
| Top (mm) |
120 / 140 / 180 / 240 / 280 / 360 / 420 |
| Bottom (mm) |
– |
| Rear (mm) |
120 / 140 |
| Max.construction height of CPU cooler unit (mm) |
185 |
| Airflow channel |
Full circuit airflow system |
| RGB LED illumination |
Internal |
| LEDs synchronizable with RGB controller/motherboard |
✓ |
| Expandable RGB controller |
✓ |
| Maximum dimensions excl. bottom fan (mm) |
284 |
| Maximum dimensions incl. bottom fan (mm) |
150 |
| HDD cage (in height of graphics card) installed (mm) |
323 |
| HDD cage (in height of graphics card) removed (mm) |
472 |
| Top panel insulation mats |
– |
| Front panel insulation mats |
✓ |
| Side panel insulation mats |
✓ |
| Anti-vibration decoupled HDD |
✓ |
| Anti-vibration decoupled fan |
✓ |
| Anti-vibration decoupled PSU |
✓ |
| Anti-vibration decoupled motherboard-tray |
✓ |
| Front |
1 |
| Bottom |
1 |
| Side panel |
1 |
| Screw set (Drives/Motherboard) |
✓ |
| Rubber rail (pcs.) |
– |
| Standoff (pcs.) |
3 (for E-ATX) |
| LCS bracket (pcs). |
1 |
| HDD slot cover (pcs.) |
6 |
| Upper fan bracket (pcs.) |
1 |
| HDD panel rubber grommet (pcs.) |
– |
| SSD bracket for PSU shroud |
1 |
| LED strips (pcs.) |
1 |
| Cable ties (pcs.) |
6 (Velcro) |
| Warranty (Years) |
3 |
| International hotline / free of charge |
✓ / DE, FR |
| Article number |
BGW16 |
| EAN code |
4260052186916 |
| Certifications |
CE / RoHS |
| Dimensions, package (L x W x H), (mm) |
655 x 325 x 680 |
| Gross weight, package (kg) |
16.52 |
| Pieces per packaging unit |
1 |
| RRP (€) |
269.00 |
