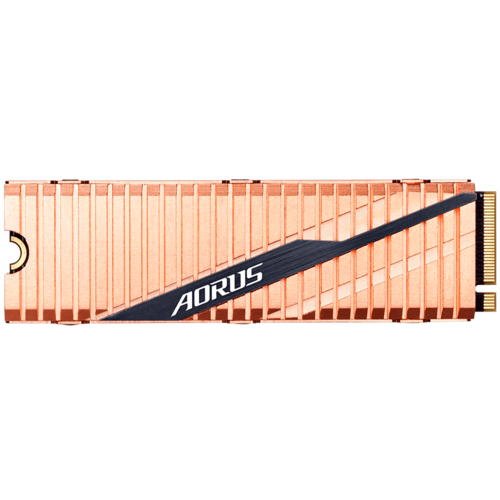

AORUS NVMe Gen4 SSD 500GB

• Form Factor: M.2 2280
• Interface: PCI-Express 4.0 x4, NVMe 1.3
• Total Capacity: 500GB*
• Sequential Read Speed : up to 5000 MB/s**
• Sequential Write speed : up to 2500 MB/s**
• Wear Leveling, Over-Provision technologies
• TRIM & S.M.A.R.T supported
• Fully Body Copper Heat Spreader

World First PCIe 4.0×4 Controller

The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

1. PCIe 4.0×4, NVMe 1.3 Interface
2. DDR4 DRAM cache
3. 8 CH with 32 CEs
4. Phison 4th Gen LDPC & RAID ECC
5. Support Pyrite
6. Heat spreader for controller
