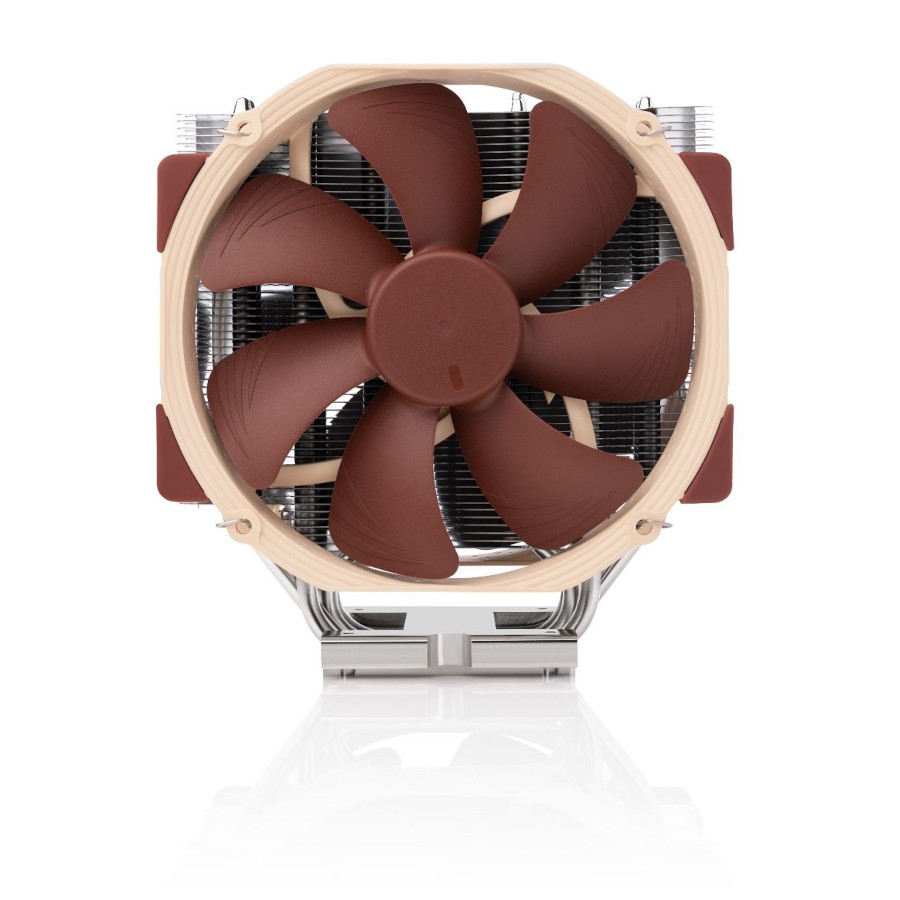

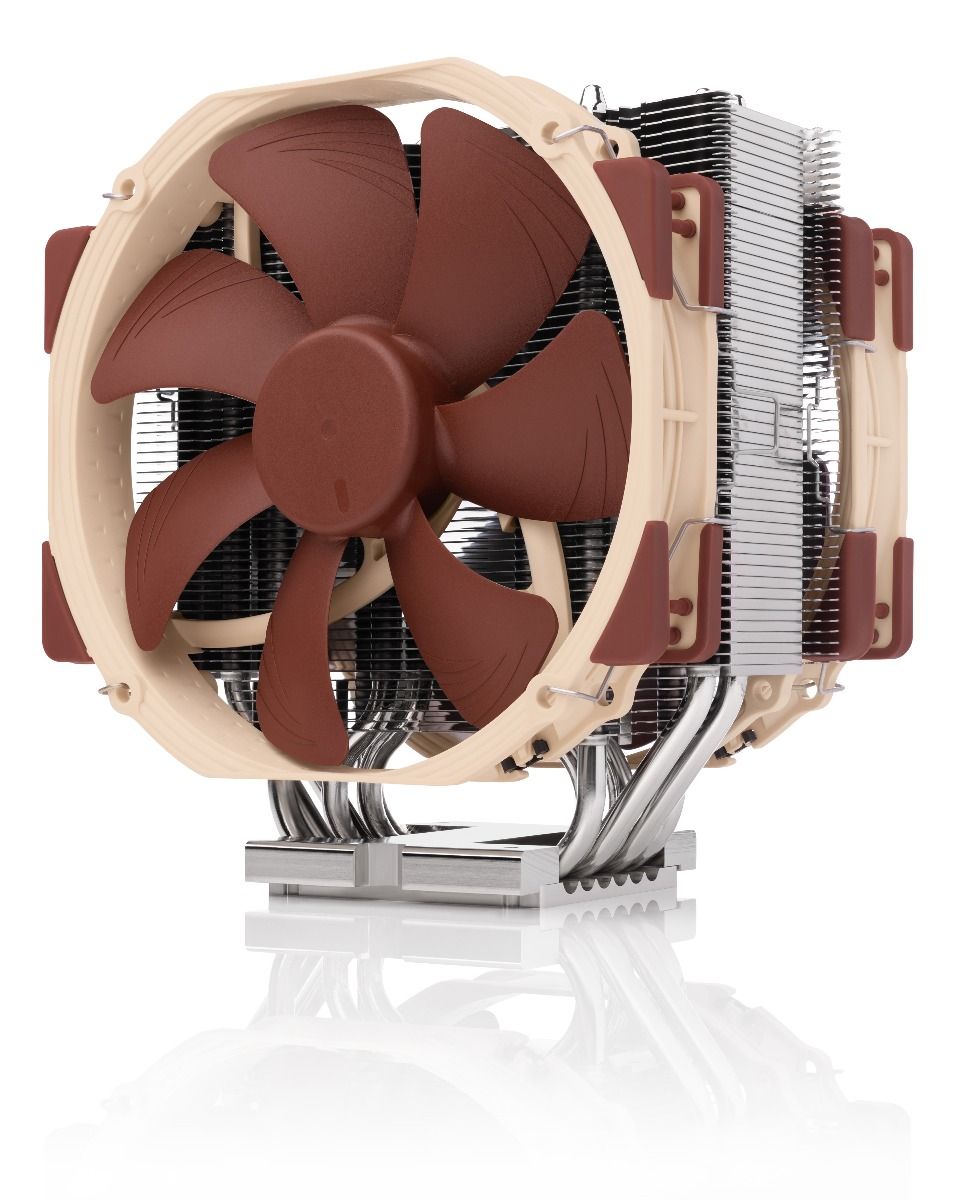

NOCTUA NH-U14S DX-4677 CPU Air Cooler
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U14S DX-4677 features a larger, custom-designed contact surface for LGA4677 platforms. Based on the proven, 140mm size NH-U14S heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A15 140mm fans, it combines maximum performance and superb acoustics. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U14S DX-4677 forms a complete premium quality package for quietly cooling LGA4677 based Xeon workstations and servers.
Cooler Specification
Intel Xeon LGA4677
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 111 mm
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
179
Max. TDP
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
- 2x NF-A15 PWM premium fan
- NA-YC1 4-pin PWM y-cable

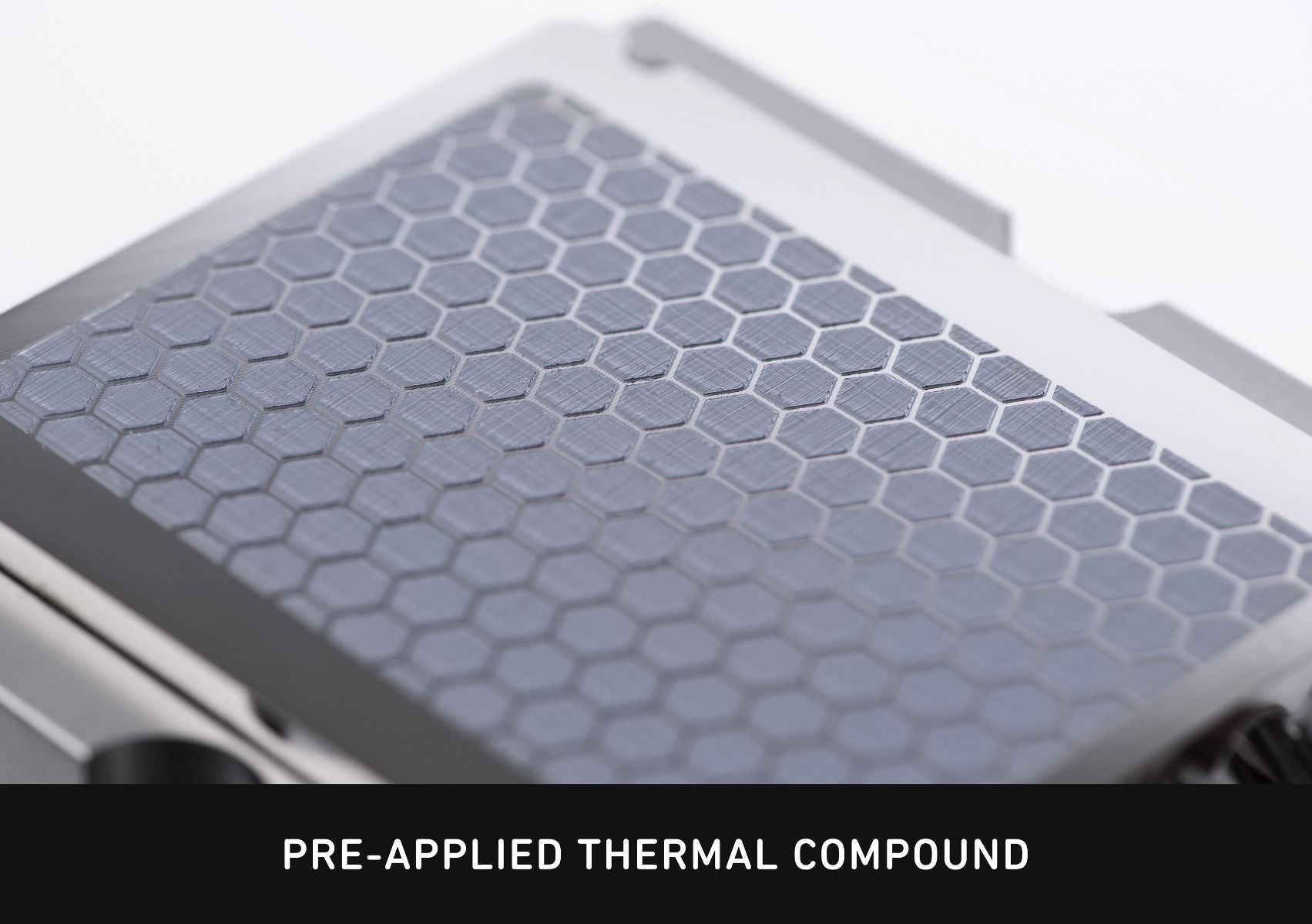

- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit for LGA4677
Additional information
Weight | 1.150 kg |
---|
