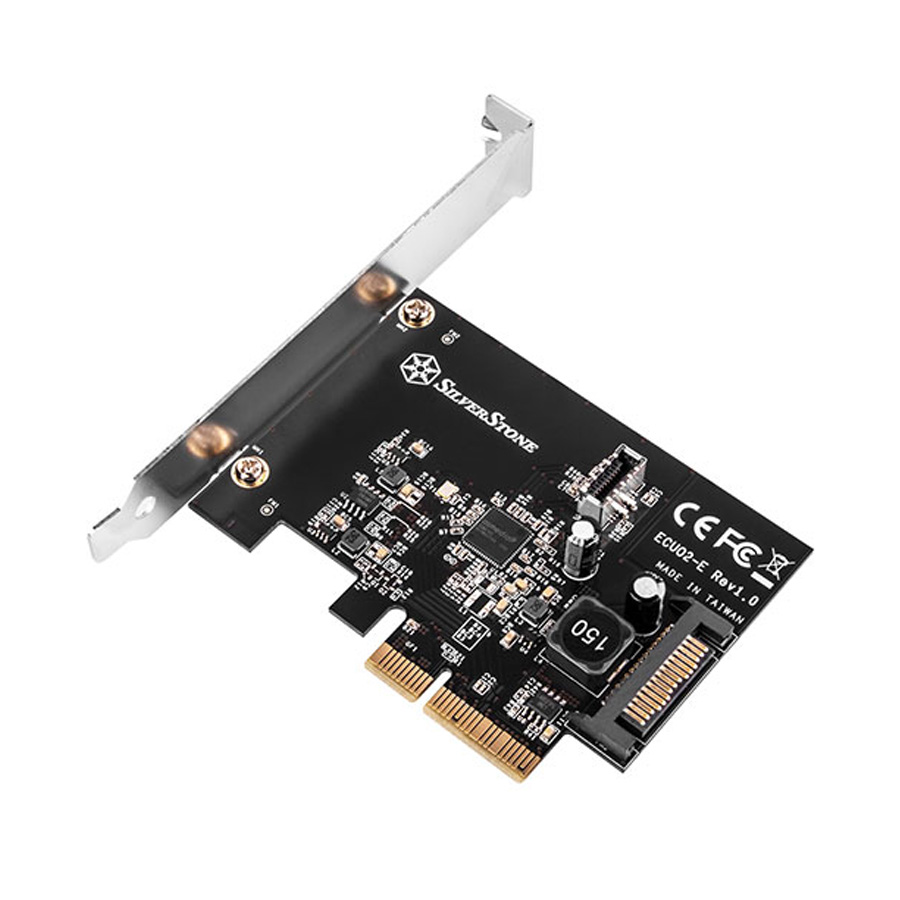

Silverstone ECU02-E PCI Express card with USB 3.2 Gen 2 internal 20 pin Key-A connector
ر.ع.20.00
Silverstone ECU02-E PCI Express card with USB 3.2 Gen 2 internal 20 pin Key-A connector
Model No.
SST-ECU02-E
Host interface
Low profile – PCIe 3.0 x2 (16GT/s)
USB Ports
Internal 20 pin Key-A connector for USB 3.2 Gen2 Type-C port
USB 3.1 controller
ASMEDIA ASM3142
Transmitting Speed
USB 3.2 Gen2 (10Gbps), USB 3.1 Gen 1 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Power requirement
5V via SATA 15pin power connector
Power Management
Support USB 3.2 and USB 2.0 link power management
Current protection
Support over current detection and protection
Operation Temperature
Operating temperature range: 0 ~ 70 ºC
Storage temperature range: -20 ~ +70 ºC
Storage temperature range: -20 ~ +70 ºC
Humidity range: 5 ~ 95% RH
Operating system support
Windows 7* / 8 / 8.1 / 10** (32bit / 64bit) or future release version, Ubuntu / Linux / Mac OS***
Dimension
123mm (W) x 21mm (H) x 105mm (D)
Net weight
47g
