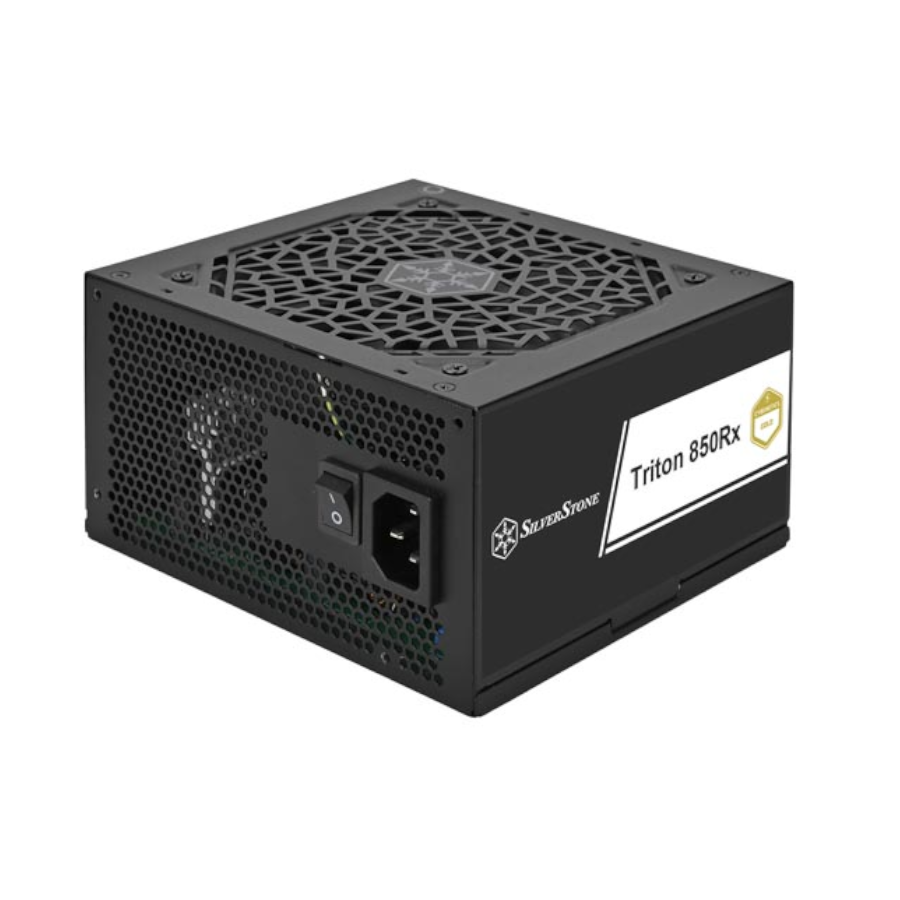

Silverstone SST-TR850R-GF 850w Gold Power Supply
ر.ع.34.00
Supports 12V-2×6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
Silent running 120mm ICB cooling fan
Black embossed cable design
Main Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40℃ operating temperature
Compact design with a 140mm depth for easy integration
Product No.
SST-TR850R-GF
Model (safety certification)
SST-AX0850FCGD-A
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
470.7 W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 18A 18A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
100W
Combined +12V
850W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
1 x 12+4-Pin 12V-2×6 connector
5 x 8 / 6-Pin PCIe connector
6 x SATA connector
2 x 4-Pin Peripheral connector
Cooling System
Single 120mm ICB bearing fan
Noise Level
18 dBA min.
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
5.91″ (W) x 3.39″ (H)
Additional information
| Weight | 2 kg |
|---|
