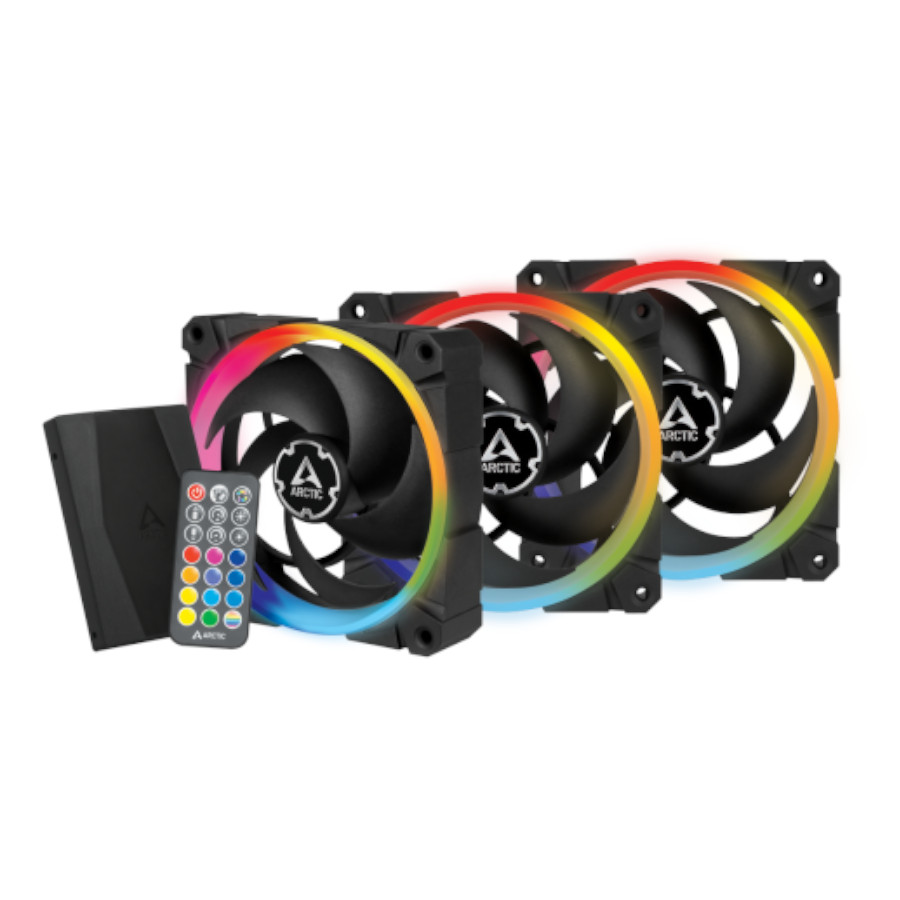

ARCTIC BioniX P120 A-RGB Bundle

The 12 A-RGB LEDs installed in the BioniX P120 A-RGB are autonomously controllable. The BioniX P120 A-RGB is compatible with the common A-RGB standards of leading motherboard manufacturers for the simplest possible use. It can therefore be fully illuminated directly via the A-RGB motherboard connection or via an external controller and synchronized with other hardware lighting.

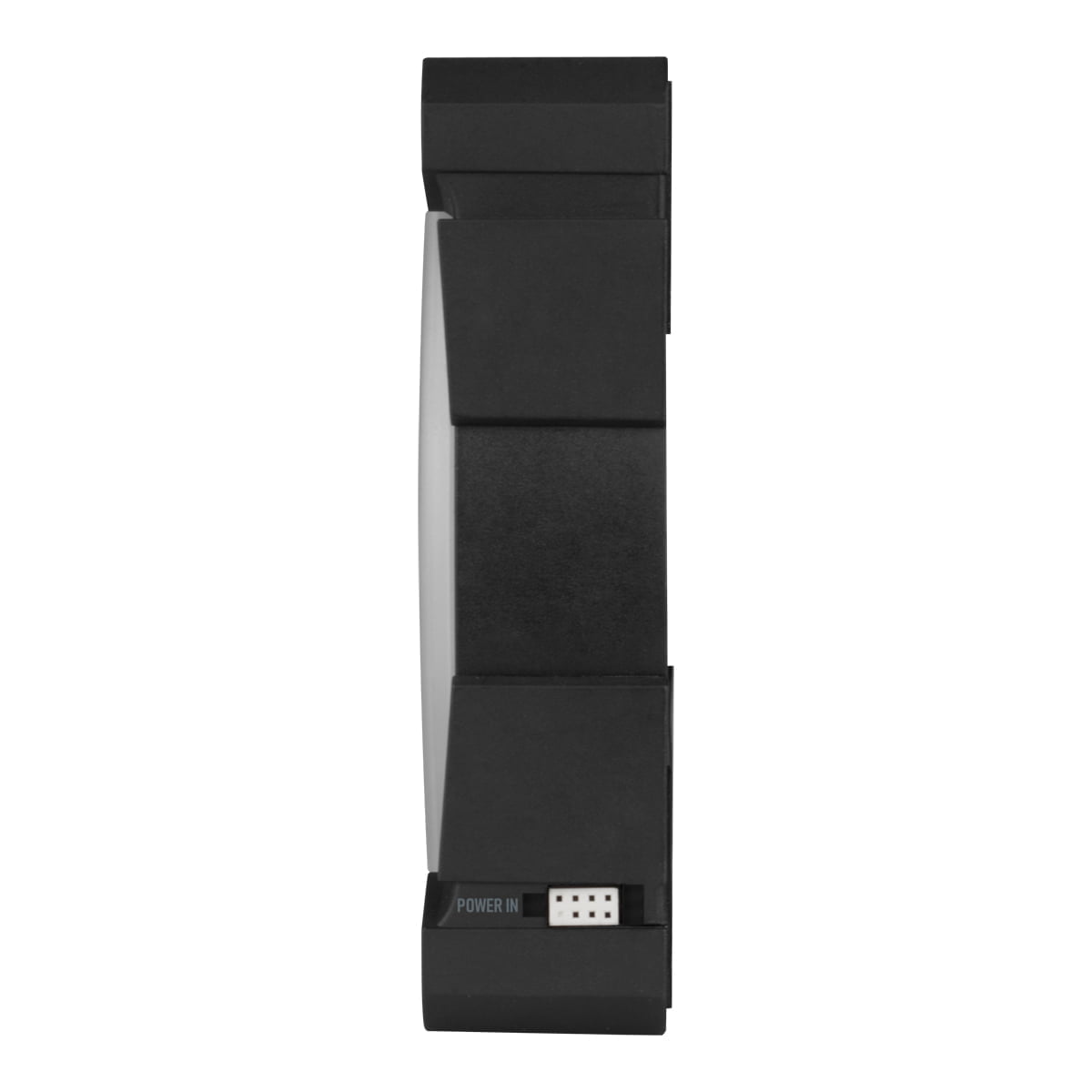

The ARCTIC BioniX P120 A-RGB have a modular cable management and use two connections: a power-in and a connector output. ARCTIC uses an 8-pin connector for this, which forwards both the fan and lighting signals and considerably simplifies the cabling *. The included connector block also enables a wireless series connection.

 * all necessary cables are included

General Specifications<
Fan Speed:
400 – 2300 rpm
Airflow:
48 CFM | 81,55 m³/h
Static Pressure:
2,1 mm/H2O
Noise Level:
0.45 Sone
RPM Controll:
PWM
Connector:
2x A-RGB Fan 8-pin Connector
Fan Bearing:
Fluid Dynamic Bearing

Electrical Fan Specifications
Typical Voltage:
12 V DC
Startup Voltage:
7 V
Current:
0.13 A
Cable Length:
400 mm + 80 mm

A-RGB Specifications
Number of LEDs LEDs:
12 A-RGB LEDs
Typical Voltage:
5 V
Current:
0.38 A

Size & Weight
Lenght:
120 mm
Width:
120 mm
Height:
30 mm
Weight:
209 g
