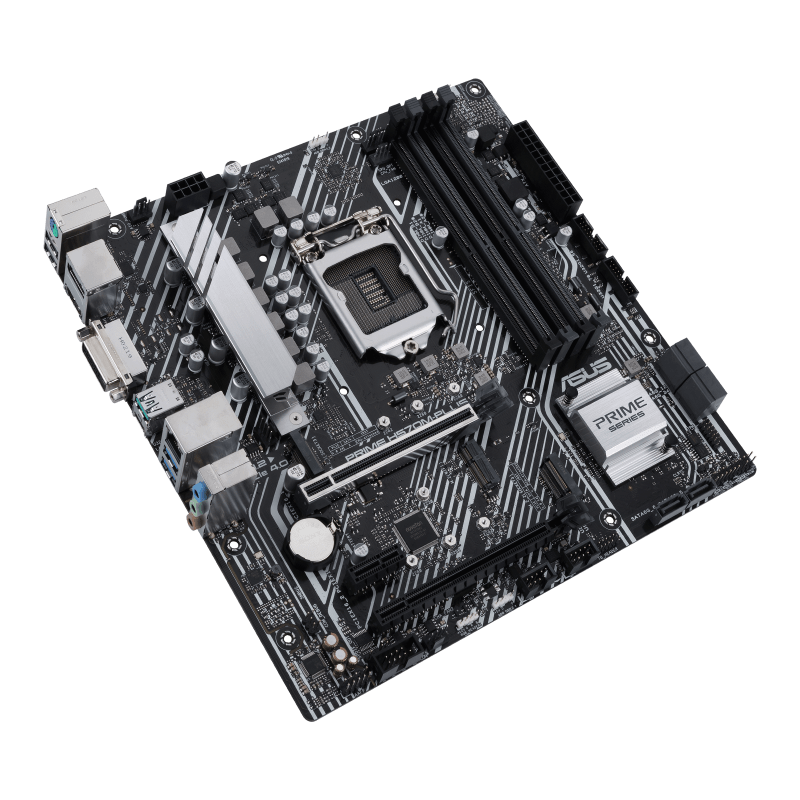

• Intel^® LGA 1200 socket: Ready for 11th and 10th gen Intel^® Core™ processors
• Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Ultrafast connectivity: PCIe^® 4.0, Dual M.2, Intel^® 1 Gb Ethernet, USB 3.2 Gen 2 Type-C^® and Thunderbolt™ 4 header support
•
  CPU
  Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  * Refer to www.asus.com for CPU support list.

  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Supports Intel® 14 nm CPU

  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  * Refer to www.asus.com for CPU support list.

  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  H570
  Memory
  DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  OptiMem

  * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

  * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
  4 x DIMM, Max. 128GB, 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  OptiMem

  * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

  * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
  Graphics
  1 x DisplayPort 1.4
  1 x DVI-D
  * Graphics specifications may vary between CPU types.

  ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

  *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
  Expansion Slots
  1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
  Intel® 11th & 10th Gen Processors*

  1 x PCIe 4.0/3.0 x16 slot

  – Intel® 11th Gen processors support PCIe 4.0 x16 mode

  – Intel®10th Gen processors support PCIe 3.0 x16 mode

  Intel® H570 Chipset

  1 x PCIe 3.0 x16 slot (supports x4 mode)

  1 x PCIe 3.0 x1 slot
  Intel® 11th & 10th Gen Processors*

  1 x PCIe 4.0/3.0 x16 slot

  – Intel® 11th Gen processors support PCIe 4.0 x16 mode

  – Intel®10th Gen processors support PCIe 3.0 x16 mode

  Intel® H570 Chipset

  1 x PCIe 3.0 x16 slot (supports x4 mode)

  1 x PCIe 3.0 x1 slot
  Storage
  Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel®11th Gen Processors

  M.2_1 slot (Key M), type 2242/2260/2280

  – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

  Intel® H570 Chipset

  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

  6 x SATA 6Gb/s ports

  Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

  To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

  * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
  Intel®11th Gen Processors

  M.2_1 slot (Key M), type 2242/2260/2280

  – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

  Intel® H570 Chipset

  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

  6 x SATA 6Gb/s ports

  Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

  To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

  * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used
  Ethernet
  1 x Intel® 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  M.2 slot only (Key E, CNVi & PCIe)
  USB
  Rear USB:Total 6 ports
  2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)

  2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)

  Front USB:Total 8 ports
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  – Supports up to 24-Bit/192 kHz playback

  Audio Features

  – Audio Shielding

  – Premium Japanese audio capacitors

  – Dedicated audio PCB layers

  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  – Supports up to 24-Bit/192 kHz playback

  Audio Features

  – Audio Shielding

  – Premium Japanese audio capacitors

  – Dedicated audio PCB layers

  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

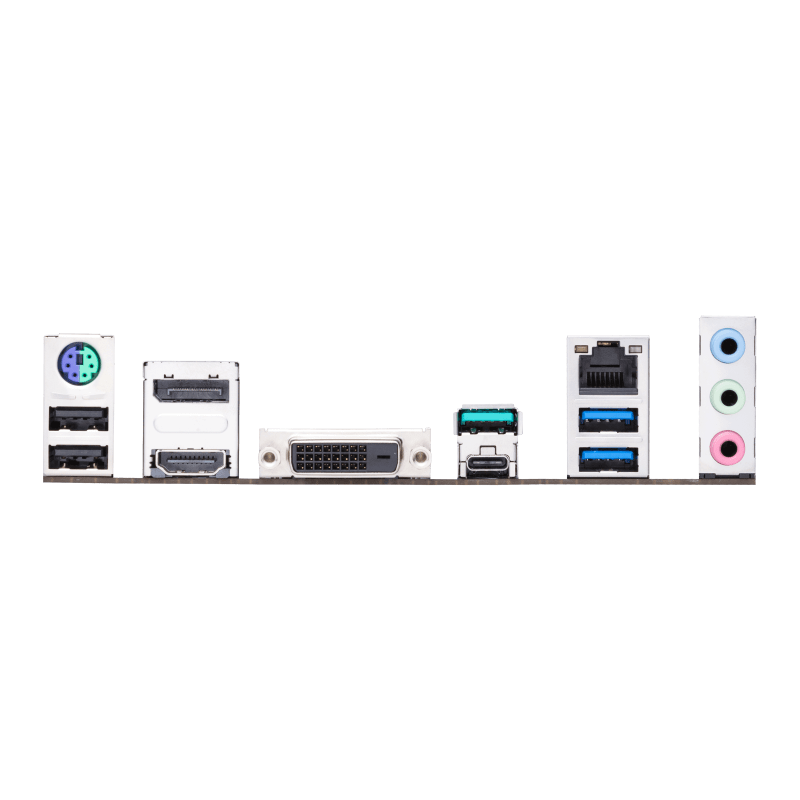

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)

  1 x DisplayPort

  1 x DVI-D port

  1 x HDMITM port

  1 x Intel® I219V 1Gb Ethernet

  3 x Audio jacks

  1 x PS/2 Keyboard/Mouse combo port
  2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)

  1 x DisplayPort

  1 x DVI-D port

  1 x HDMI port

  1 x Intel® I219V 1Gb Ethernet

  3 x Audio jacks

  1 x PS/2 Keyboard/Mouse combo port
  Intrernal I/O Connectors
  1 x TB Header (for add-on TB card)
  Fan and cooling related

  1 x 4-pin CPU Fan header

  1 x 4-pin CPU OPT Fan header

  1 x 4-pin AIO Pump header

  2 x 4-pin Chassis Fan headers

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  2 x M.2 slots (Key M)

  6 x SATA 6Gb/s ports

  USB

  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Miscellaneous

  2 x AURA Addressable Gen 2 headers

  2 x AURA RGB headers

  1 x Clear CMOS header

  1 x COM Port header

  1 x Front Panel Audio header (AAFP)

  1 x M.2 slot (Key E)

  1 x S/PDIF Out header

  1 x SPI TPM header (14-1pin)

  1 x 20-3 pin System Panel header with Chassis intrude function

  1 x Thunderbolt™ header

  Fan and cooling related

  1 x 4-pin CPU Fan header

  1 x 4-pin CPU OPT Fan header

  1 x 4-pin AIO Pump header

  2 x 4-pin Chassis Fan headers

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  2 x M.2 slots (Key M)

  6 x SATA 6Gb/s ports

  USB

  2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Miscellaneous

  2 x AURA Addressable Gen 2 headers

  2 x AURA RGB headers

  1 x Clear CMOS header

  1 x COM Port header

  1 x Front Panel Audio header (AAFP)

  1 x M.2 slot (Key E)

  1 x S/PDIF Out header

  1 x SPI TPM header (14-1pin)

  1 x 20-3 pin System Panel header with Chassis intrude function

  1 x Thunderbolt™ header

  Special Features
  ASUS 5X PROTECTION III

  – DIGI+ VRM (- Digital power design with DrMOS)

  – LANGuard

  – Overvoltage Protection

  – SafeSlot Core+

  – Stainless-Steel Back I/O

  ASUS Q-Design

  – ASUS Q-DIMM

  – ASUS Q-Slot

  ASUS Thermal Solution

  – VRM heatsink design

  AURA Sync

  – AURA RGB headers

  – Addressable Gen 2 RGB headers
  ASUS 5X PROTECTION III

  – DIGI+ VRM (- Digital power design with DrMOS)

  – LANGuard

  – Overvoltage Protection

  – SafeSlot Core+

  – Stainless-Steel Back I/O

  ASUS Q-Design

  – ASUS Q-DIMM

  – ASUS Q-Slot

  ASUS Thermal Solution

  – VRM heatsink design

  AURA Sync

  – AURA RGB headers

  – Addressable Gen 2 RGB heade
  Software Features
  ASUS Exclusive Software

  Armoury Crate

  – AURA Sync

  AI Suite 3

  – Performance And Power Saving Utility

  TurboV EVO

  EPU

  Digi+ VRM

  FAN Xpert 2+

  – EZ update

  ASUS CPU-Z

  AI Charger

  Norton Anti-virus software (Free Trial version)

  DAEMON Tools

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  – ASUS CrashFree BIOS 3

  – ASUS EZ Flash 3

  – ASUS UEFI BIOS EZ Mode
  ASUS Exclusive Software

  Armoury Crate

  – AURA Sync

  AI Suite 3

  – Performance And Power Saving Utility

  TurboV EVO

  EPU

  Digi+ VRM

  FAN Xpert 2+

  – EZ update

  ASUS CPU-Z

  AI Charger

  Norton Anti-virus software (Free Trial version)

  DAEMON Tools

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  – ASUS CrashFree BIOS 3

  – ASUS EZ Flash 3

  – ASUS UEFI BIOS EZ Mode
  BIOS
  192 (128+64) Mb Flash ROM, UEFI AMI BIOS

  192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  WOL by PME, PXE
  Accessories
  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

  1 x I/O Shield

  1 x M.2 SSD screw package

  1 x M.2 Key E screw package

  Installation Media

  1 x Support DVD

  Documentation

  1 x User manual
  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

  1 x I/O Shield

  1 x M.2 SSD screw package

  1 x M.2 Key E screw package

  Installation Media

  1 x Support DVD

  Documentation

  1 x User manual
  Form Factor
  microATX
  24.4cm x 24.4cm
