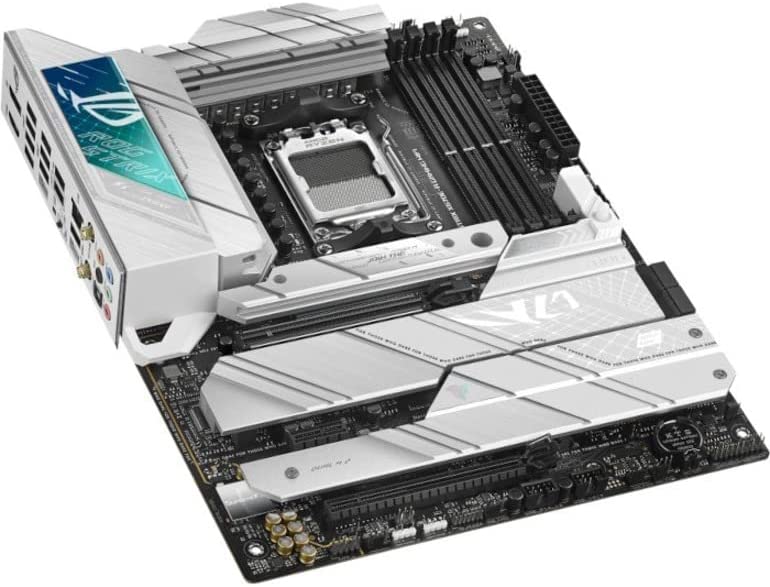

ROG STRIX X670E-A GAMING WIFI
Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.

PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

LEADING CONNECTIVITY
The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about the ASUS WiFi 6E ecosystem.

Intel 2.5G Ethernet
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PLAY IN STYLE
A striking silver and white aesthetic with complementary RGB lighting delivers a build that stands out in every way. Pair the Strix X670E-A with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

ROG STRIX X670E-A GAMING WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot

AMD X670 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

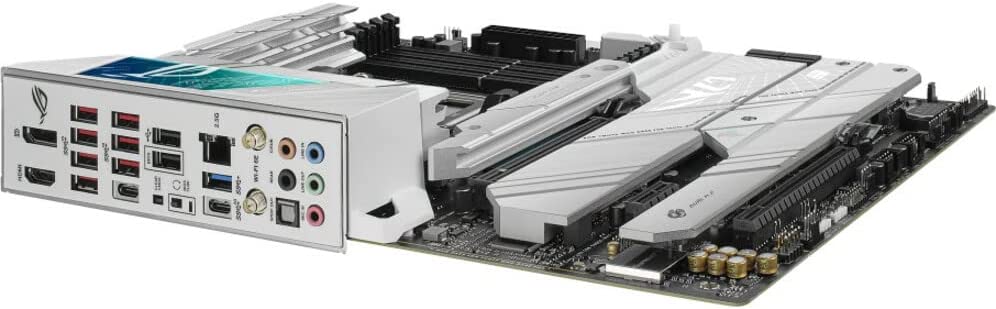

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™  header

Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors

ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

AURA Sync
– AURA RGB header
– Addressable Gen 2 headers

Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software

ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate

Documentation
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
