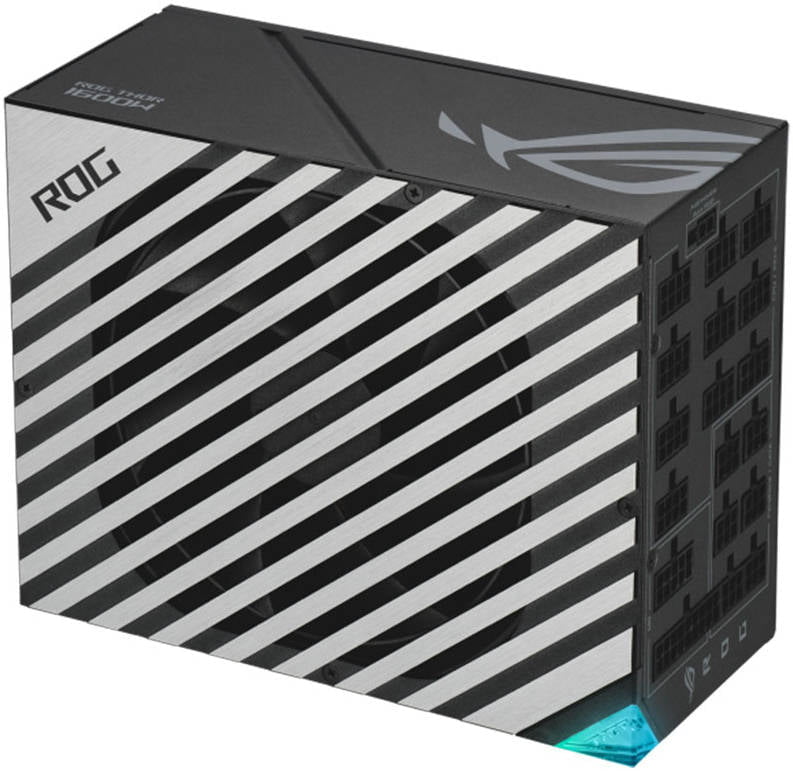

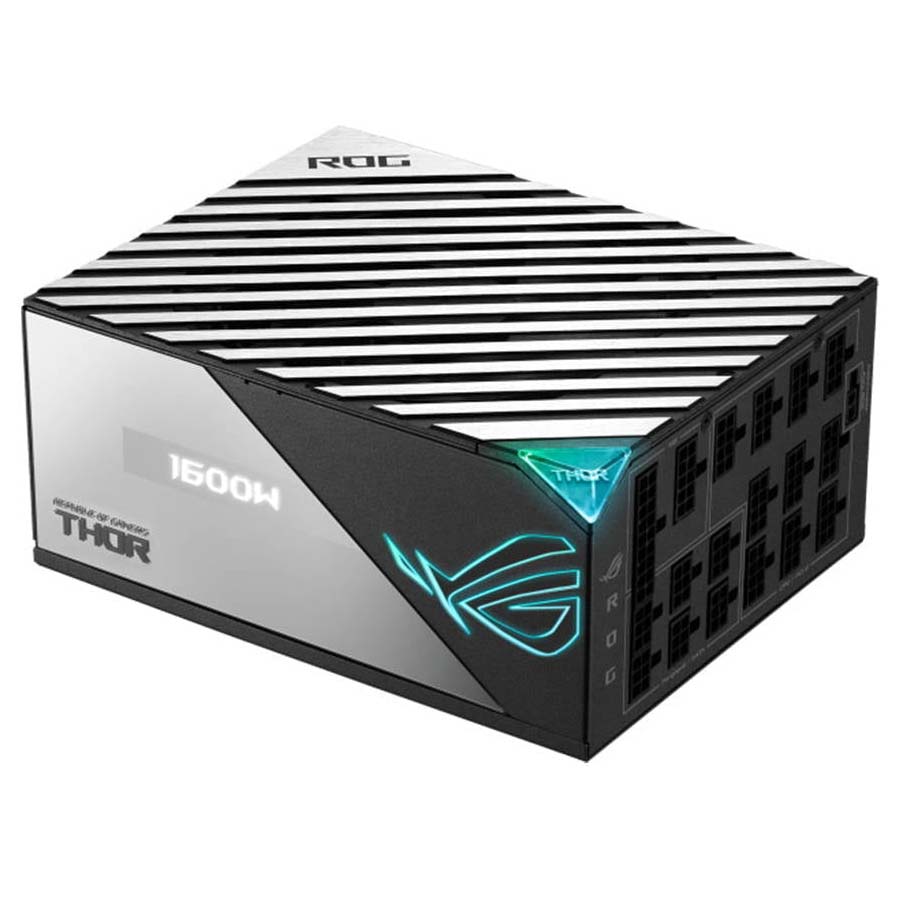

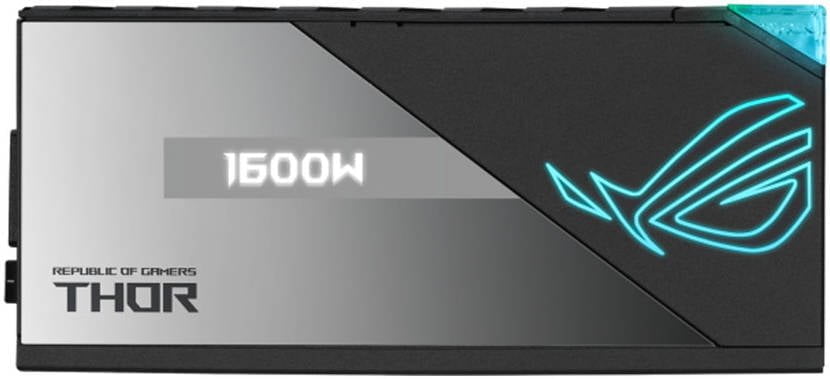

Asus ROG THOR Titanium 1600T Gaming Power Supply

Asus ROG THOR Titanium 1600T Gaming Power Supply

THE QUIETEST 1600W POWER SUPPLY

The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.

Based on Cybenetics PSU test result database entries before October 2021. For more information, please refer here.

Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.

Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Thor to reliably fuel your build for years to come.

ROG-THOR-1600T-GAMING

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Titanium

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 133.3A 0.3A 3A

Combined Load

100W 100W 1600W 3.6W 15W

Total Output

1600W

Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6

Package Contents

ower Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) 16-pin PCI-E Cable x 1 (675mm)

PCI-E 1-to-1 Cable x 6 (675mm) PCI-E 1-to-2 Cable x 2 (675+75mm) SATA 1-to-4 Cable x 3 (400+120+120+120mm)

Peripheral 1-to-2 Cable x3 (450+120mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable

tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1

Weight

2.69kg (single PSU)

AURA SYNC

ARGB

0dB Fan Button

No

Cybenetics Noise Level Certification

A++
