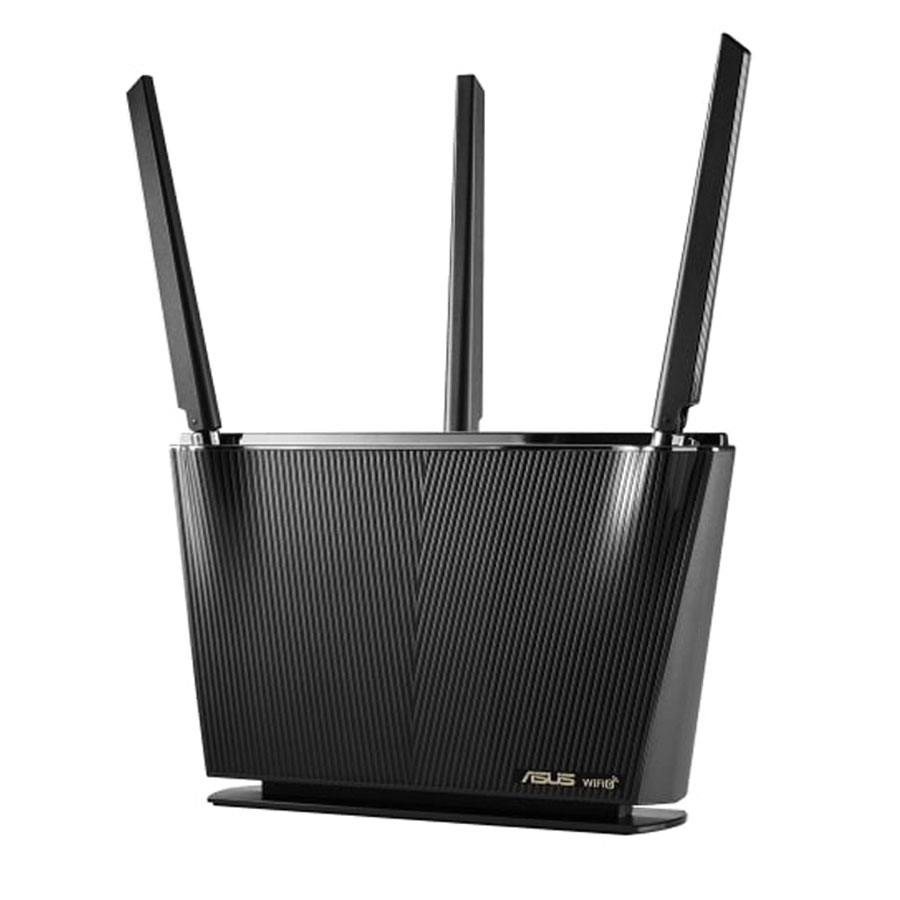

ASUS RT-AX68U AX2700 Dual Band WiFi 6 802.11ax Router
ر.ع.102.00
AX2700 Dual Band WiFi 6 (802.11ax) Router supporting AiProtection Pro network security, Advanced Parental Controls, Mobile Game Mode, WAN aggregation and ASUS Router App for easy setup and management
- High Efficiency WiFi 6 – Enjoy fast speeds up to 2700 Mbps with WiFi 6 (802.11ax)
- Commercial-grade Network Security – Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 to protect your home
- More Privacy, Anywhere – Instant Guard gives you one-click secure internet access via RT-AX68U from anywhere in the world
- Parental Controls for All Ages – Customize settings for different age groups, giving your kids the internet access they need
- ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
Model Name
RT-AX68U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Product Segment
AX2700 ultimate AX performance : 1802 Mbps+ 861 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 450 Mbps
802.11ac : up to 1625 Mbps
802.11ax (2.4GHz) : up to 861 Mbps
802.11ax(5GHz):up to 1802 Mbps
Antenna
External 3
Transmit/Receive
2.4 GHz 3 x 3
5 GHz 3 x 3
Processor
1.8GHz DUAL-CORE processor
Memory
256 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4GHz/5GHz

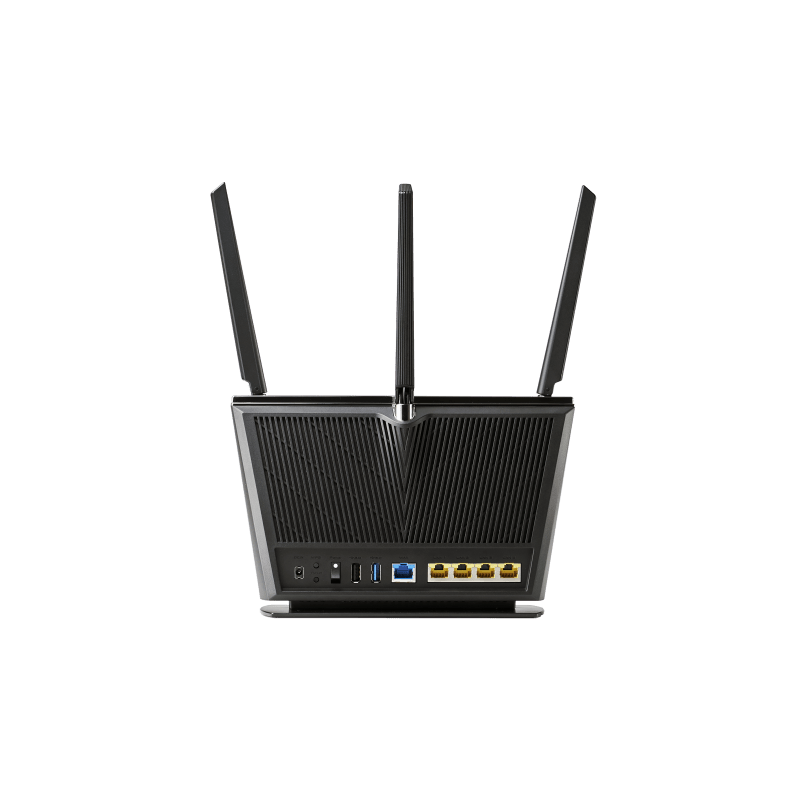

Ports
RJ45 for Gigabits BaseT for WAN x 1、RJ45 for Gigabits BaseT for LAN x 4
USB 3.0*1 USB2.0*1
RJ45 for Gigabits BaseT for WAN x 1?RJ45 for Gigabits BaseT for LAN x 4
USB 3.0*1 USB2.0*1
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power, 2.4GHz/5GHz,WAN,LAN
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V 1.75A current/33W
Product Weight (g)
630 g
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
WTFast : No
Alexa
Support Alexa skil : Yes
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
Administration
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
See more details at asus.com
Additional information
Weight | 2 kg |
---|
