Outstanding flexibility and silence

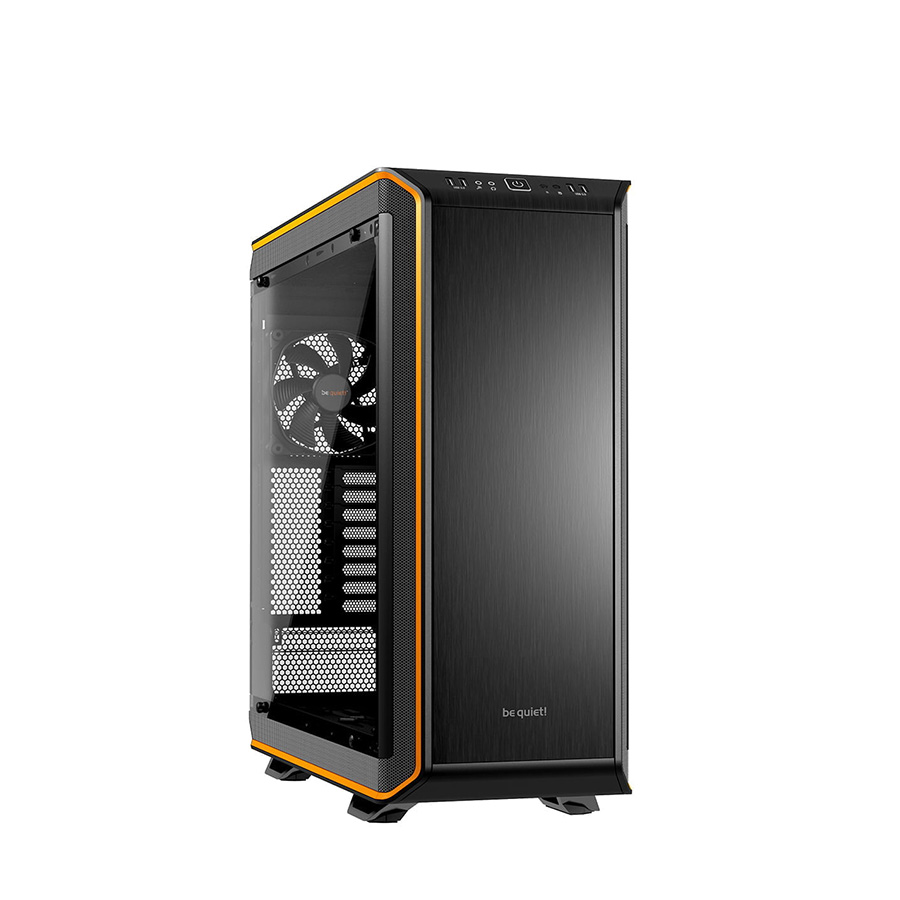

be quiet! Dark Base Pro 900 Orange is the perfect case for all of those who expect the highest standards when it comes to modularity, compatibility and design.
- Relocatable MB-tray with the possibility of an inverse layout
- Repositionable HDD tray with single HDD slots for individual space requirements
- Three virtually inaudible be quiet! SilentWings® 3 140mm PWM fans
- Advanced PWM hub and manual fan controller supports up to four PWM and four 3-pin fans
- Full-circuit airflow system with noise-reducing vents all around the case
- Ready for radiators up to 420mm on top, front, back and base
- Completely sound insulated with decoupled motherboard, PSU and drives
- Fully windowed side panel from tinted and tempered glass
- Eye-catching, freely positionable LED illumination
- Wireless charger for Qi enabled devices (e.g. smart phones)
- Three years manufacturer’s warranty
- German product conception, design and quality control
| Model |
Dark Base Pro 900 Orange |
| PSU form factor |
ATX PS/2 |
| Motherboard compatibility |
E-ATX / XL-ATX / ATX / M-ATX / Mini-ITX |
| Case size excl. stands (L x W x H), (mm) |
– |
| Installation of motherboards with backplate |
✓ |
| Case size incl. stands (L x W x H), (mm) |
577 x 243 x 585 |
| Dimensions side panel window (L x W), (mm) |
479 x 525 |
| Color option |
Orange |
| Weight (kg) |
14.39 |
| USB 2.0 |
2 |
| USB 3.2 Gen. 1 |
2 |
| USB 3.2 Gen. 2 Type C |
– |
| HD Audio I/O |
1 |
| Expansion slots |
8 |
| Fan mounting locations |
10 |
| Qi charger / Quick Charging Option |
✓ |
| Top cover |
ABS / Aluminum |
| Side panel |
ABS / Steel |
| Side panel window |
4mm tempered glass |
| Front panel |
ABS / Aluminum |
| Stands |
ABS |
| 5.25 bays |
2 |
| 3.5 slots (max.) |
7 |
| 3.5 slots (scope of delivery) |
7 |
| 2.5 slots (max.) |
15 |
| 2.5 slots (scope of delivery) |
15 |
| Fan @ top |
– |
| Fan @ front |
2x Silent Wings 3 140mm PWM |
| Fan @ rear |
1x Silent Wings 3 140mm PWM |
| Dimensions (L x W x H), (mm) |
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 |
| Fan speed @ 100% PWM / 12V (rpm) |
1000 |
| Noise level @ 100% PWM / 12V (dB(A)) |
15.5 |
| Airflow @ 100% PWM / 12V (cfm / m3/h) |
59.5 / 101.09 |
| Air pressure @ 100% PWM / 12V (mm H2O) |
1.08 |
| Voltage range (V DC) |
5 – 13.2 |
| Input power (W) |
3.6 |
| Input current (A) |
0.3 |
| Connector |
4-pin |
| Lifespan (h / 25°C) |
300,000 |
| Fan controller |
Manual/PWM stepless fan controller (4x 4-pin / 4x 3-pin) / PWM hub |
| Front (mm) |
1x 140 (w/o ODD cage) |
| Top (mm) |
4x 120 / 3x 140 |
| Bottom (mm) |
2x 120 / 2x 140 |
| Side panel (mm) |
– |
| PSU shroud |
– |
| Front (mm) |
120 / 140 / 240 / 280 / 360 / 420 |
| Top (mm) |
120 / 140 / 180 / 240 / 280 / 360 / 420 |
| Bottom (mm) |
120 / 140 / 280 |
| Rear (mm) |
120 / 140 |
| Max.construction height of CPU cooler unit (mm) |
185 |
| Airflow channel |
Full circuit airflow system |
| RGB LED illumination |
internal |
| LEDs synchronizable with RGB controller/motherboard |
– |
| Expandable RGB controller |
– |
| Maximum dimensions excl. bottom fan (mm) |
284 |
| Maximum dimensions incl. bottom fan (mm) |
150 |
| HDD cage (in height of graphics card) installed (mm) |
323 |
| HDD cage (in height of graphics card) removed (mm) |
472 |
| Top panel insulation mats |
– |
| Front panel insulation mats |
✓ |
| Side panel insulation mats |
✓ |
| Anti-vibration decoupled HDD |
✓ |
| Anti-vibration decoupled fan |
✓ |
| Anti-vibration decoupled PSU |
✓ |
| Anti-vibration decoupled motherboard-tray |
✓ |
| Front |
1 |
| Bottom |
1 |
| Side panel |
1 |
| Screw set (Drives/Motherboard) |
✓ |
| Rubber rail (pcs.) |
– |
| Standoff (pcs.) |
3 (for E-ATX) |
| LCS bracket (pcs). |
1 |
| HDD slot cover (pcs.) |
– |
| Upper fan bracket (pcs.) |
1 |
| HDD panel rubber grommet (pcs.) |
1 |
| SSD bracket for PSU shroud |
– |
| LED strips (pcs.) |
2 |
| Cable ties (pcs.) |
6 (Velcro) |
| Warranty (Years) |
3 |
| International hotline / free of charge |
✓ / DE, FR |
| Article number |
BGW10 |
| EAN code |
4260052184943 |
| Certifications |
CE / RoHS / FCC |
| Dimensions, package (L x W x H), (mm) |
655 x 325 x 680 |
| Gross weight, package (kg) |
16.52 |
| Pieces per packaging unit |
1 |
| RRP (€) |
259.00 |
