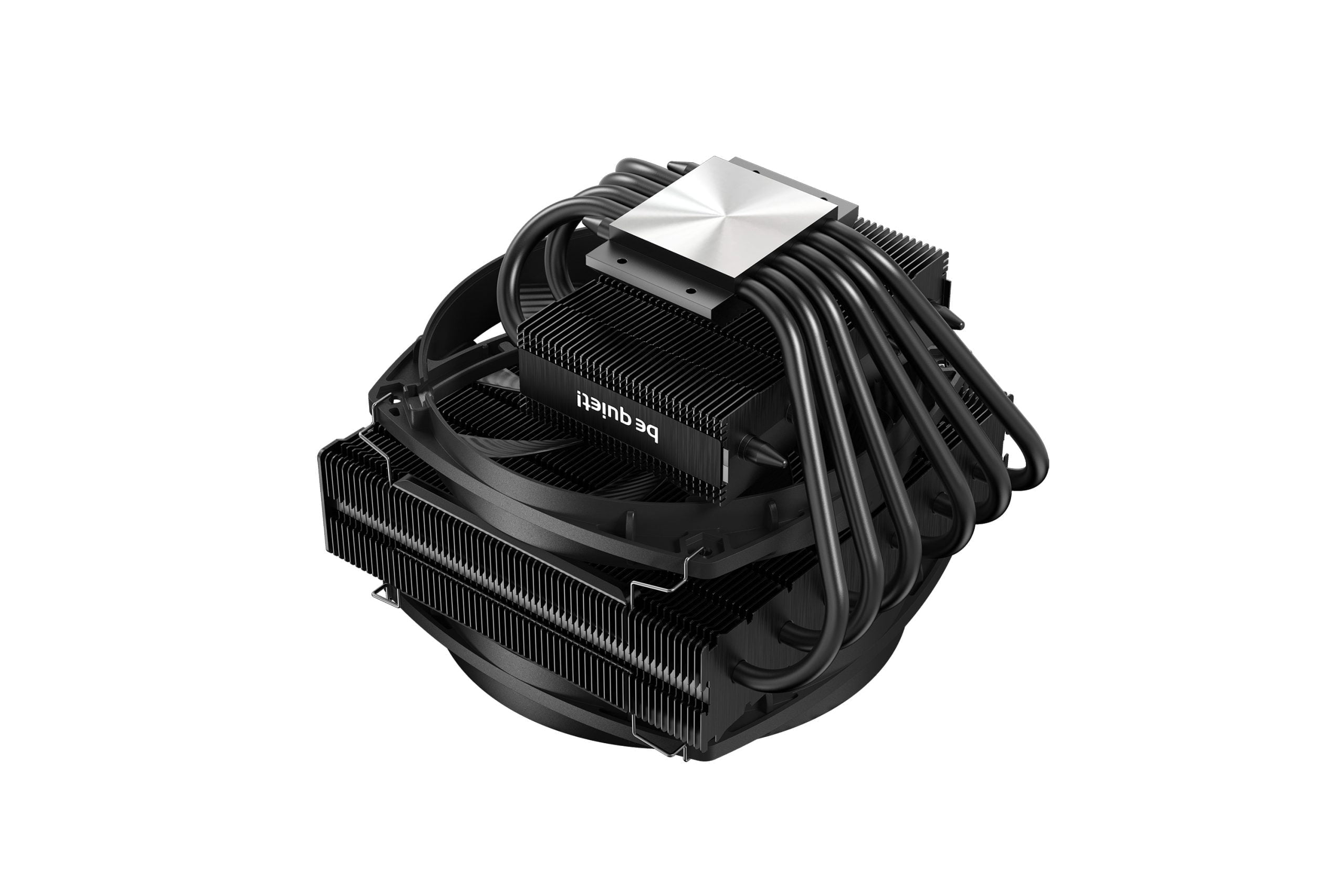

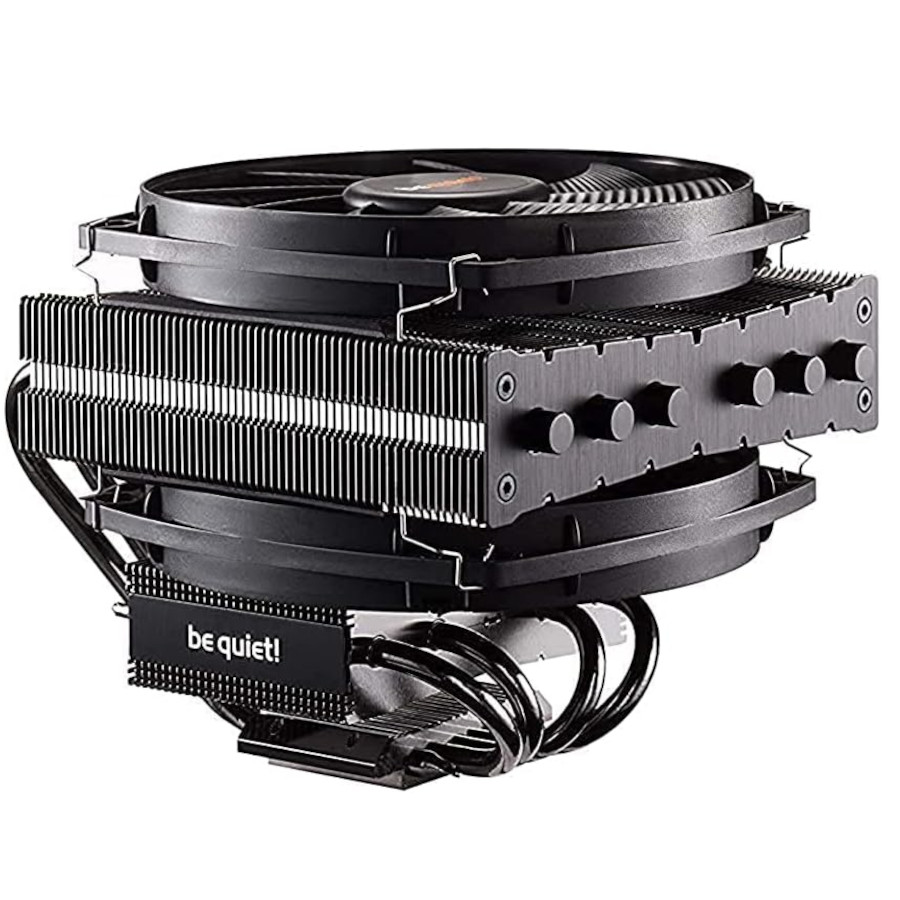

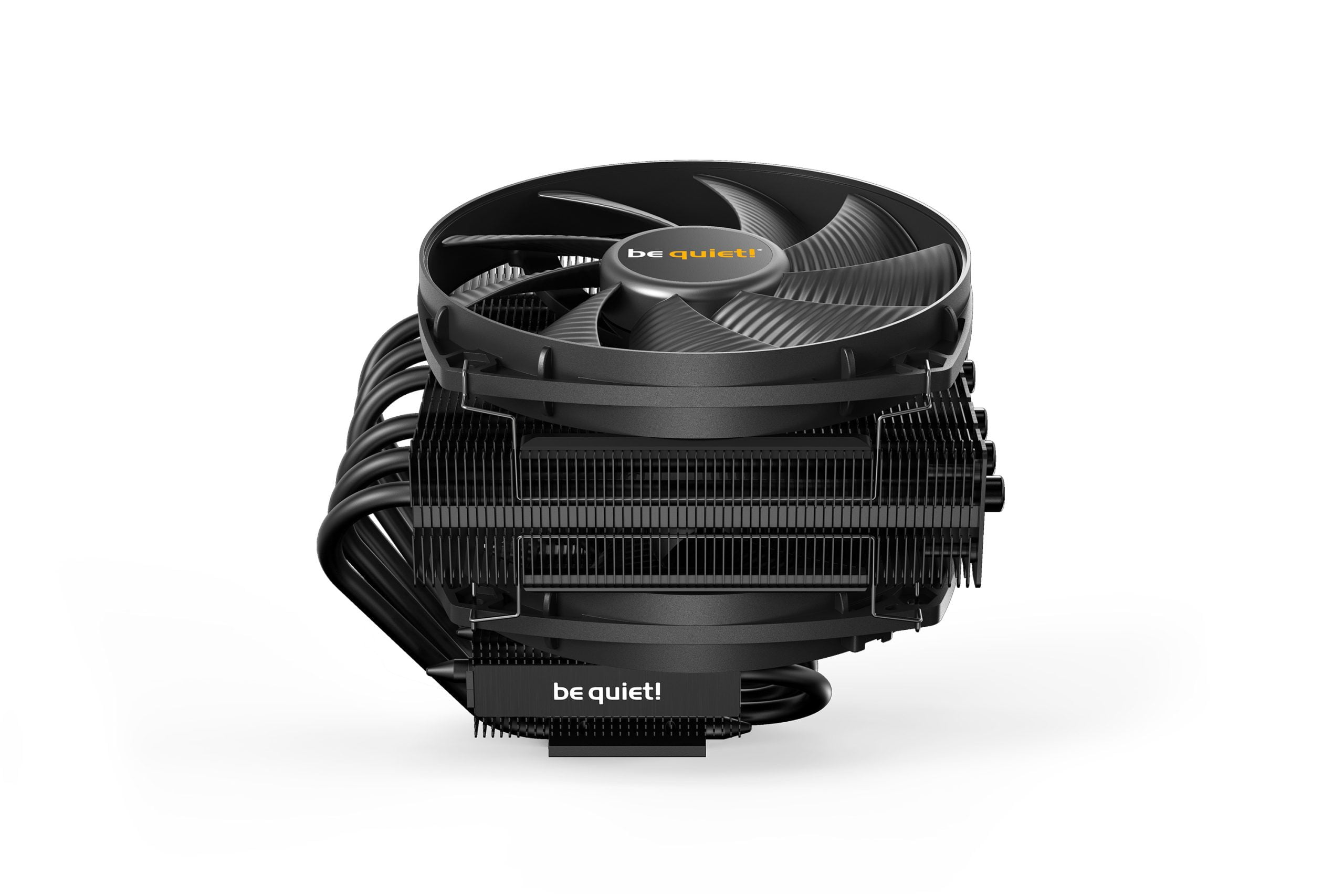

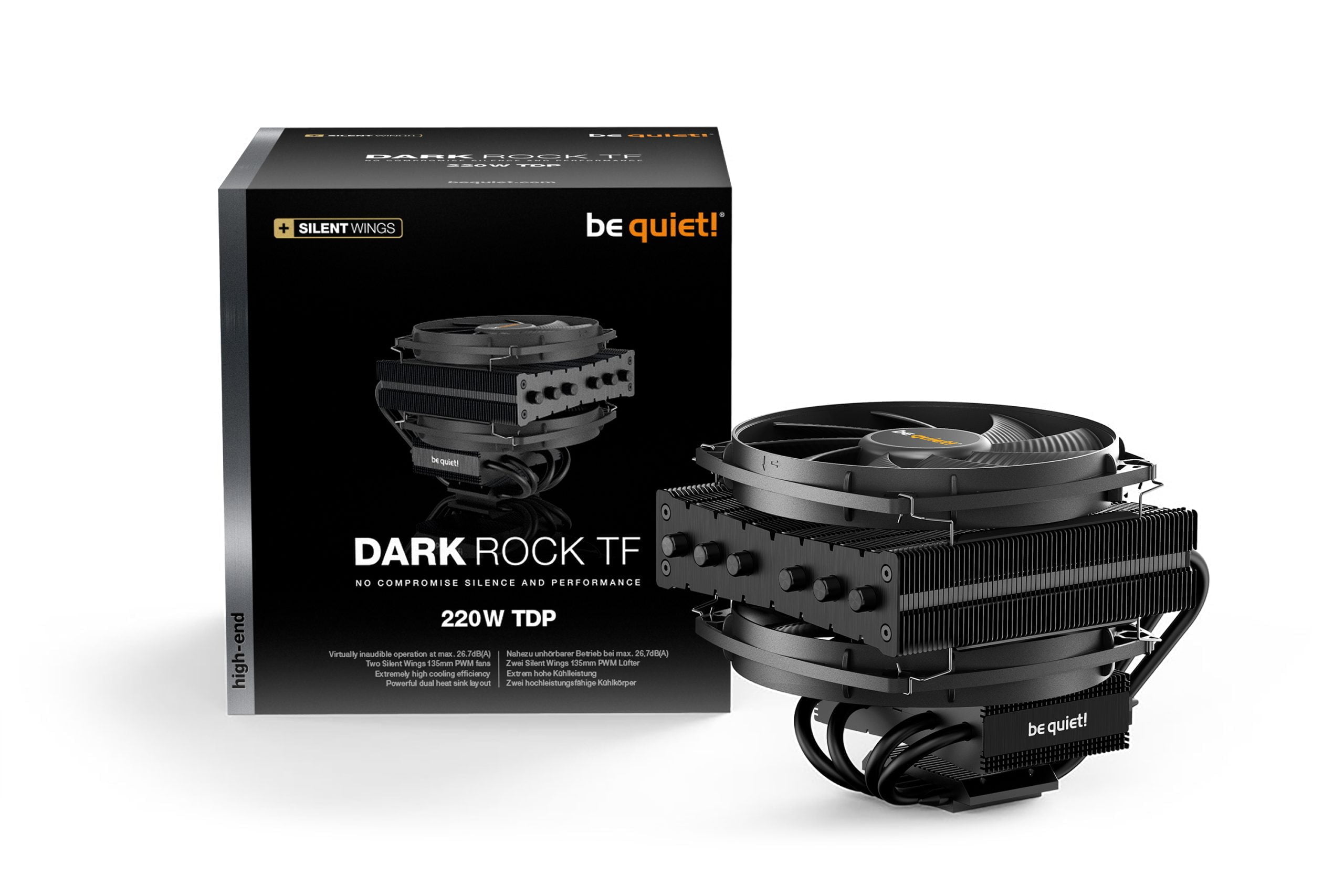

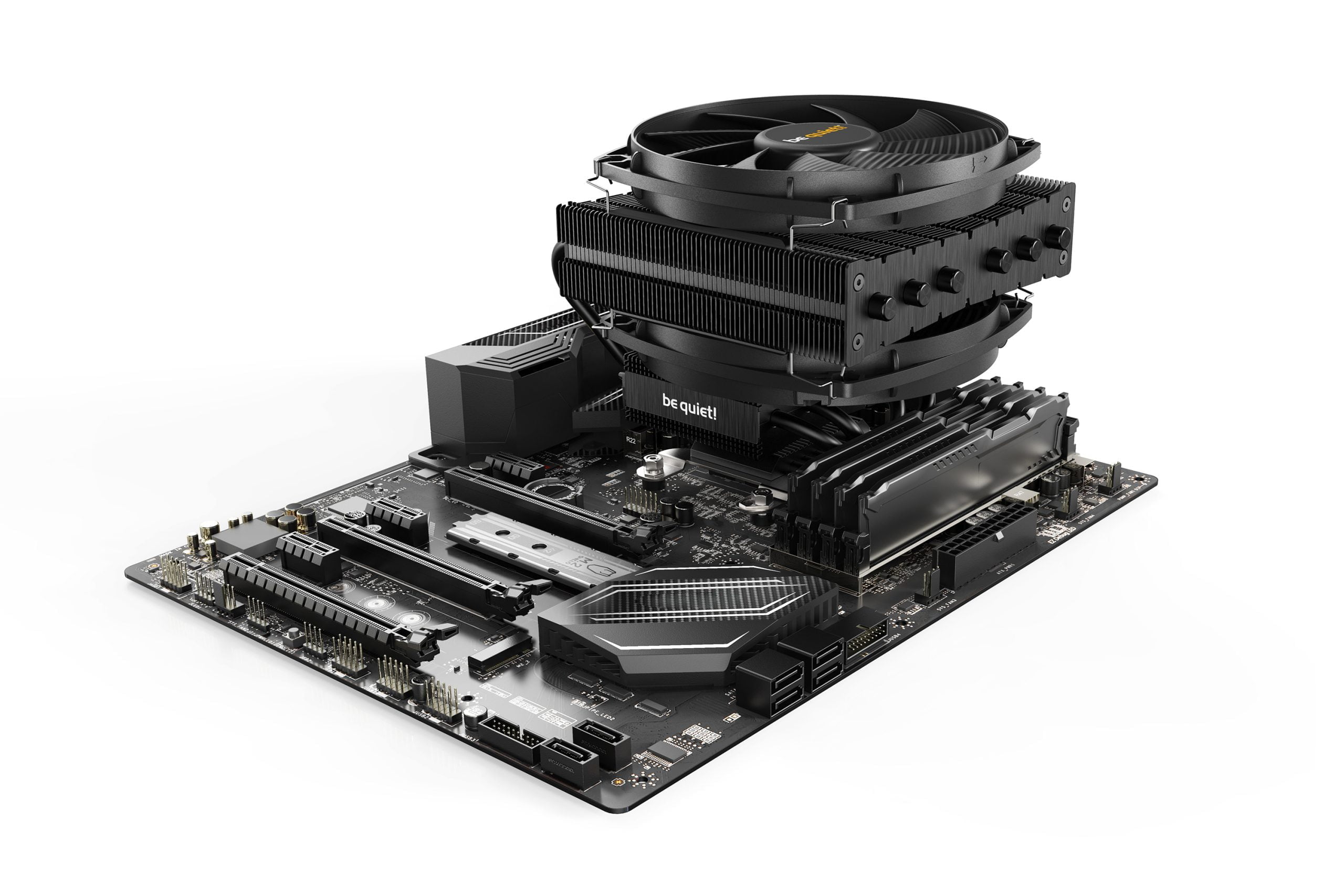

be quiet! DARK ROCK TF BK020
ر.ع.37.00
No Compromise Silence and Performance
One of the hardest things to do in a compact PC is quietly cool a high-performance CPU even in extreme overclocking conditions. The top-flow cooler Dark Rock TF with be quiet!’s famous silent technology offers a solution to this challenge.
Among Dark Rock TF’s superior features:
- Extremely 220W TDP cooling performance
- Contains two heat sinks with anti-vibration rubber inserts
- Six high-performance 6mm heat pipes with aluminum caps
- Two virtually inaudible Silent Wings 135mm PWM fans (max. 26.7dB(A))
- Fans equipped with durable fluid-dynamic bearing and smooth 6-pole motor
- Space-saving single fan assembly also supported
- Special black coating with ceramic particles
- German product conception, design and quality control
Dark Rock TF offers the best performance-to-noise ratio for compact PC systems. It strikes the perfect balance between cooling and serenity with absolutely no compromise in silence and performance.
General data
| Model | Dark Rock TF |
| Overall dimensions without mounting material (L x W x H), (mm) | 163 x 140 x 131 |
| Total weight (kg) | 0.81 |
| TDP (W) | 220 |
| Socket compatibility AMD | AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) |
| Socket compatibility Intel | 1200 / 775 / 1150 / 1151 / 1155 / 1156 / 1366 / LGA2011(-3) Square ILM / 2066 |
| Fan model, number | 2x Silent Wings 135mm PWM |
| Decoupled fan mounting | ✓ |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.9 / 19.3 / 26.7 |
Heatsink specifications
| Dimensions (L x W x H), (mm) | 163 x 140 x 109 |
| Number of fins | top: 62 / bottom: 64 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 6 / 6 |
| Color | Black |
| Surface treatment | Ceramic coating |
Fan specifications
| Fan dimensions (mm) | 135 x 135 x 22 |
| Speed @ 100% PWM /12V (rpm) | 1400 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.11 |
| Input power (W) | 1.32 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 300,000 |

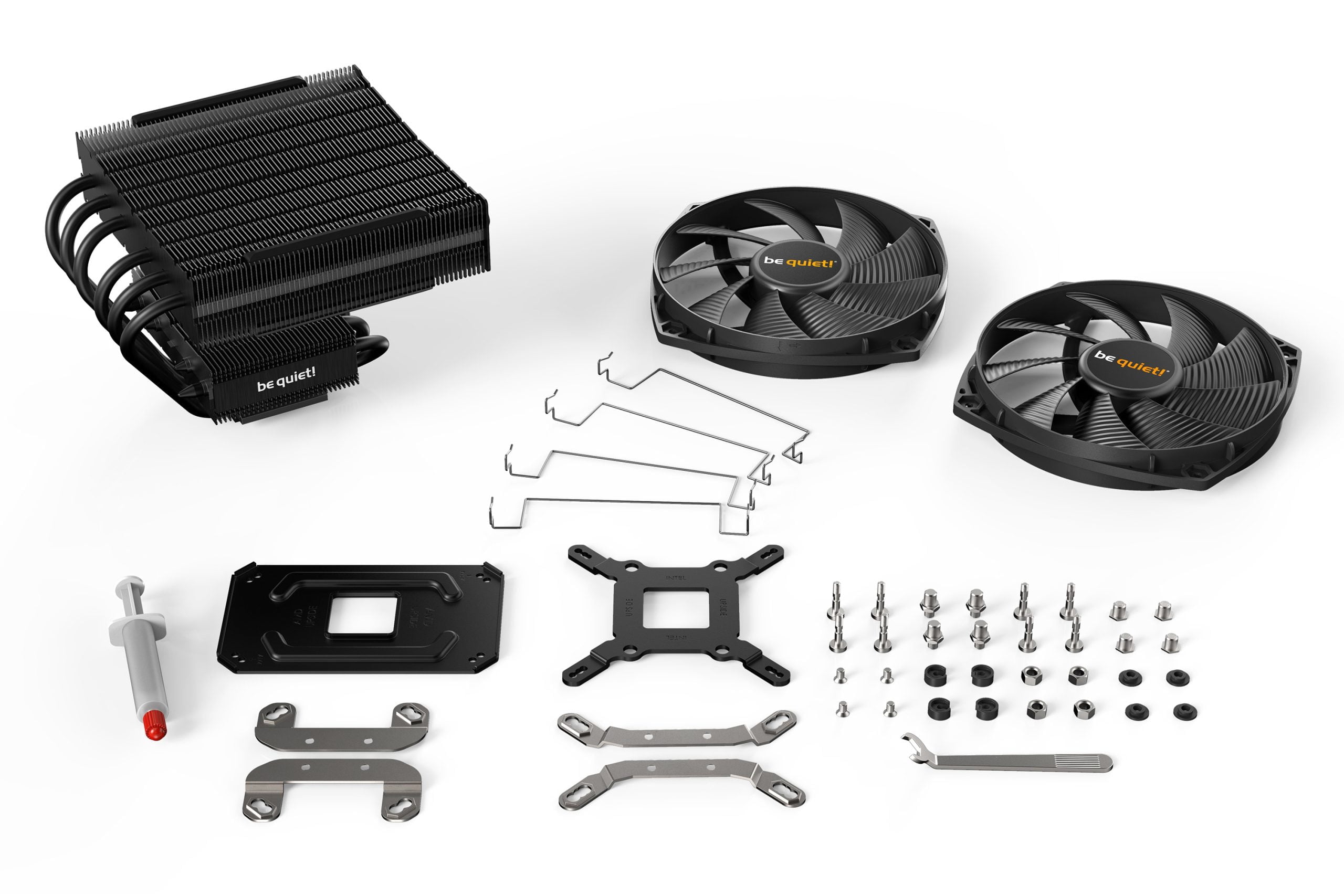

Accessories
| Thermal grease | Included |
| Mounting set | Intel & AMD |
| Y-Cable | ✓ |
| User manual languages | DE, EN, ES, FR, PL, RU |
Logistics data, RRP
| Article number | BK020 |
| EAN code | 4260052184233 |
| Dimensions, package (L x W x H), (mm) | 210 x 190 x 230 |
| Gross weight, package (kg) | 1.5 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 595 x 435 x 450 |
| Gross weight, shipping box (kg) | 20 |
See More Details at bequiet.com
Additional information
| Weight | 1.55 kg |
|---|
