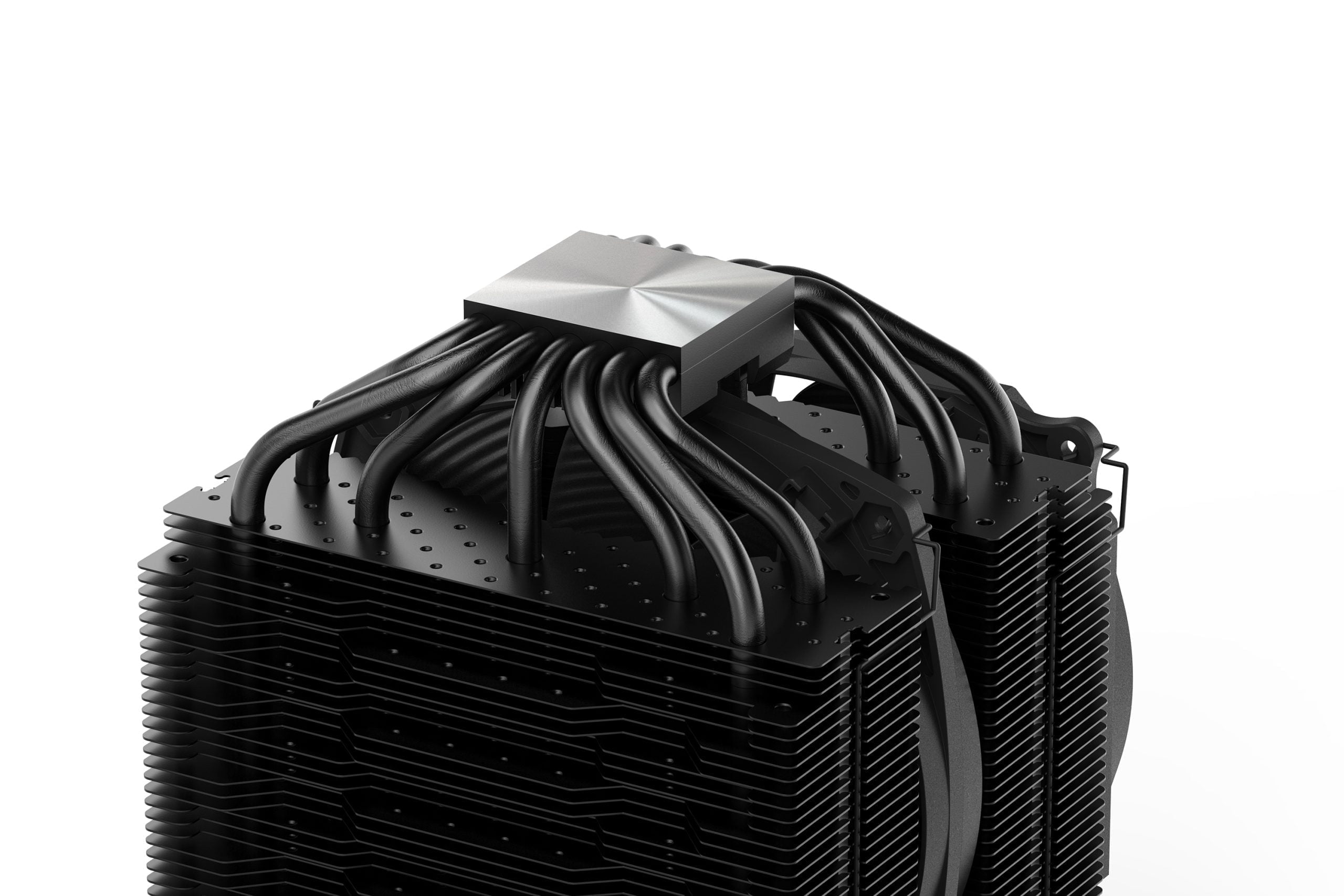

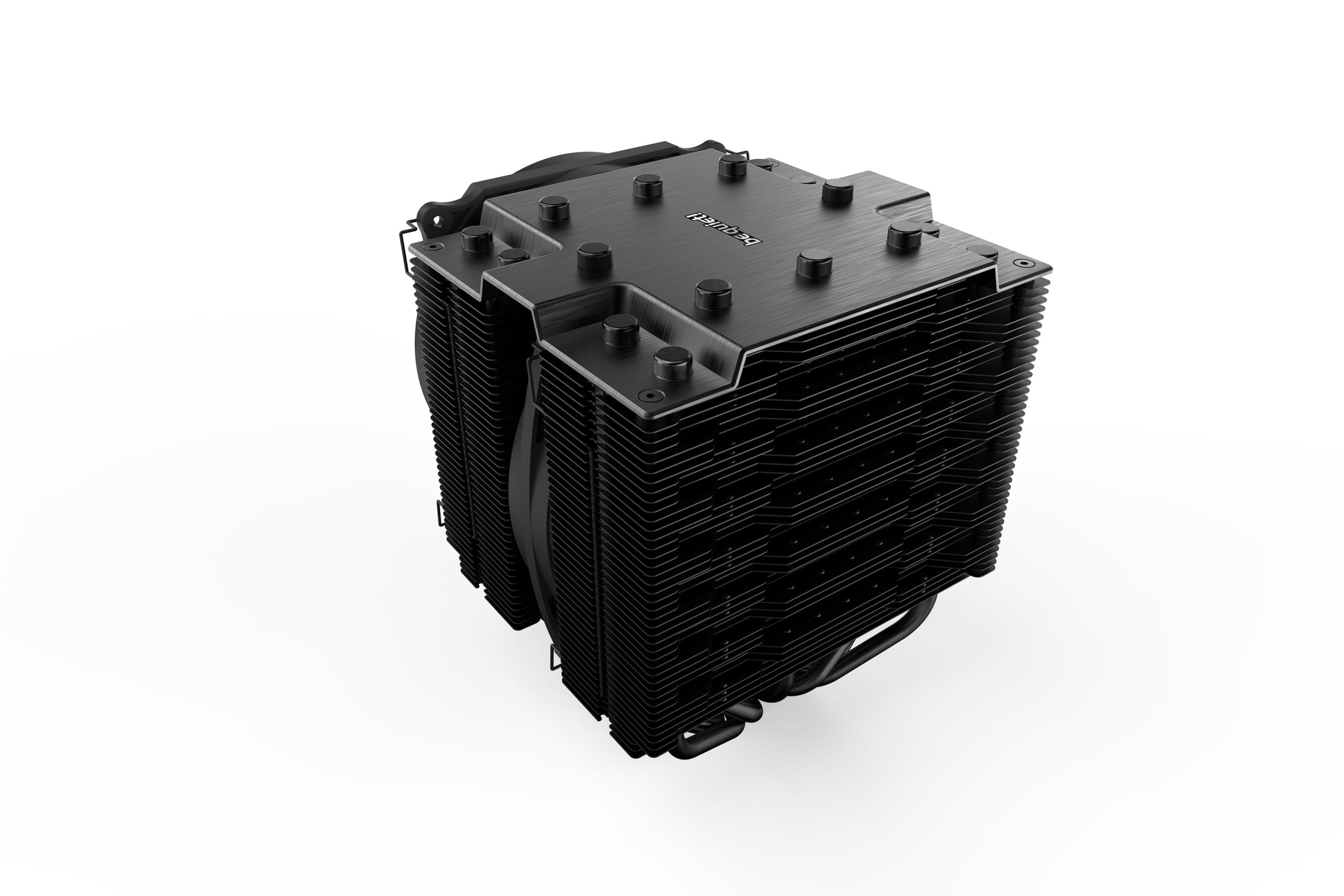

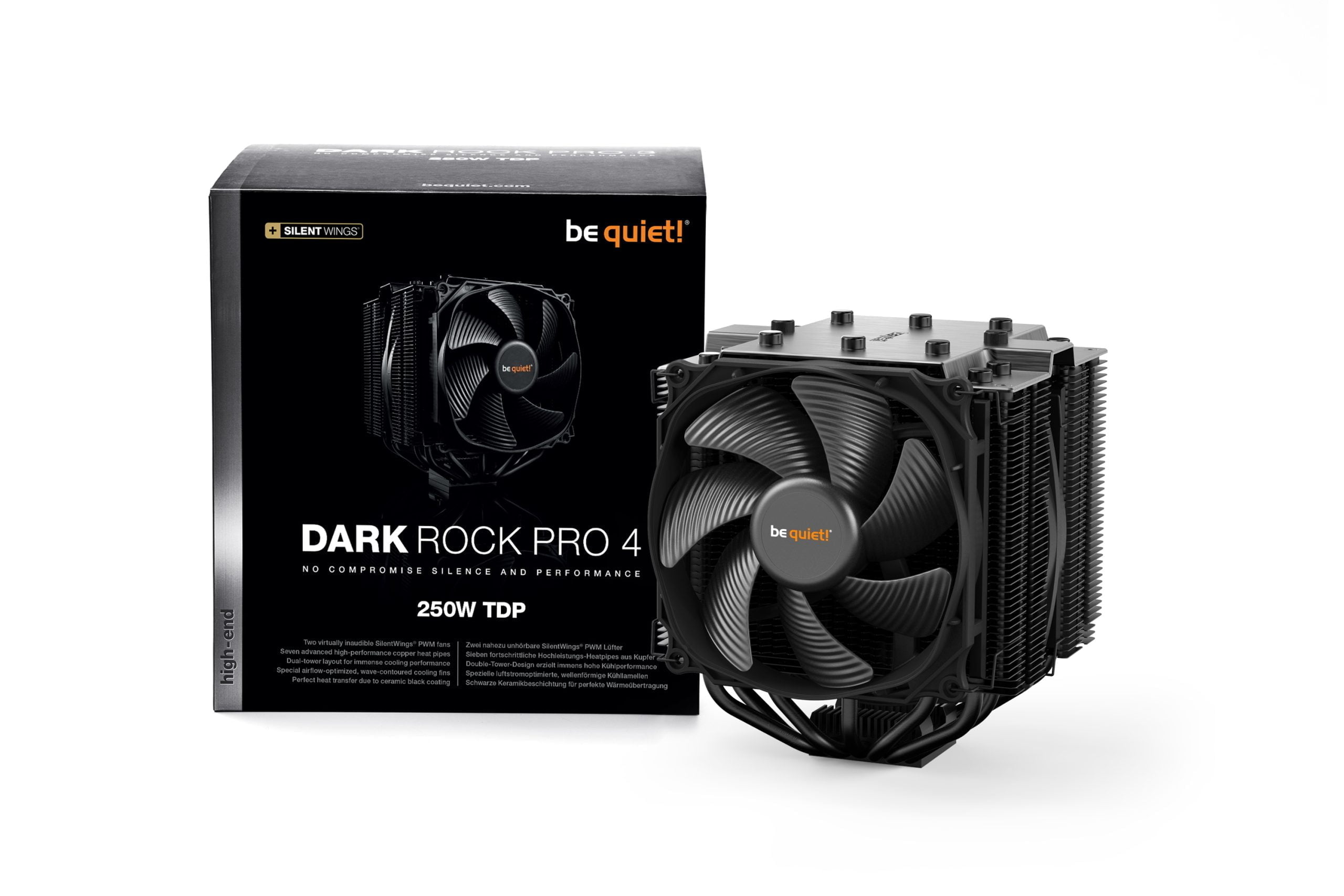

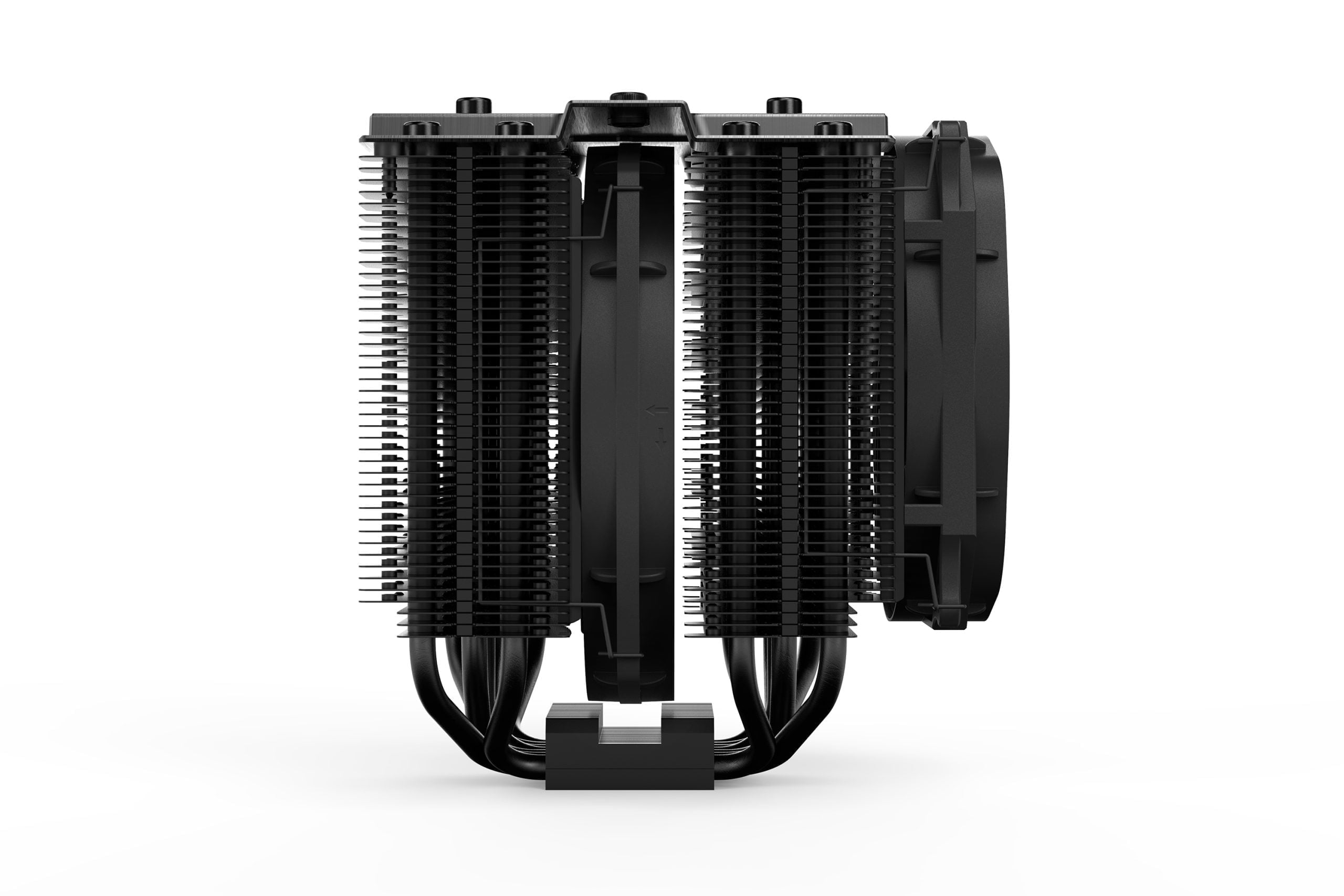

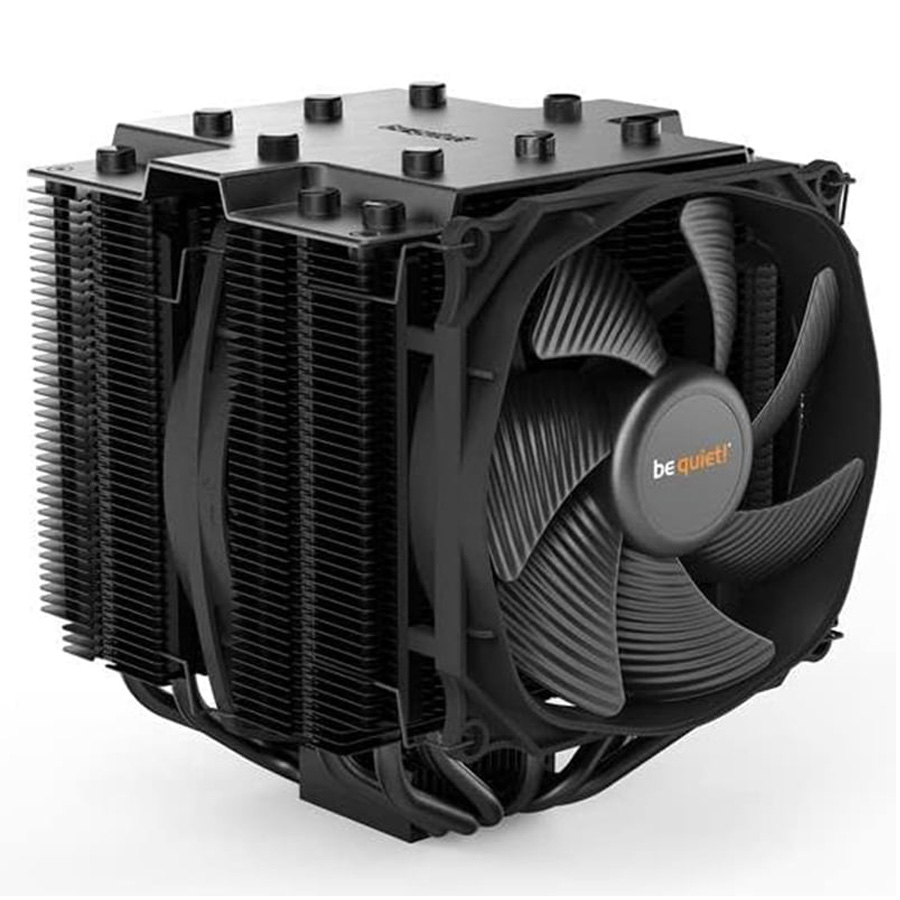

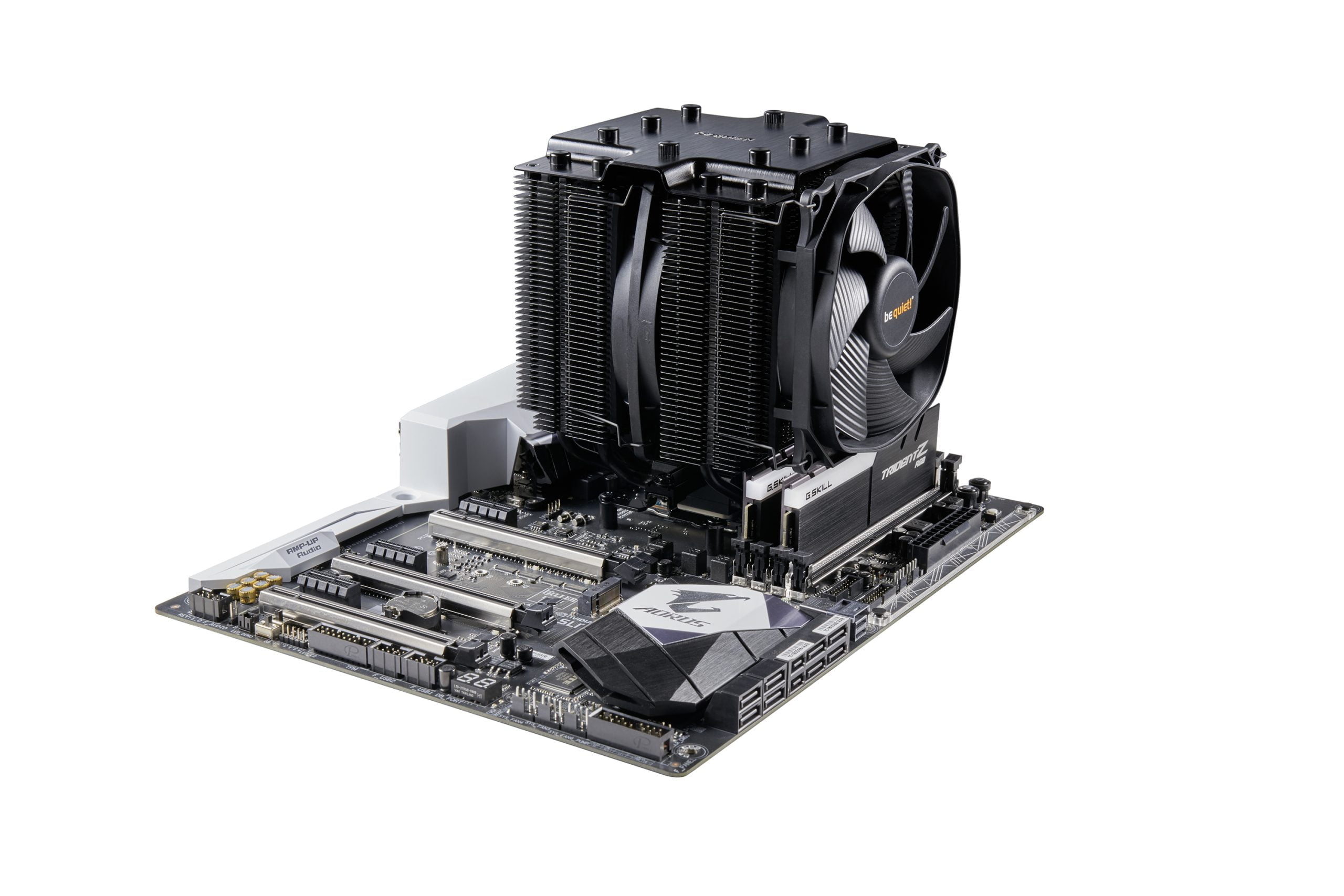

be quiet! DARK ROCK PRO 4 BK022
ر.ع.37.00
No Compromise Silence and Performance
Dark Rock Pro 4 offers immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for overclocked systems and demanding workstations.
- Two Silent Wings PWM fans feature advanced fluid-dynamic bearings and smooth 6-pole motors
- Funnel-shaped frame of the front Silent Wings 3 fan provides extremely high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation
- Cutouts on the cooling fins enhance the RAM compatibility
- Special black coating with ceramic particles enables perfect heat transfer
- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above
- Elegant, brushed aluminum top cover with diamond cut finish
- German product conception, design and quality control
General data
| Model | Dark Rock Pro 4 |
| Overall dimensions without mounting material (L x W x H), (mm) | 146 x 136 x 163 |
| Total weight (kg) | 1.13 |
| TDP (W) | 250 |
| Socket compatibility AMD | AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) |
| Socket compatibility Intel | 1200 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066 |
| Fan model, number | 1x Silent Wings 3 120mm PWM / 1x Silent Wings 135mm PWM |
| Decoupled fan mounting | ✓ |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 12.8 / 17.9 / 24.3 |
Heatsink specifications
| Dimensions (L x W x H), (mm) | 146 x 136 x 163 |
| Number of fins | 90 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Color | Black |
| Surface treatment | Ceramic coating |
Fan specifications
| Fan dimensions (mm) | 135 x 135 x 22 / 120 x 120 x 23 |
| Speed @ 100% PWM /12V (rpm) | 1200 / 1500 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.08 / 0.08 |
| Input power (W) | 0.96 / 0.96 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 / 220 |
| Lifespan (h / 25°C) | 300,000 |

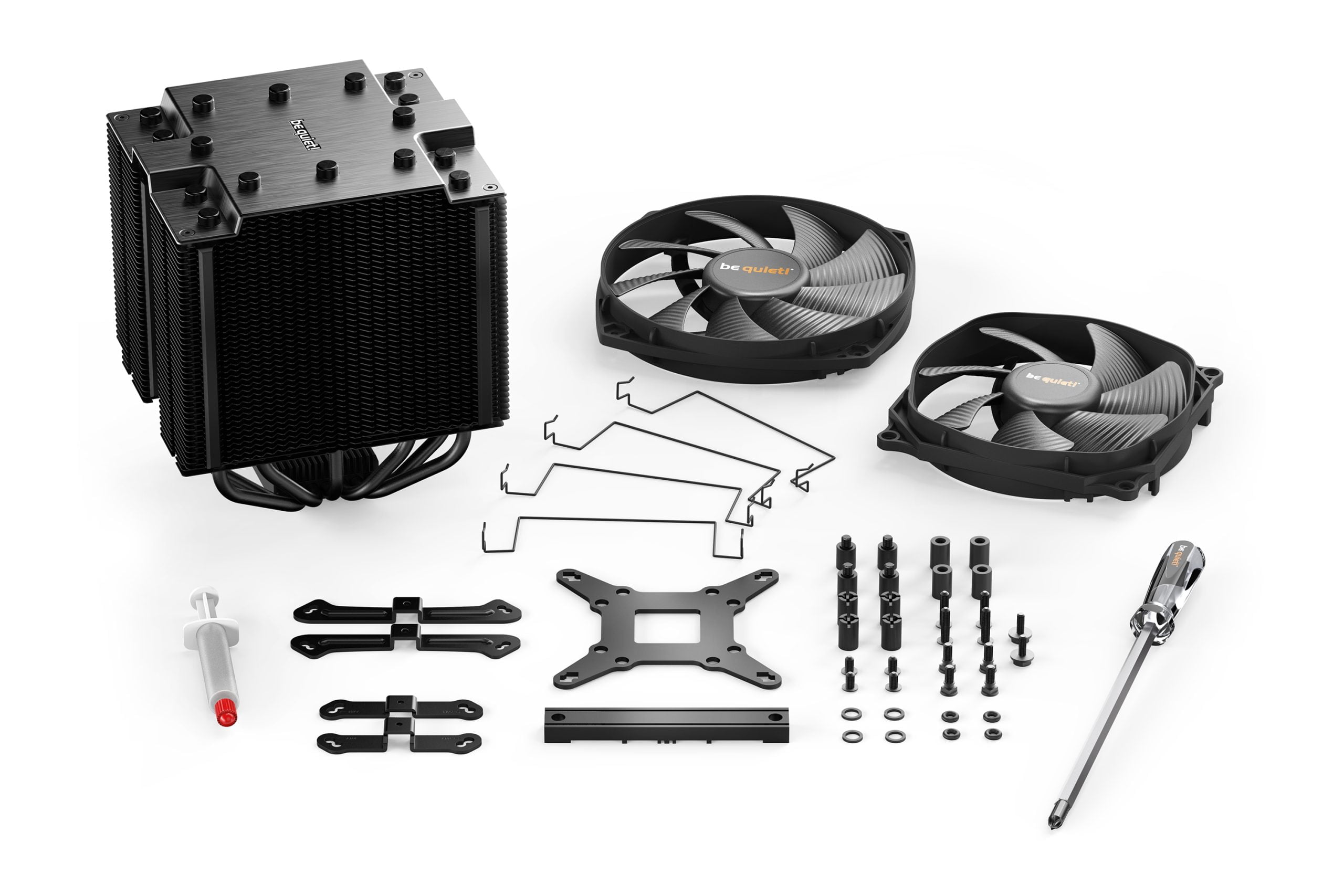

Accessories
| Thermal grease | Included |
| Mounting set | Intel & AMD |
| Y-Cable | ✓ |
| User manual languages | DE, EN, ES, FR, PL, RU |
Logistics data, RRP
| Article number | BK022 |
| EAN code | 4260052186268 |
| Dimensions, package (L x W x H), (mm) | 181 x 205 x 212 |
| Gross weight, package (kg) | 1.39 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 427 x 561 x 459 |
| Gross weight, shipping box (kg) | 22.1 |
See More Details at bequiet.com
