No Compromise Silence and Performance
be quiet! Silent Wings 3 120mm PWM stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.
- Virtually inaudible operation at max. 16.4dB(A)
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing enables super-long life span up to 300,000h
- Rubberized fan frame with funnel-shaped air inlets for extremely high air pressure
- Seven fan blades with optimized surface structures ensure excellent airflow

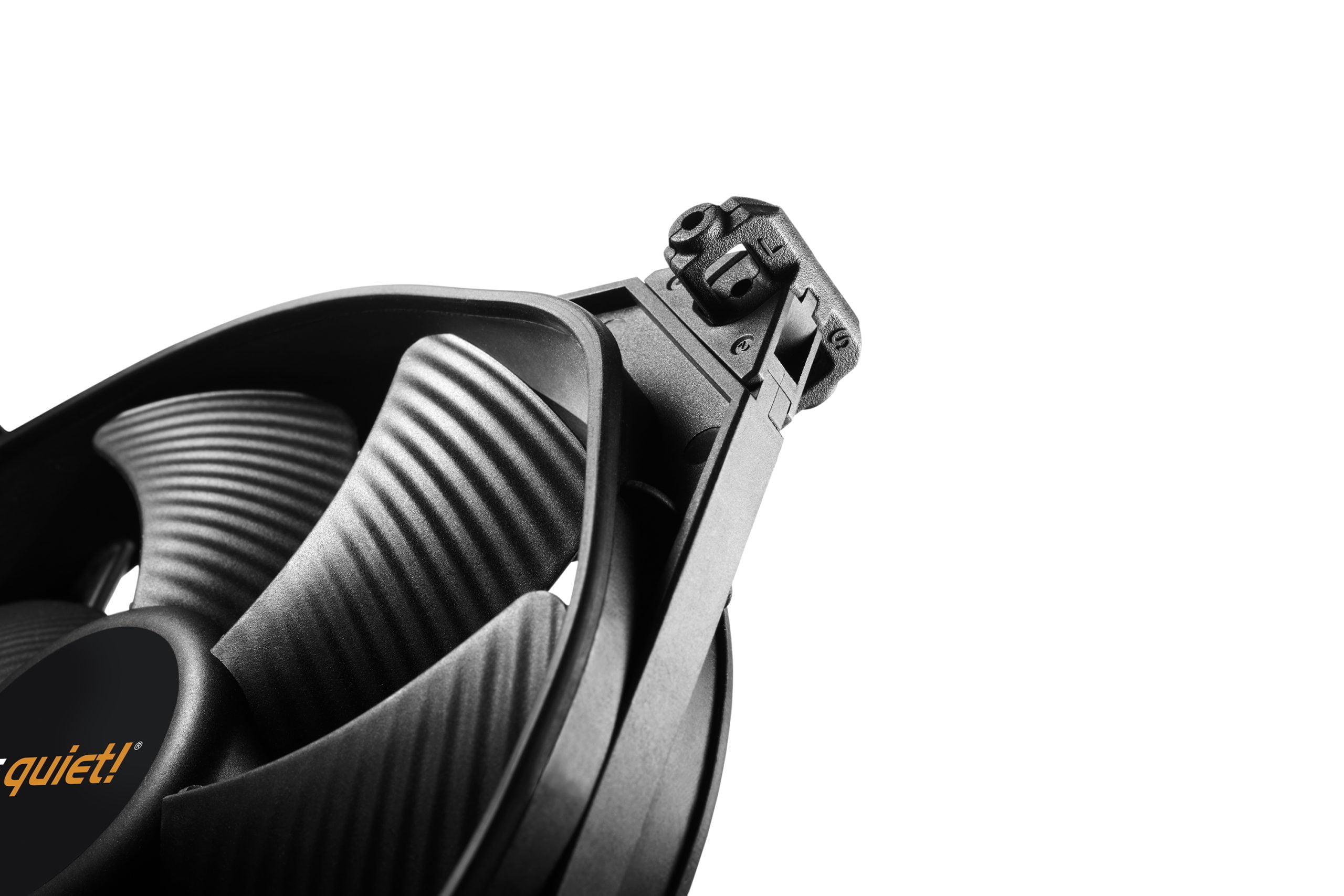

- Removable anti-vibration mountings reduce transmission of vibrations
- PWM controlled fan speed by the motherboard
- German product conception, design and quality control
Silent Wings 3 PWM fans are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
| Model | Silent Wings 3 120mm PWM |
| Dimensions (mm) | 120 |
| +SilentWings | ✓ |
| Fan speed @ 100% PWM / 12V (rpm) | 1450 |
| Air flow @ 100% PWM / 12V (cfm / m3/h) | 50.5 / 85.8 |
| Air pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 16.4 |
| Color option | Black |
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Weight incl. fixed cables (kg) | 0.137 |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
| Air flow @ 100% PWM / 12V (cfm / m3/h) | 50.5 / 85.8 |
| Air pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 16.4 |
| Lifespan (h / 25°C) | 300,000 |
| Rated voltage DC (V) | 12 |
| Operating voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.12 |
| Input power (W) | 1.44 |
| 3-pin to 4-pin 12V-connector | – |
| 12V to 7V adapter | – |
| 12V to 5V adapter | – |
| Screws | 5 |
| Push pins | 5 |
| Silica gel washer | 5 |
| Others | Rubber & hard plastic mountings |
| Approvals | CE / RoHS / WEEE / RU / Tüv |
| Article number | BL066 |
| EAN code | 4260052184264 |
| Dimensions, package (L x W x H), (mm) | 191 x 141 x 31 |
| Gross weight, package (kg) | 0.308 |
| Pieces per packaging unit | 40 |
| Dimensions, shipping box (L x W x H), (mm) | 417 x 372 x 325 |
| Gross weight, shipping box (kg) | 13.41 |
| |
See More Details at bequiet.com
