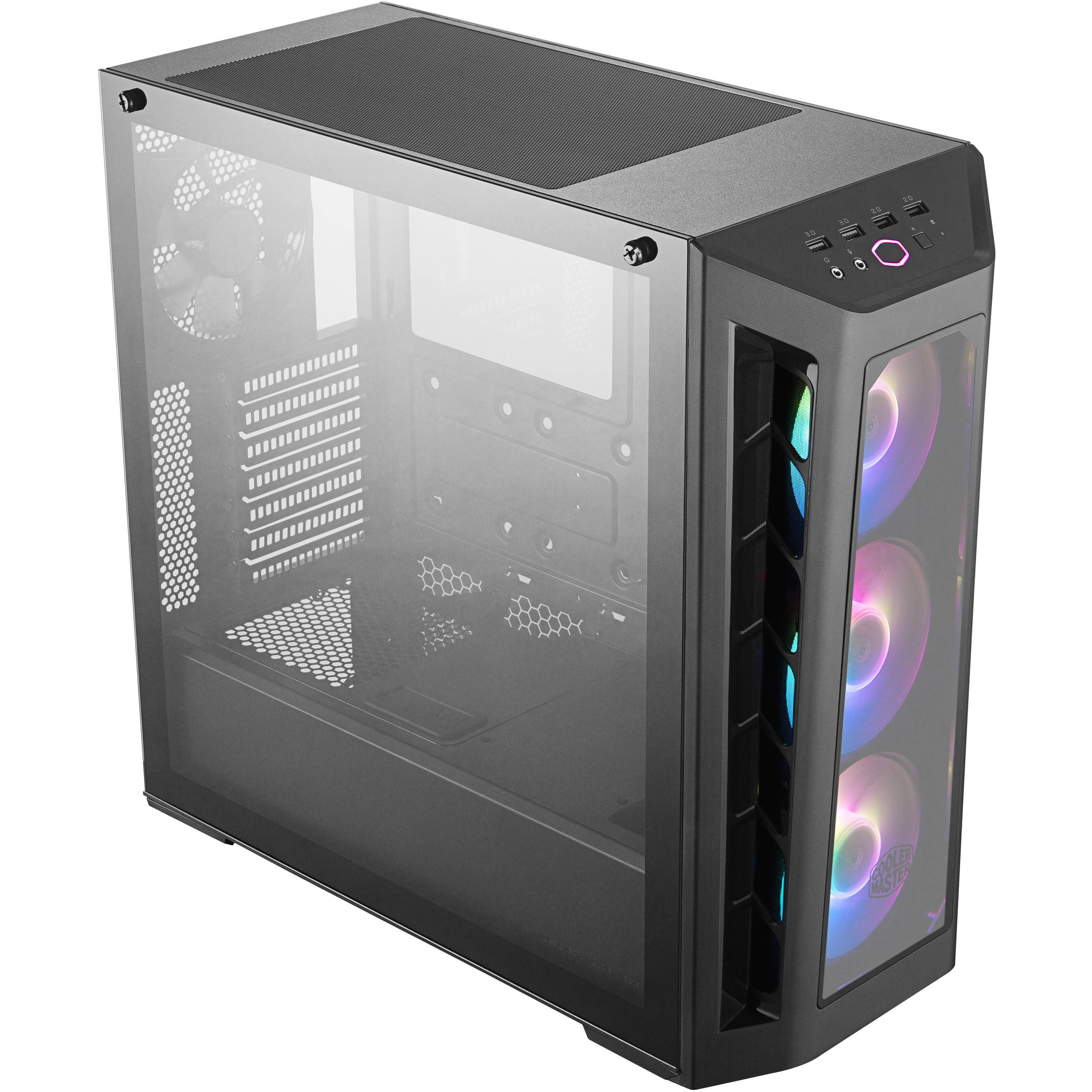

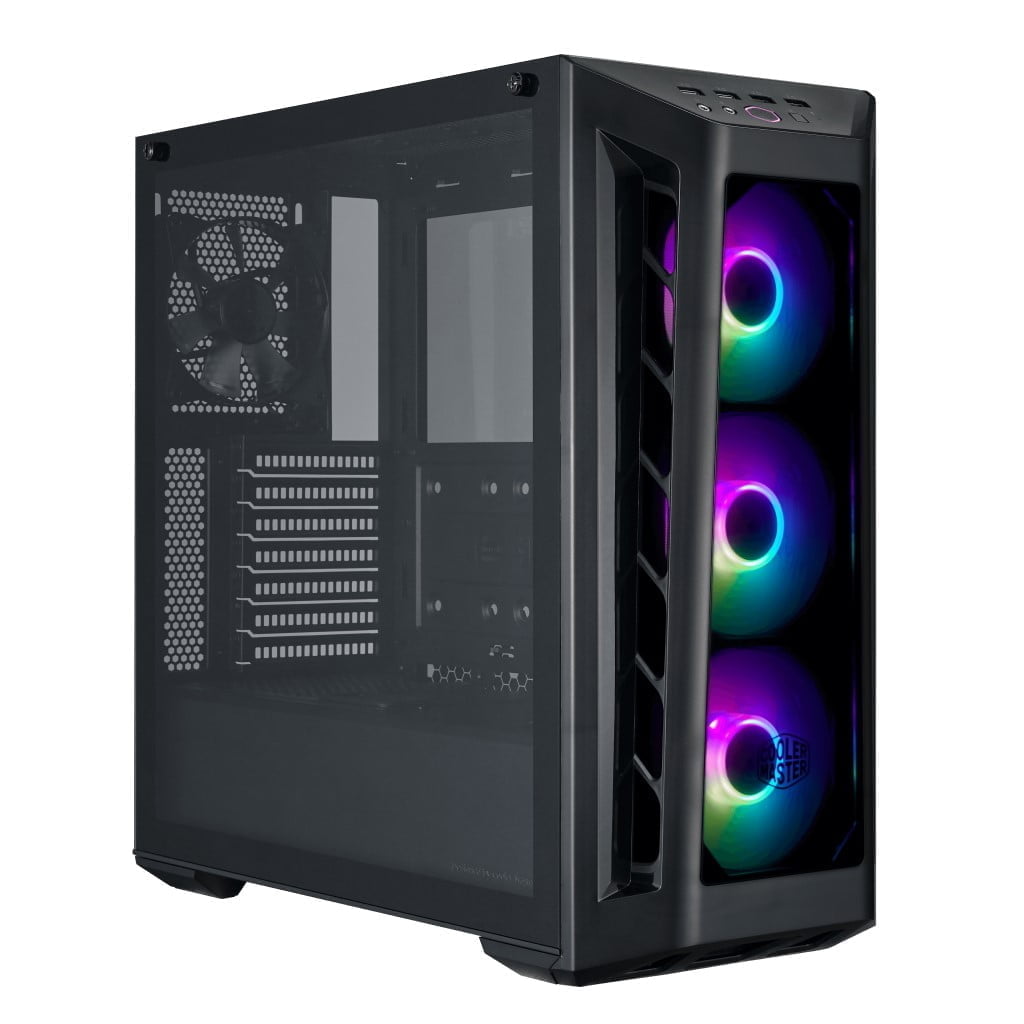

MASTERBOX MB530P
3 TEMPERED GLASS PANELS
The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.
CABLE COVER AND ROUTING SPACE
A PSU shroud1, cable cover2, and 18~25mm width of space3 behind the motherboard provides options to keep systems clean;
GFX cables can also be routed directly through the PSU shroud rubber grommet4
SICKLEFLOW PWM FANS INCLUDED
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
Specifications:
| Model Number |
MCB-B530P-KHNN-S01 |
|
|
|
|
| Materials |
Steel, Plastic, Tempered Glass |
|
| Dimensions (L x W x H) |
489 x 229 x 469mm |
|
| Motherboard Support |
ATX, Micro ATX, Mini ITX |
|
|
|
|
|
|
|
| I/O Panel |
2x USB 3.0, 2x USB 2.0, Audio In & Out (Supports HD Audio) |
|
| ARGB Cable |
1 to 3 ARGB Splitter cable included |
|
| Pre-installed Fans – Front |
3x 120mm 650~1800RPM SickleFlow PWM ARGB |
|
| Pre-installed Fans – Rear |
1x 120mm 1000-1400RPM MasterFan Lite |
|
| Fan Support – Front |
3x 120mm, 2x 140mm |
|
| Fan Support – Top |
3x 120mm, 2x 140mm |
|
| Radiator Support – Rear |
120mm |
|
| Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support – Top |
120mm, 240mm |
|
| Clearance – CPU Cooler |
165mm/6.49″ |
|
| Clearance – GFX |
410mm/16.1″ |
|
| Clearance – PSU |
180mm/7.1″ |
|
| Cable Routing – Behind Motherboard Tray |
18-25mm |
|
| Dust Filters |
Front, Top, Bottom |
|
| Power Supply Support |
Bottom Mount, ATX |
|
|
|
|
|
