MASTERBOX 540
ARGB ETHER FRONT PANEL

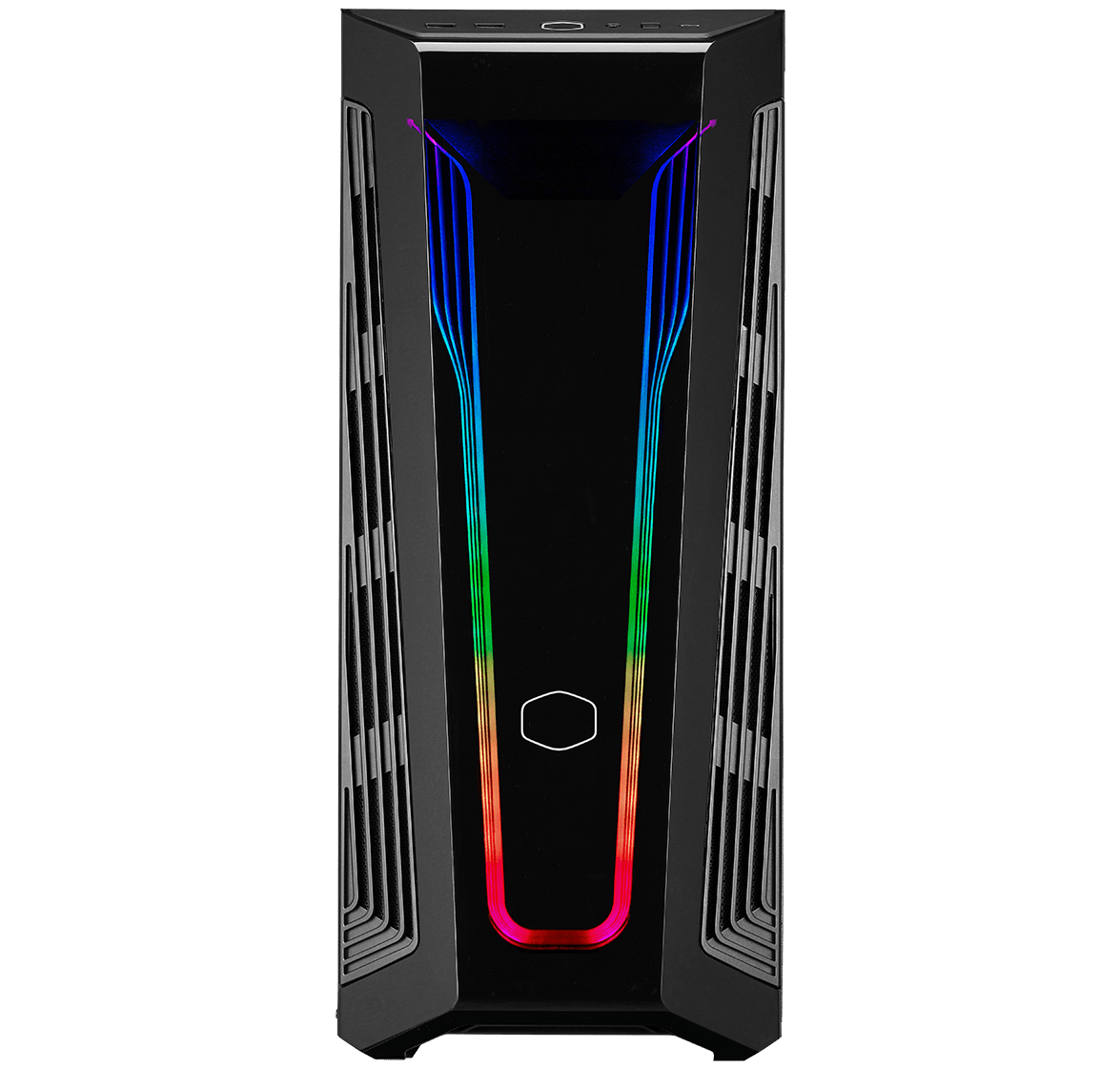

Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser.
This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination.
ARGB ETHER FRONT PANEL
Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser.
This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access to the components during assembly.
Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Specifications:
| Model Number |
MB540-KGNN-S00 |
|
|
|
|
|
|
|
|
| Materials |
Steel, Mesh, Plastic, Tempered Glass |
|
| Dimensions (L x W x H) |
499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions) |
|
| Volume |
51.87L (exlc. Protrusions) |
|
| Motherboard Support |
Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature) |
|
|
|
|
|
| 2.5″ / 3.5″ Drive Bays (combo) |
2 |
|
|
|
| I/O Panel |
2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button |
|
| Pre-installed Fans – Top |
N/A |
|
| Pre-installed Fans – Front |
N/A |
|
| Pre-installed Fans – Rear |
1x 120mm 650~1800RPM SickleFlow PWM ARGB |
|
| Fan Support – Top |
3x 120mm, 2x 140mm |
|
| Fan Support – Front |
3x 120mm, 2x 140mm |
|
| Fan Support – Rear |
1x 120mm |
|
| Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
| Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support – Rear |
120mm |
|
| Clearance – CPU Cooler |
165mm/6.49″ |
|
| Clearance – PSU |
180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed) |
|
| Clearance – GFX |
410mm/16.1″ |
|
| Dust Filters |
Top, Front, Bottom |
|
|
|
