MASTERBOX TD500 MESH / MESH WHITE
Polygonal Mesh
Crystalline Tempered Glass
Triple ARGB Fans
Dual 360mm Radiator Support
Versatile Cooling Options
Room For Upgrades
OVERVIEW
AWARDS
GALLERY
SPECIFICATIONS
FIND A STORE
BUY NOW
Airflow in an Art Form
AIRFLOW IN AN ART FORM

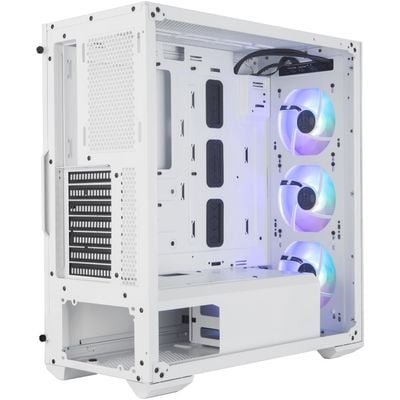

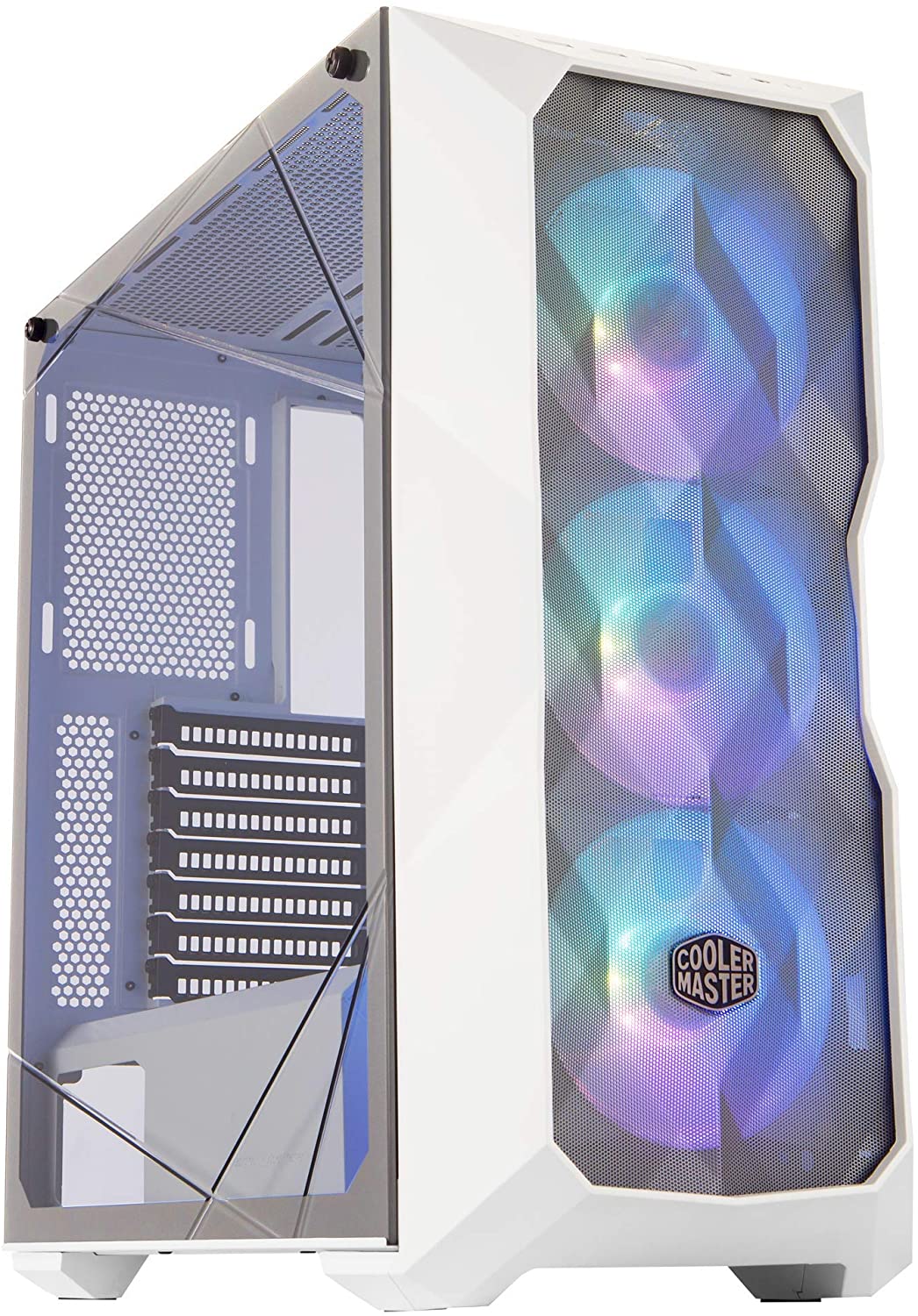

The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.
Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.
POLYGONAL MESH
Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
ROOM FOR UPGRADES
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
SICKLEFLOW PWM FANS INCLUDED
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
Specifications:
Model Number |
MCB-D500D-KGNN-S01 (Mesh w/ controller), MCB-D500D-KGNN-S00 (Mesh w/o controller), MCB-D500D-WGNN-S01 (Mesh White w/ controller), MCB-D500D-WGNN-S00 (Mesh White w/o controller) |
|
|
|
|
Materials |
Steel, Plastic, Tempered Glass, Mesh |
|
Dimensions (L x W x H) |
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions) |
|
|
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features) |
|
|
|
2.5″ / 3.5″ Drive Bays (combo) |
2 |
|
2.5″ Drive Bays |
4 (2+2 combo) |
|
I/O Panel |
2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model) |
|
Pre-installed Fans – Top |
N/A |
|
Pre-installed Fans – Front |
3x 120mm 650~1800RPM SickleFlow PWM ARGB |
|
Pre-installed Fans – Rear |
N/A |
|
Fan Support – Top |
3x 120mm, 2x 140mm |
|
Fan Support – Front |
3x 120mm, 2x 140mm |
|
Fan Support – Rear |
1x 120mm |
|
Radiator Support – Top |
120mm, 240mm, 360mm, (44mm max motherboard component height) |
|
Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support – Rear |
120mm |
|
Clearance – CPU Cooler |
165mm/6.49″ |
|
Clearance – PSU |
180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed) |
|
Clearance – GFX |
410mm/16.1″ |
|
|
Dust Filters |
Top, Bottom, Front |
|
Power Supply Support |
Bottom Mount, ATX |
|
