Next-Gen Wi-Fi — 802.11ax

The AX200 arrives in an M.2 2230 form factor, supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). The module supports MU-MIMO, 2×2 TX/RX channels with two antennae and Bluetooth 5. In addition to Windows 10 and Google Chrome OS, there’s also Linux support, enabled in the Linux 5.1 kernel.

The fenvi Dual Band Wireless-AX AX200 Desktop Kit includes:

fenvi Dual Band Wireless-AX AX200 adapter

Optimized external antenna (2)

Standard sized mounting bracket with RF cables installed

Low profile mounting bracket

Installation guide

Basic requirements:

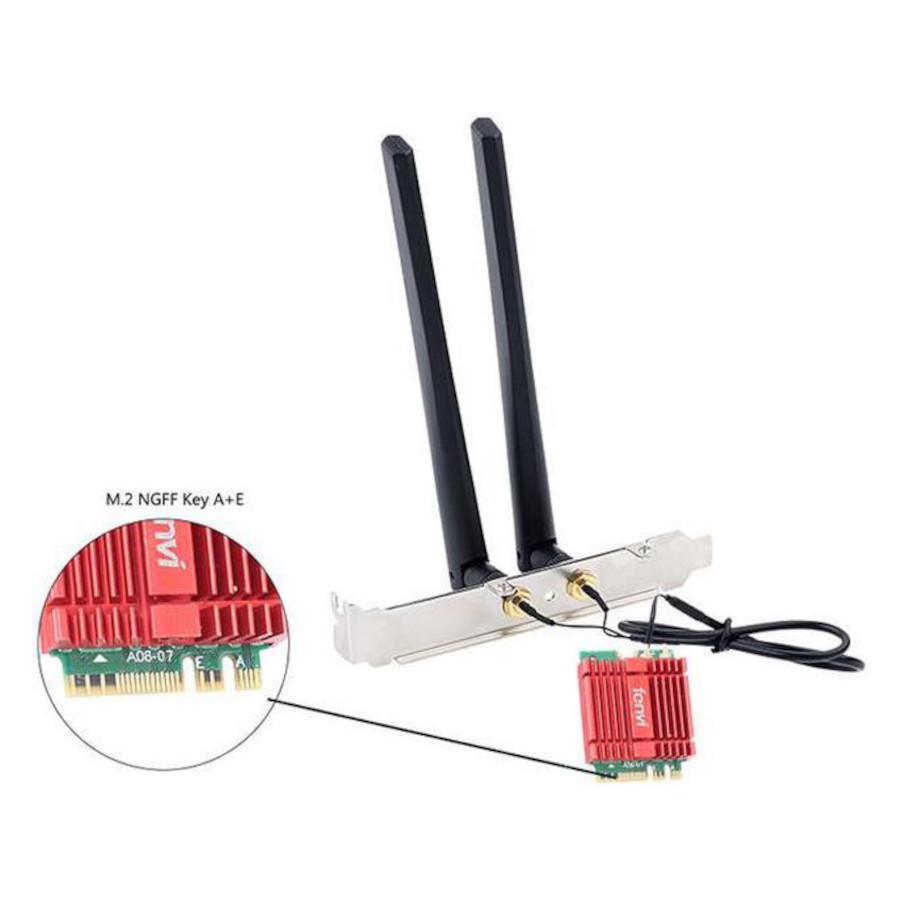

A motherboard that has an M.2 Socket with Key E, also known as:

M.2 for Wi-Fi

M.2 Socket 1

Note: You cannot install the fenvi Dual Band Wireless-AX AX200 Desktop Kit with M.2 Socket 3 (Key M) or Socket 2 (Key B).

Where can I buy motherboards that has M.2 socket with Key E?

Contact your local distributor or the motherboard vendors for list of motherboards that has M.2 socket with Key E.

ASRock, ASUS, Gigabyte, MSI

• AX200 wifi adapter for desktop is based on Wi-Fi 6, or IEEE 802.11ax technology. This desktop pcie wifi card supports 2×2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as BT 5.0 support.
• With 1024-QAM, each symbol carries 10 bits rather than 8 bits, improving raw speeds by 25% compared to 802.11ac 256-QAM. Watch Netflix at home or live stream Twitch Broadcasts from your home computer
• Take your MINI Desktop Wi-Fi to the next level while being backward compatible with 802.11a/b/g/n/ac Wi-Fi standards.
• AX200 has BT5.0 Function Equipped with BT5.0 technology. Support connecting with Bluetooth headset, Bluetooth stereo, Bluetooth keyboard, Bluetooth mouse and others for more conveniences and demands.
• The Fenvi AX200 ngff is fenvi’s wifi card with next-generation 802.11ax Wi-Fi technology.
• Note: You cannot install the fenvi Dual Band Wireless-AX AX200 Desktop Kit with M.2 Socket 3 (Key M) or Socket 2 (Key B).
• Contact your local distributor or the motherboard vendors for list of motherboards that has M.2 socket with Key E. ASRock, ASUS, Gigabyte, MSI

• 1* Dual Band Wireless-AX AX200 adapter,2* Optimized external antenna, Standard sized mounting bracket with RF cables installed
• Low profile mounting bracket
• Installation guide

Wi-Fi 6 expands the WiFi band from 80 MHz to 160 MHz, doubling the channel width and creating a faster connection from your router to the device. With Wi-Fi 6, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering.

Key capabilities and benefits

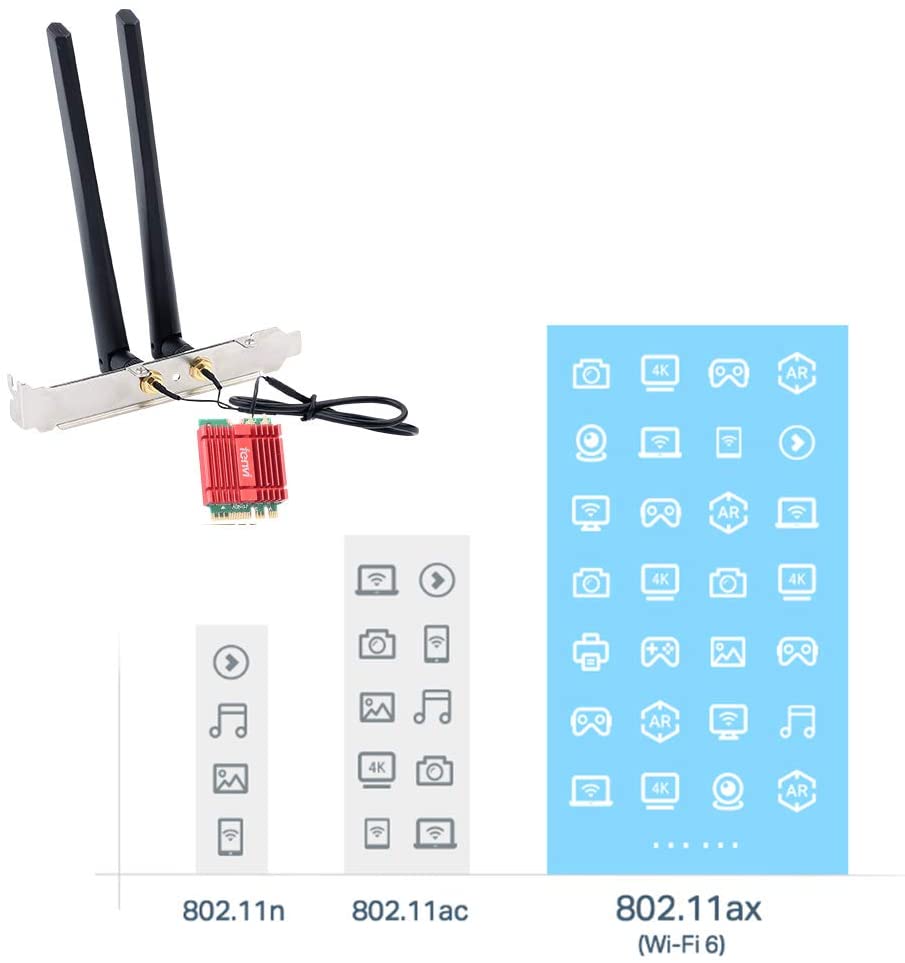

• Orthogonal frequency division multiple access (OFDMA) enables more users to simultaneously operate in the same channel and therefore improves efficiency, latency, and throughput

• Multi-user multiple input, multiple output (MU-MIMO) allows more data to be transferred at once and enables an access point to handle a larger number of concurrent clients

• Transmit beamforming improves signal power resulting in significantly higher rates at a given range

• 1024 quadrature amplitude modulation mode (1024-QAM) enables throughput increases by as much as 25 percent over Wi-Fi 5

• Target wake time (TWT) makes Wi-Fi CERTIFIED 6 devices more power efficient

Increased Efficiency with OFDMA, More Speed and Greater Stability

The Wi-Fi 6 standard uses OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or “packet” could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

OFDM is a symbol that transmits data. It divides its data among smaller sub carriers for more stability and wider coverage. AX WiFi uses a 4x longer OFDM symbol to create 4x more sub carriers. Because of this, Wi-Fi 6’s longer OFDM symbol provides increased coverage and makes it 11% faster. Enjoy rock solid coverage from your garage to the second story and get ultra-fast connections for all your smart home, mobile, gaming and desktop devices in between.

Beamforming

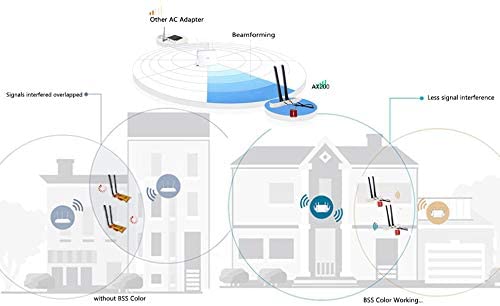

802.11ax will employ an explicit beamforming procedure, similar to that of 802.11ac. Under this procedure, the beamformer initiates a channel sounding procedure with a Null Data Packet. The beamformee measures the channel and responds with a beamforming feedback frame, containing a compressed feedback matrix. The beamformer uses this information to compute the channel matrix, H. The beamformer can then use this channel matrix to focus the RF energy toward each user.

Matching Wi-Fi 6 devices will deliver the best results FV-AX200, like have a compatible router for wifi 6:

ASUS GT-AX11000 RT-AX88U RT-AX92U RT-AX95Q RT-AX95U GT-AX6000 RT-AX58U

Arris SURFboard W31 TG9442

D-Link DIR-X6060 DIR-X9000

Netgear RAX200 (Nighthawk Tri-Band AX12) RAX80 (Nighthawk AX8) RAX120 (Nighthawk AX12) RAX40 (Nighthawk AX4) RAX40 (Nighthawk AX4)

TP-LINK Archer AX11000 Archer AX1500 Archer AX1800 Archer AX6000

Calix GigaSpire GS2020E GS2026E

Charter RAX1V1K

NEC BL1000HW

Basic requirements:A motherboard that has an M.2 Socket with Key E, also known as:

M.2 for Wi-Fi, M.2 Socket 1, Flags: BT 5.0, DFS (slave), VHT160, HE160, Wi-Fi 6, 1024QAM, Bands: 2.4 Ghz 5 Ghz, Channel: 20MHz, 40MHz, 80MHz, 80+80MHz & 160MHz
