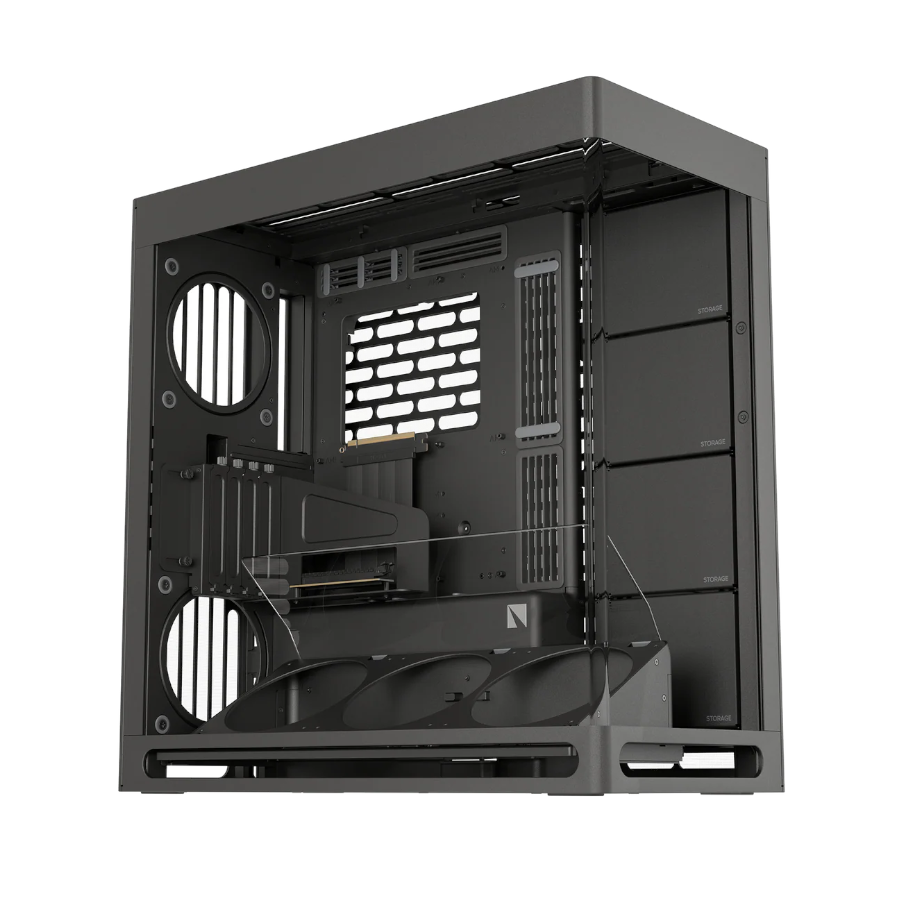

HS420 VGPU Edition Black Mid Tower Case – Black
ر.ع.99.00
Form Factor
Mid Tower
Material
SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H)
541 x 259.5 x 547 mm
Net Weight
19 kg
Warranty
1 year
Notice
Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.
Please review our full warranty terms for more information.
Front I/O
USB 3.2 Gen 2 Type-C x1
USB 3.2 Gen 1 Type-A x2
Audio Jack x1
Power & Reset Button x1
Motherboard Support
E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots
6 horizontal, 4 vertical
Fan Support
Maximum Amount: 11
Top: 3 x 120 / 3 x 140 mm
Right: 3 x 120 / 3 x 140 mm
Bottom: 3 x 140 mm
Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
Fan PWM Repeater
Fan Ports: 2 x PWM repeaters, 12 ports total
Location: 1 x Cable Management Tray
1 x PSU Shroud
Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port’s signal.)
Fan Rated Voltage: 12V
Fan Safety Current: Up to 2.6A across 6 ports
Power Connector: 1 x SATA Power
Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)
CPU Tower Cooler Clearance
Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.
Liquid Cooling Support
Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
Right: 280 / 360 / 420 mm (Thickness: 80 mm w/ GPU >317mm, 80 mm w/ top AIO)
Width: Up to 145 mm
Graphics Card Clearance
Length: Up to 470 mm
Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.
Vertical GPU Support
4 Slots
PCI Express 5.0 Riser Cable Included
RAM Clearance
If the fan and radiator thickness is greater than 65 mm: 420 mm – 32 mm / 360 mm – 43 mm
Power Supply Support
ATX
Length: Up to 220mm (Clearance – 290mm)
Storage
Right Fan Mount: 4 Storage Bays: 4 x 3.5” / 8 x 2.5”
Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5”
Storage Bay Included: 4x
Internal Display Support
VESA Mounting: 75 x 75 mm / 100 x 100 mm
Display Size: 14 in. (Max)
Location: Front Right Pillar
Dust Filter
Bottom: 1 (Removable)
Top: 1 (Built-in)
Right: 1 (Built-in)
Rear Bottom: 1 (Removable)
Fan Configuration Rec
Additional information
| Weight | 19 kg |
|---|
