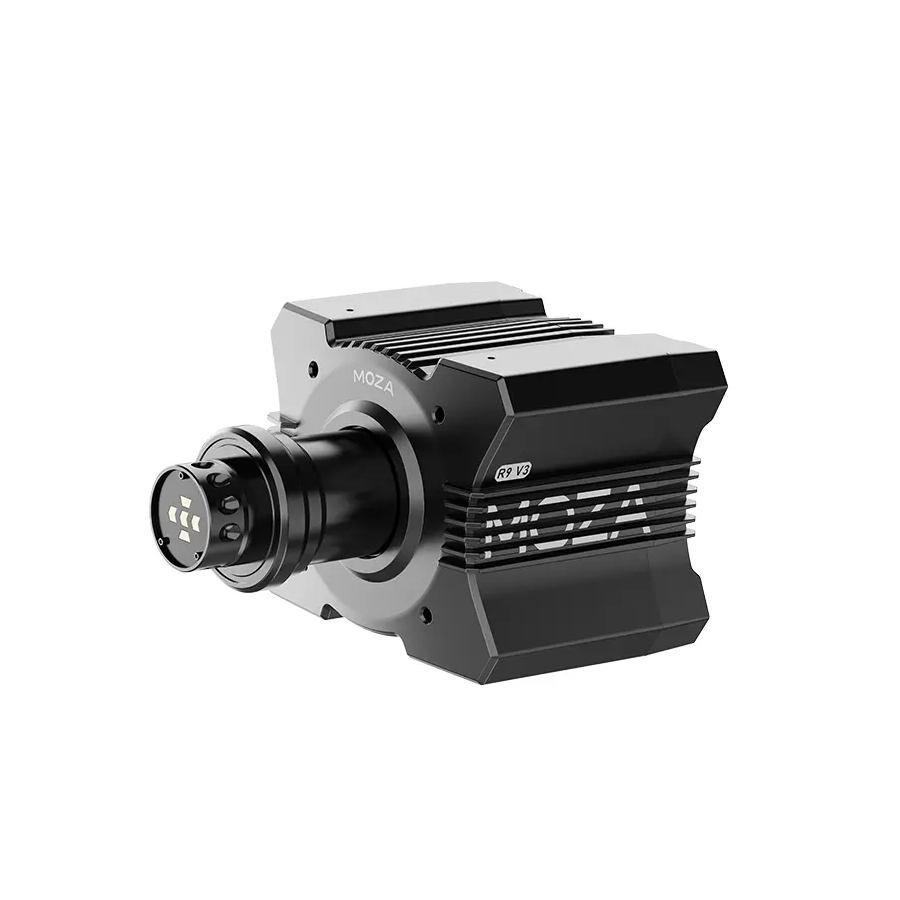

MOZA R9 V3 Direct Drive Wheel Base RS080

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: 90-2700°
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit
