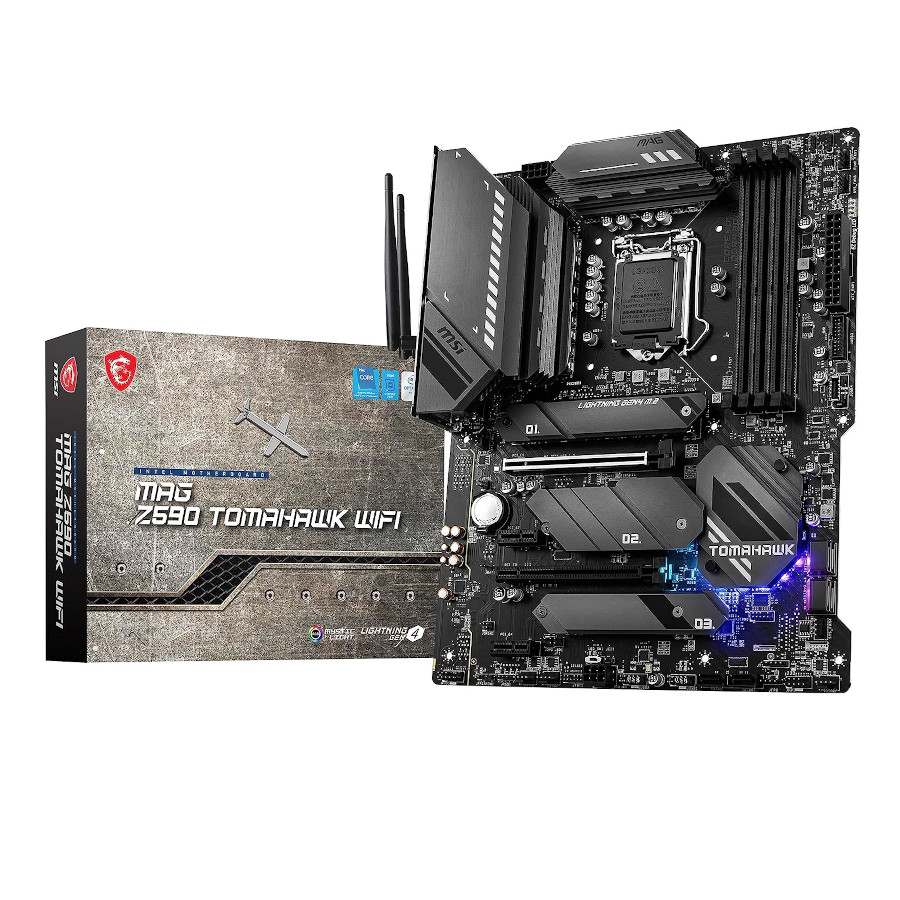

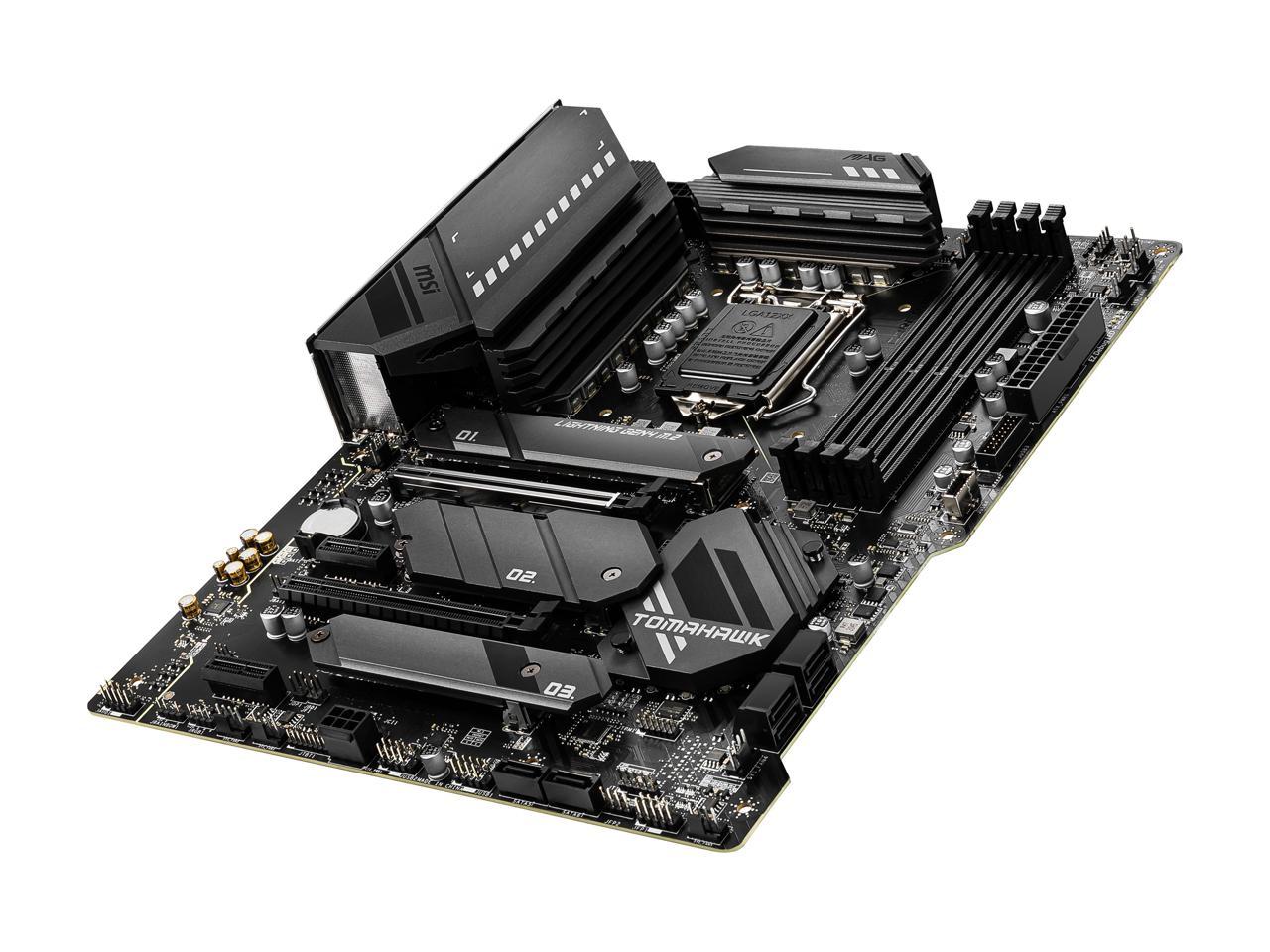

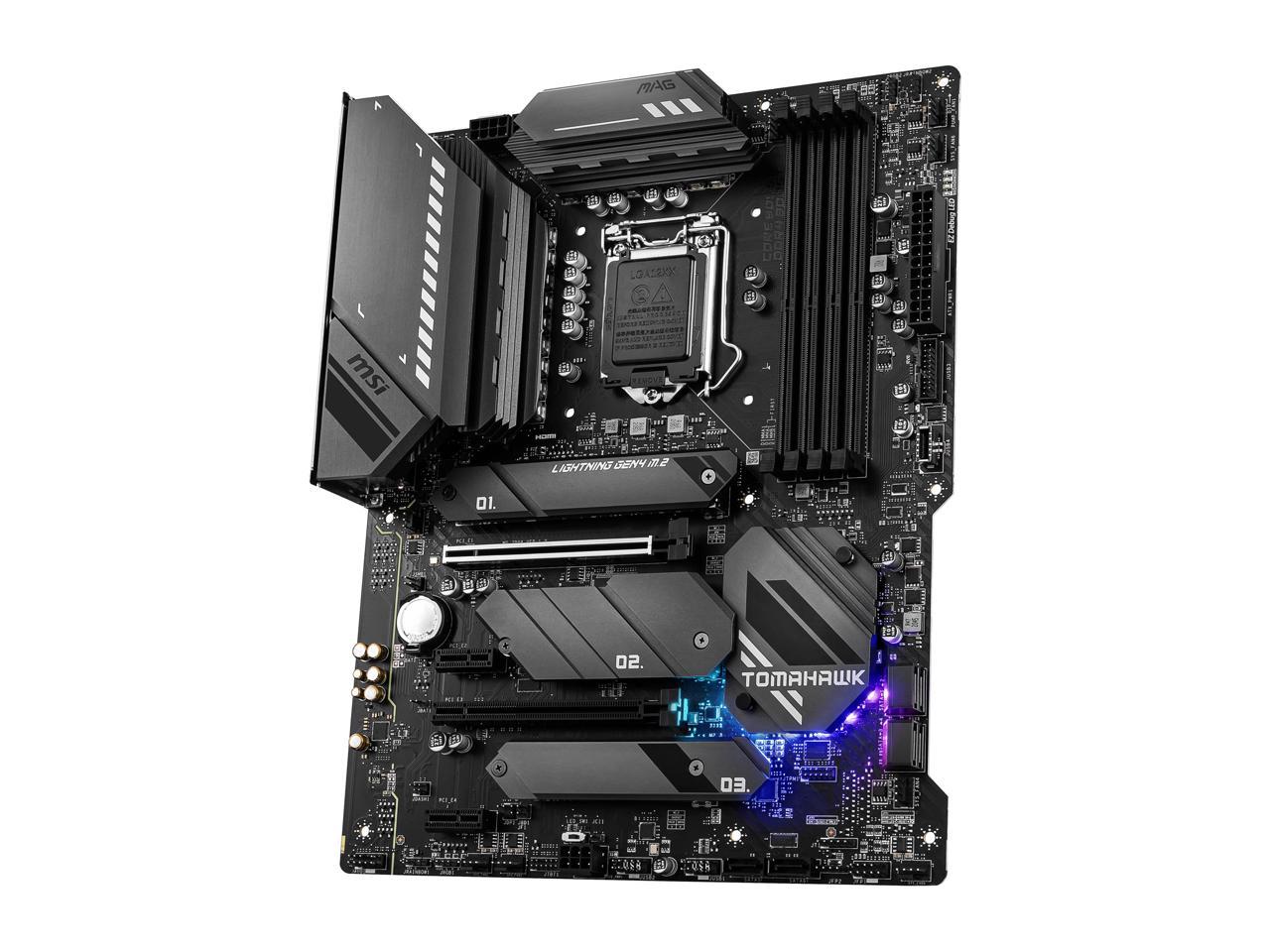

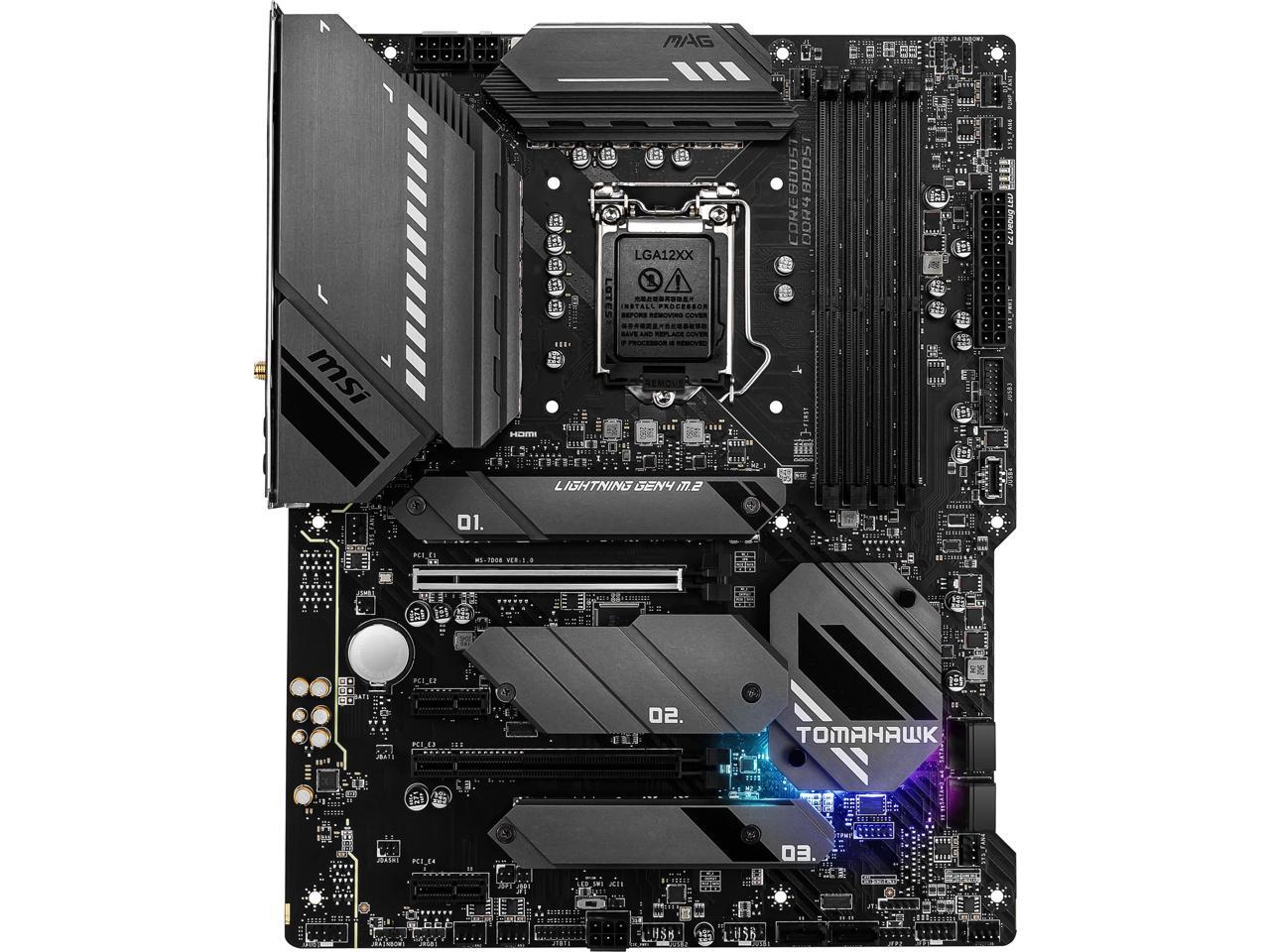

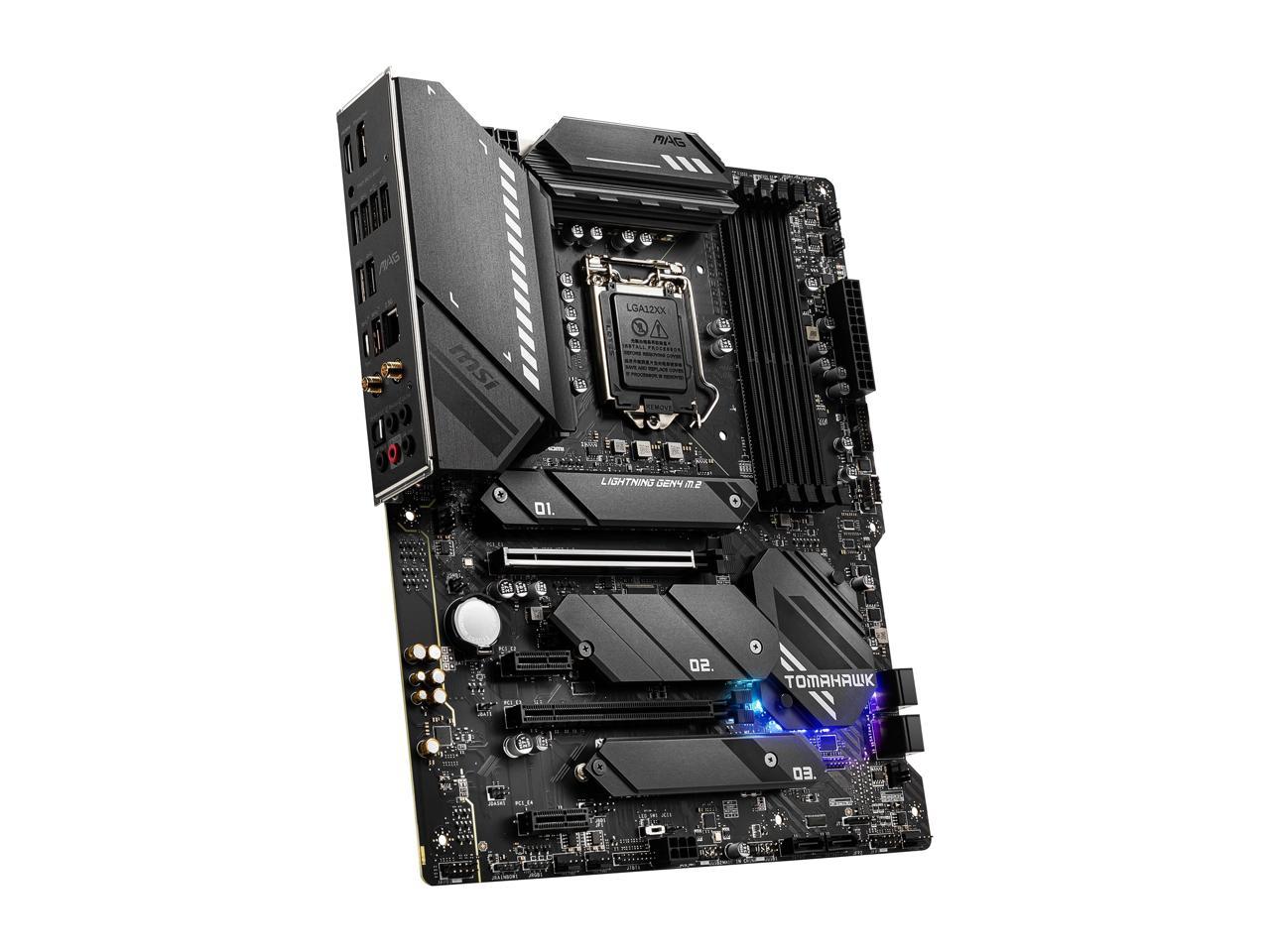

MSI Z590 TOMAHAWK WIFI

ر.ع.92.00ر.ع.116.00 (-21%)

In stock

SKU: TT-MB-0168 Categories: ,

MAG Z590 TOMAHAWK WIFI

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Specification
Model
Brand    MSI
Model    MAG Z590 TOMAHAWK WIFI
Supported CPU
CPU Socket Type     LGA 1200
CPU Type    Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium Gold / Celeron processors
Chipsets
Chipset     Intel Z590
Onboard Video
Onboard Video Chipset     Supported only by CPU with integrated graphic
Memory
Number of Memory Slots    4×288pin
Memory Standard    DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 5333
1DPC 2R Max speed up to 4700+
2DPC 1R Max speed up to 4400+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported    128GB
Channel Supported     Dual Channel
Expansion Slots
PCI Express 4.0 x16    1 x PCI Express 4.0 x16

* Actual support may vary by CPU.
PCI Express 3.0 x16    1 x PCI Express 3.0 x16
PCI Express x1    2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s     6 x SATA 6Gb/s
M.2    3 x M.2 slots (Key M)

M2_1 slot (From CPU):
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/2260/2280/22110 storage devices

M2_2* & M2_3** slot (From Z590 chipset):
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/2260/2280 storage devices

* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
** SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
Intel Optane Ready    Intel Optane Memory Ready*

* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID    0/1/5/10
Onboard Audio
Audio Chipset     Realtek ALC4080
Audio Channels     7.1 Channels
Onboard LAN
LAN Chipset    Intel I225-V
Max LAN Speed    10/100/1000/2500Mbps
Wireless LAN    Intel Wi-Fi 6E AX210
Supports 802.11a/b/g/n/ac/ax
Bluetooth    Bluetooth 5.2

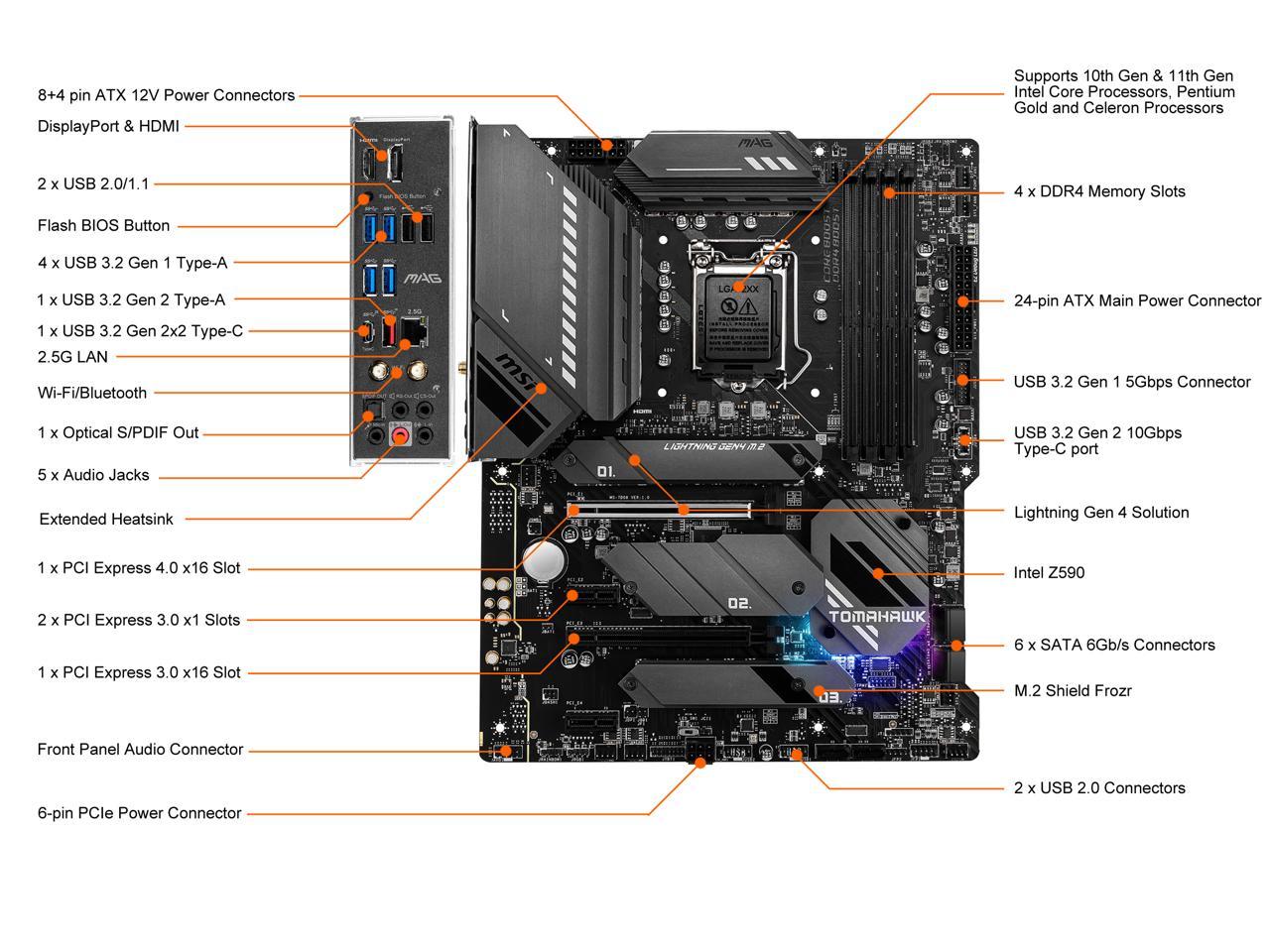

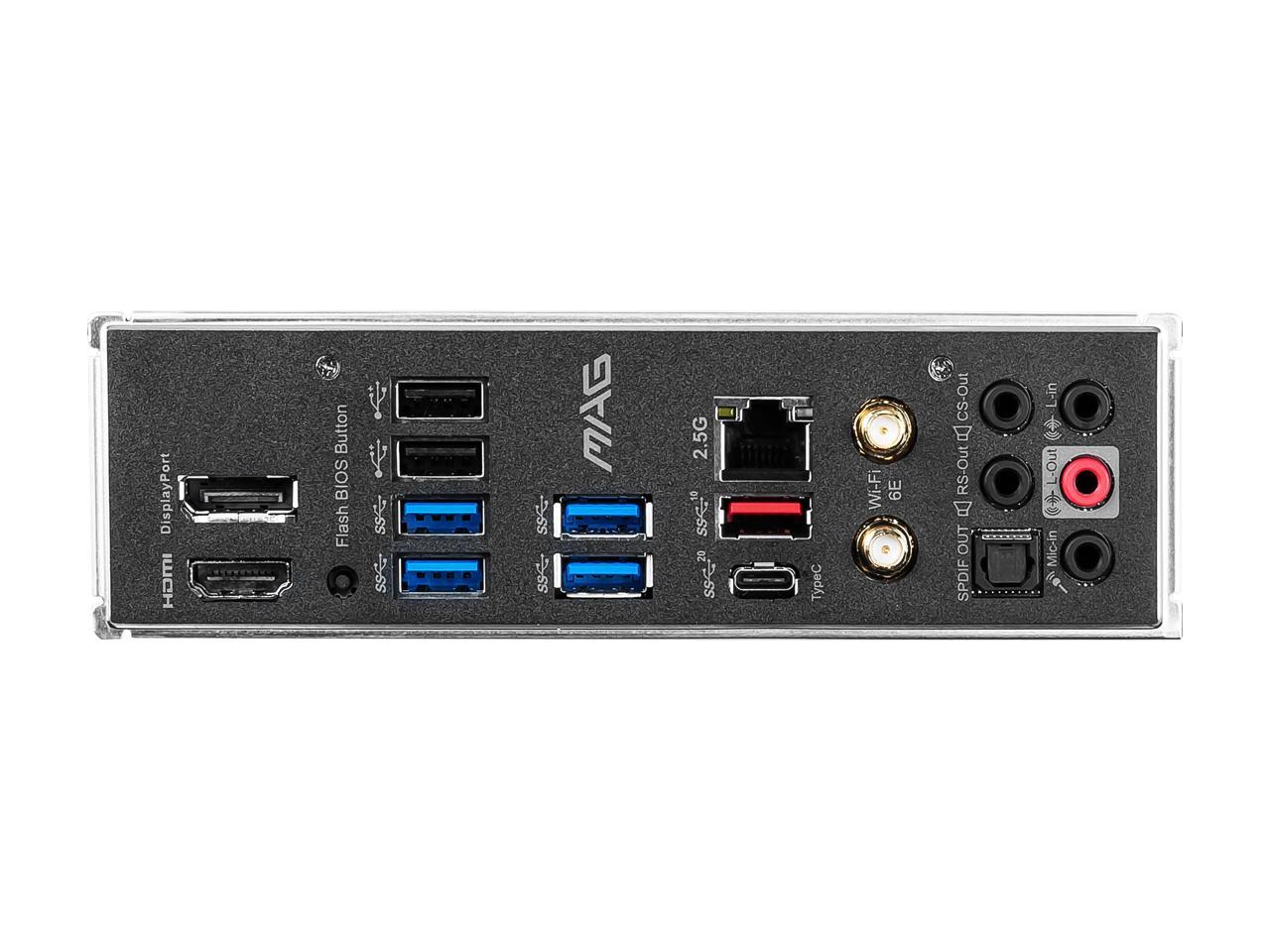

Rear Panel Ports
Back I/O Ports    1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF Out
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2×2 Type-C
2 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
5 x Audio Jacks
Wi-Fi / Bluetooth Antenna
Internal I/O Connectors
Onboard USB    1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors    1 x 6-pin PCIE power connector
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector
Physical Spec
Form Factor    ATX
Dimensions (W x L)    12.0″ x 9.6″
Power Pin    1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows Compatibility
Windows 11    Supported
Features
Features    Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 5333(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire

See more msi.com




Additional information

Weight 2 kg
