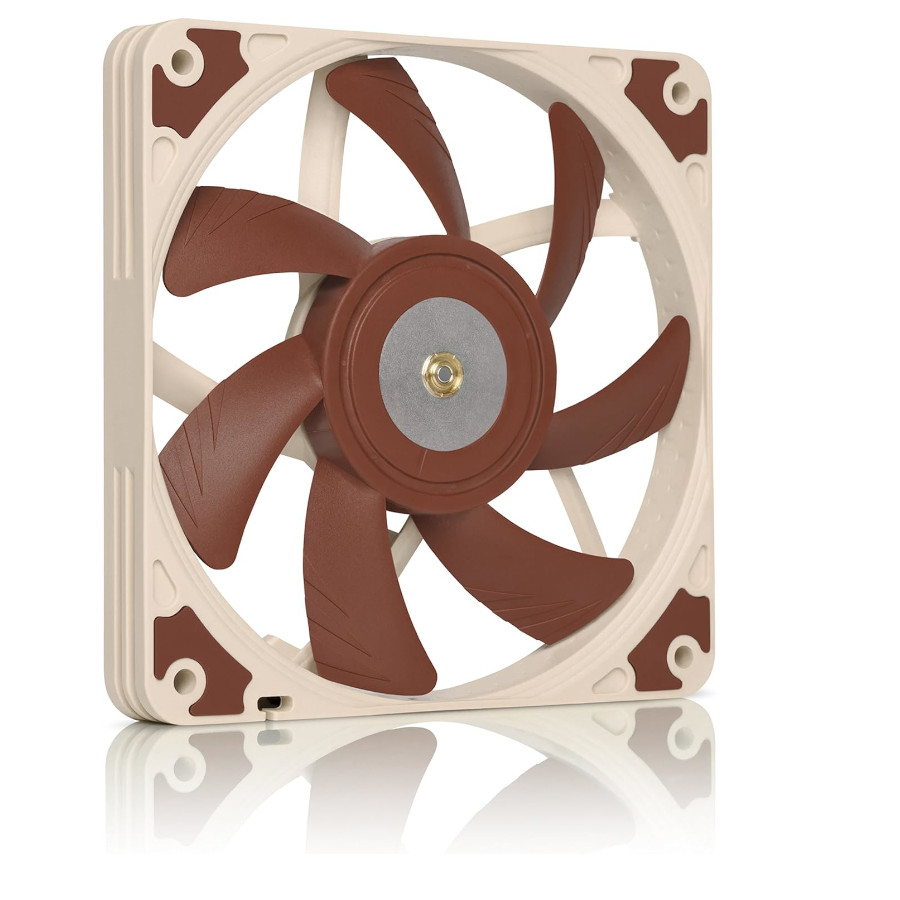

NOCTUA NF-A12x15 PWM Fan
ر.ع.10.48
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 1850 to 1400rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
120x120x15 mm
Mounting hole spacing
105×105 mm
Cable length
20cm + 30cm NA-EC1 extension cable
Rotational speed (+/- 10%)
1850 RPM
Rotational speed with L.N.A. (+/- 10%)
1400 RPM
Min. rotational speed (PWM, +/-20%)
450 RPM
Acoustical noise
23,9 dB(A)
Acoustical noise with L.N.A.
16,8 dB(A)
Static pressure
1,53 mm H₂O
Static pressure with L.N.A.
0,9 mm H₂O
Max. input power
1,56 W
Max. input current
0,13 A
Operating voltage
12 V
MTTF
> 150.000 h

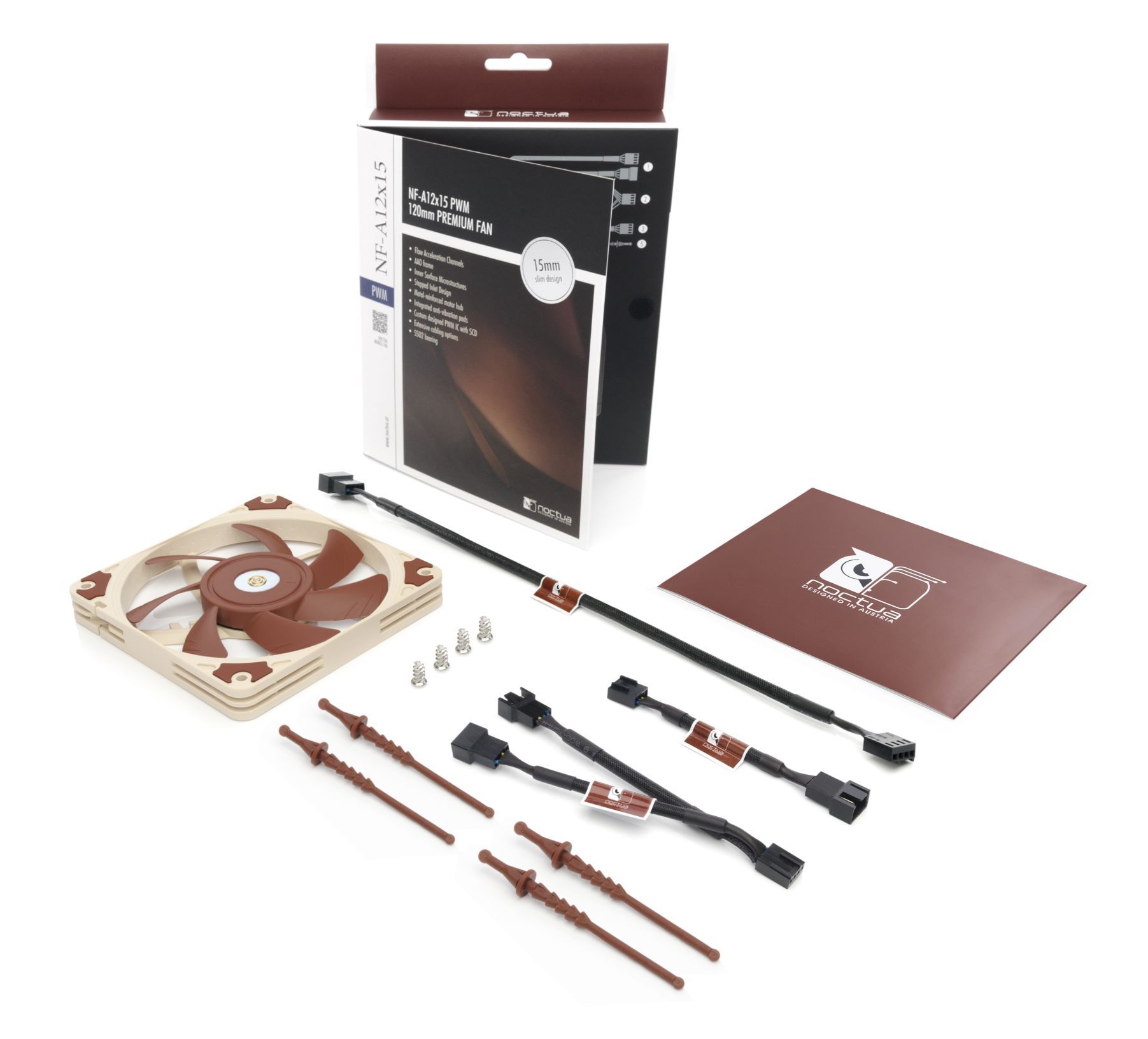

Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- 4-pin y-cable
- 30cm extension cable
- NA-AV3 anti-vibration mounts
- Fan screws
Additional information
| Weight | 0.7 kg |
|---|
