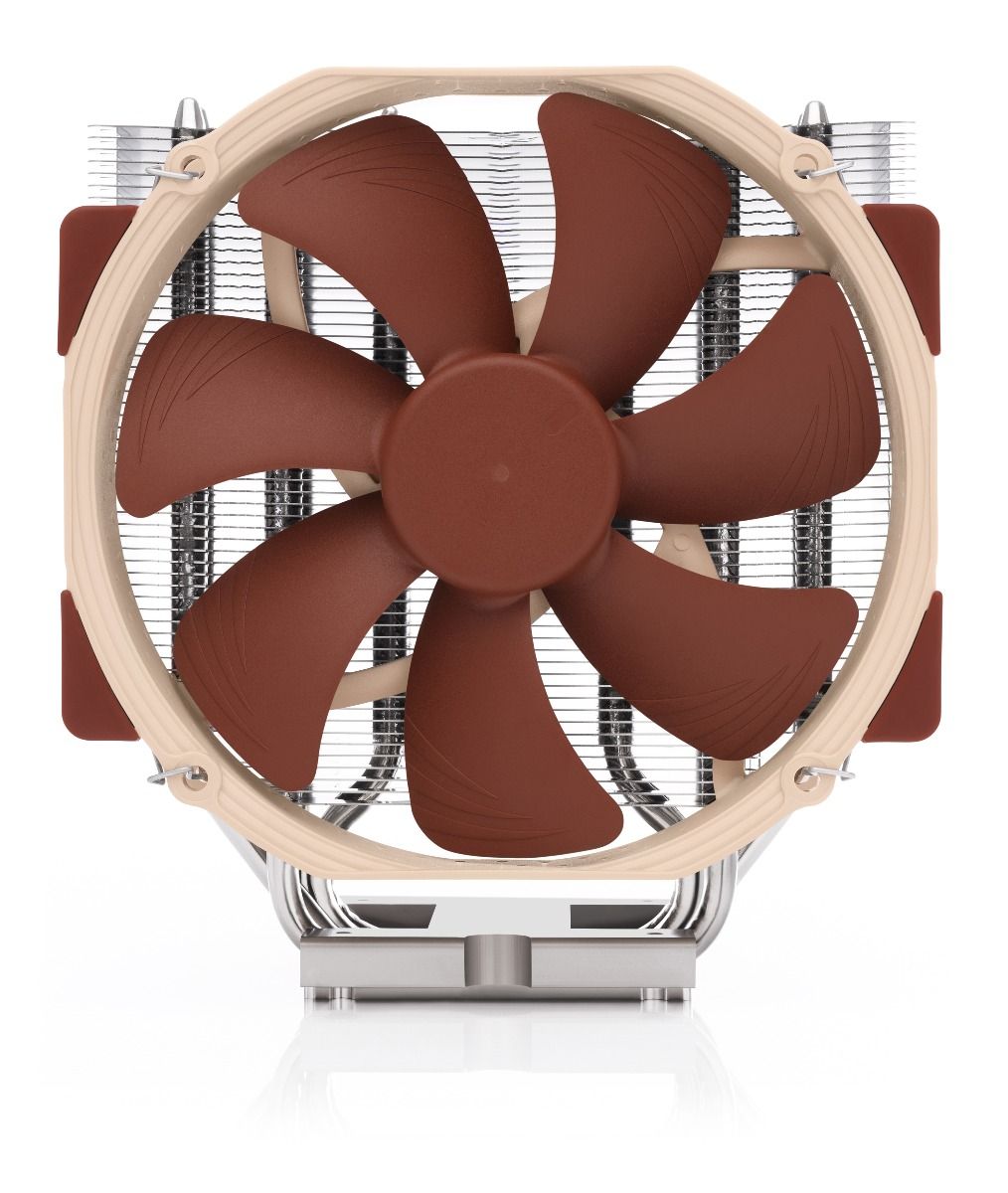

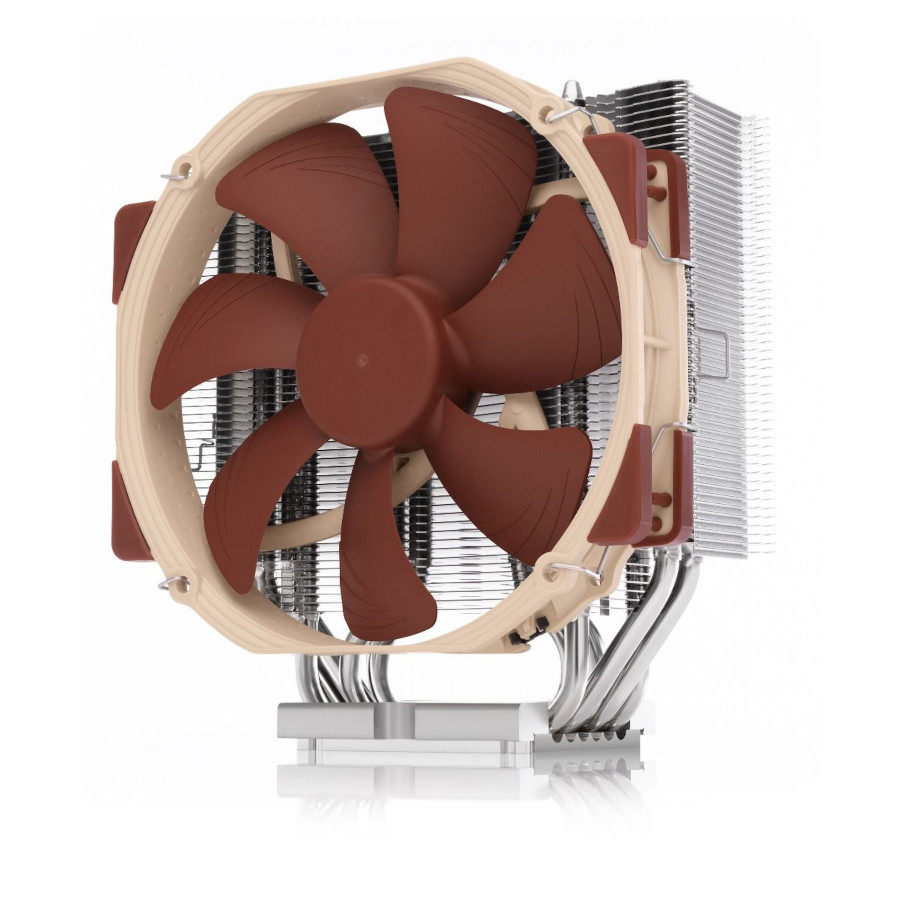

NOCTUA NH-U14S DX-3647 CPU Air Cooler
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U14S DX-3647 features a larger, custom-designed contact surface and supports both square and narrow type LGA3647-0 platforms. Based on the proven, 140mm size NH-U14S heatsink and equipped with Noctua’s award-winning, PWM controlled NF-A15 140mm fan, it combines maximum performance and superb acoustics. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U14S DX-3647 forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.
Cooler Specification
socket compatibility Intel Xeon LGA3647-0
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52 mm
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
- NF-A15 PWM premium fan
- NT-H1 high-grade thermal compound (pre-applied)

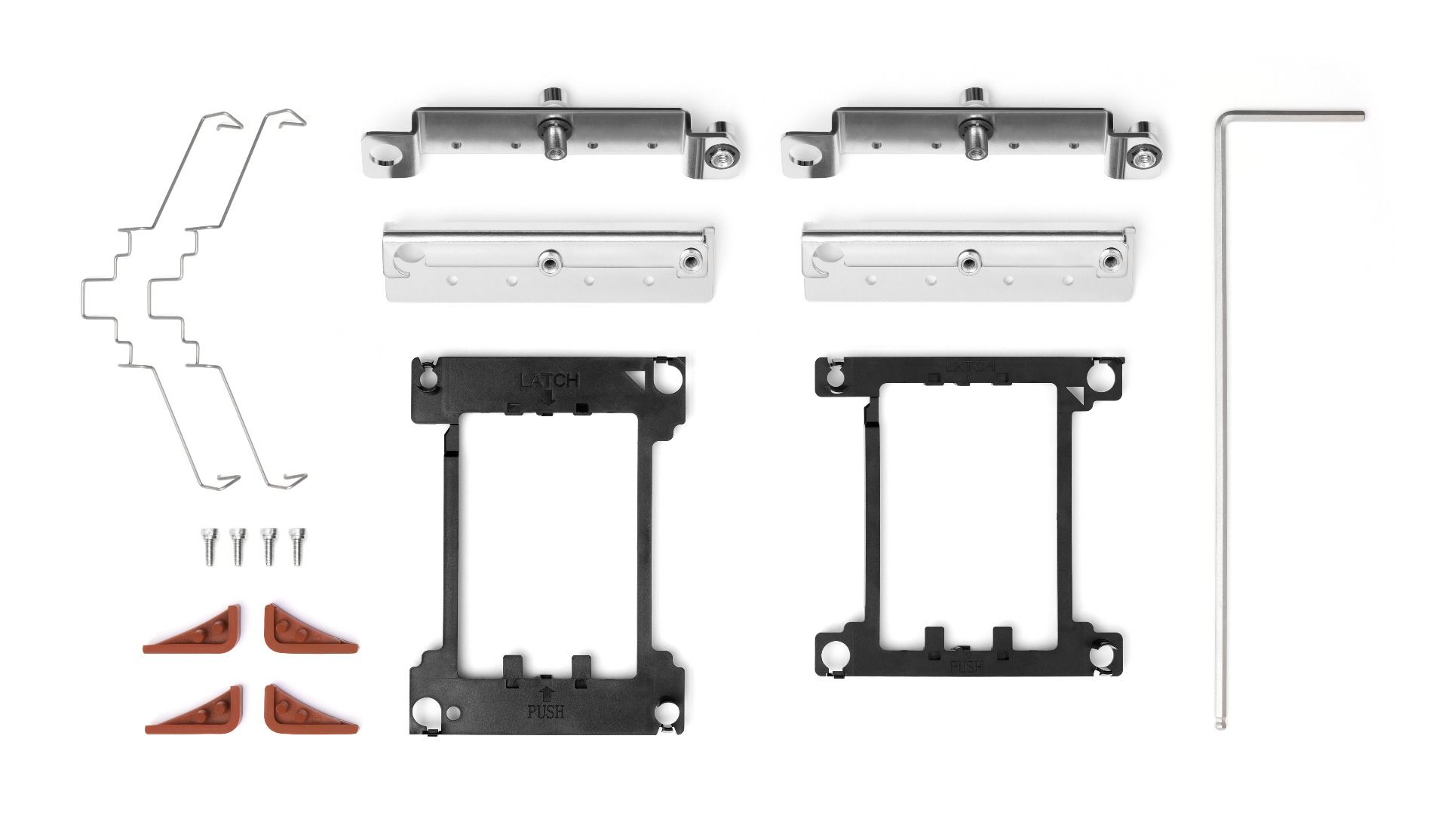

- SecuFirm2™ mounting kit for LGA3647
- Anti-vibration pads and fan-clips for second NF-A15 (optional)
- Noctua metal case-badge
Additional information
Weight | 1.1 kg |
---|
