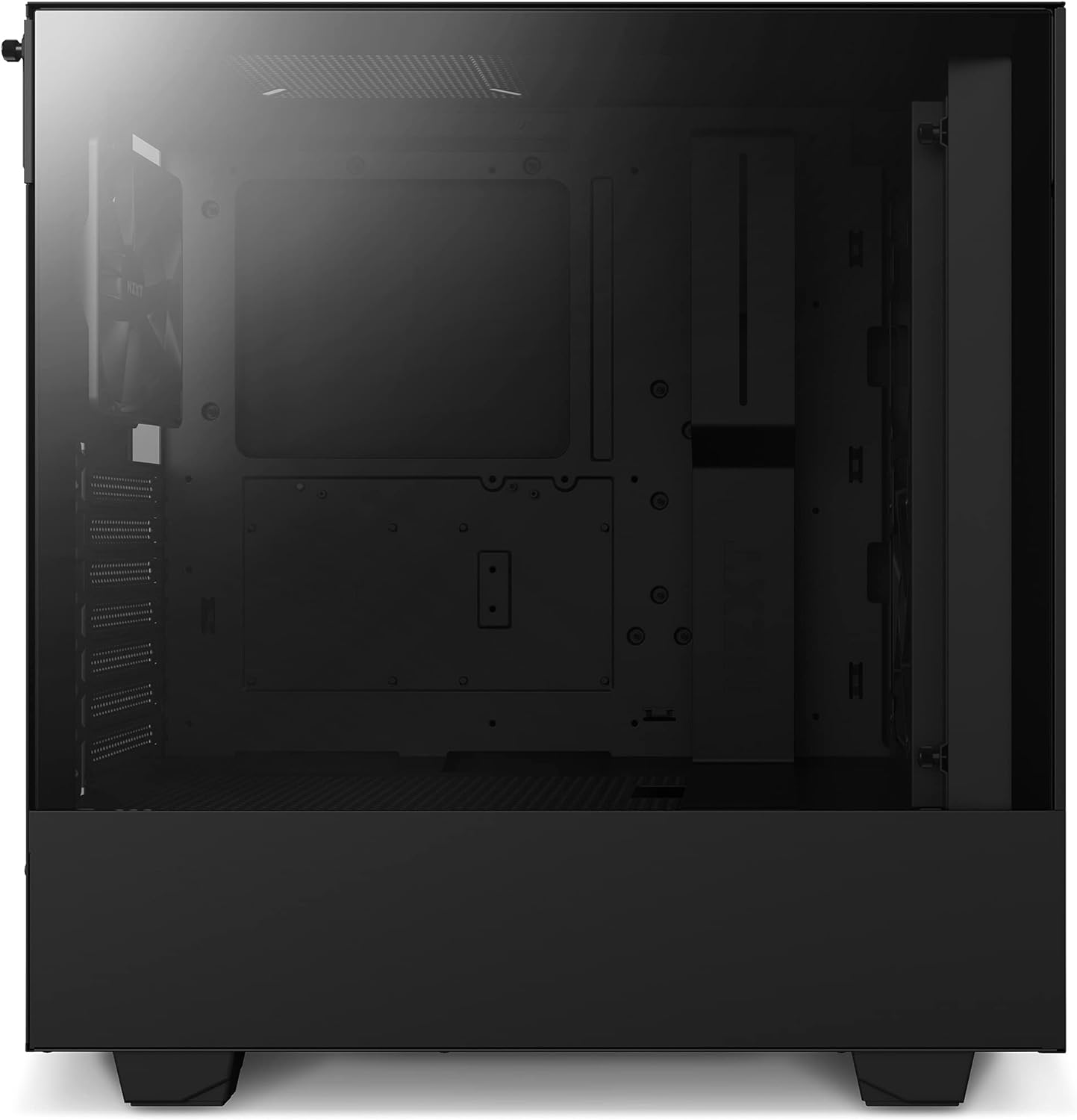

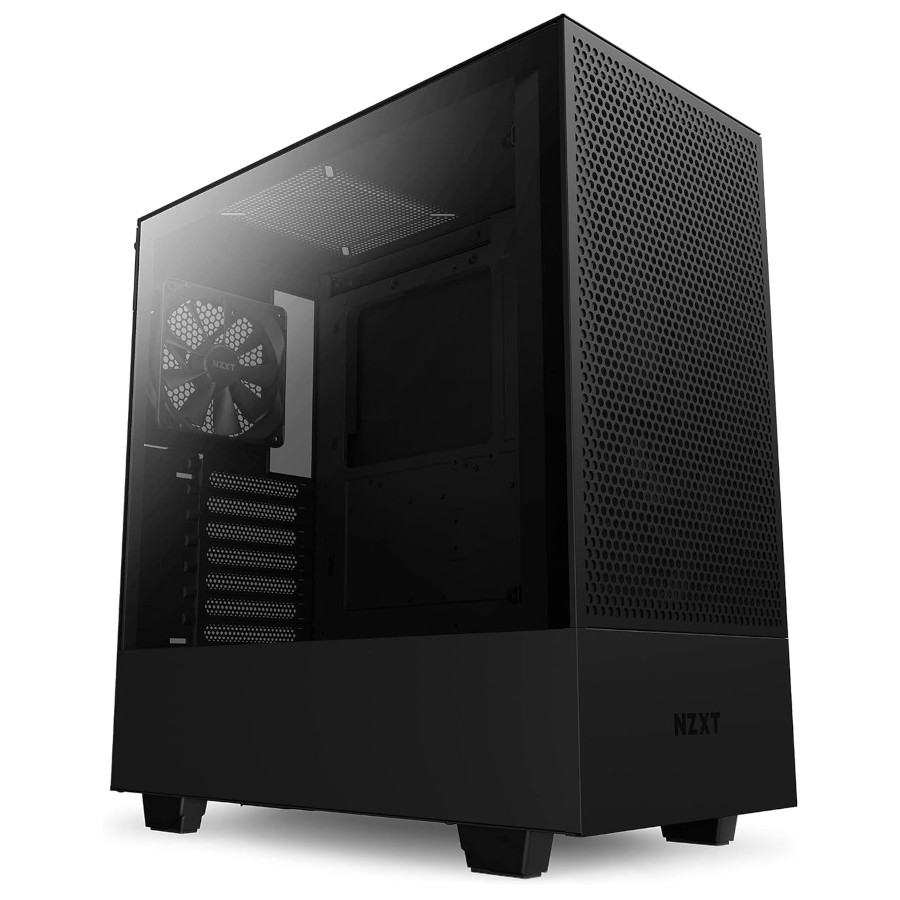

NZXT H510 Flow Black
ر.ع.38.10
NZXT H510 Flow Black
This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The H510 is easy to build in and offers flexibility for a variety of ATX parts.
- An optimized perforated top panel delivers increased airflow to your system for improved temperatures
- Iconic cable management bar and uninterrupted tinted tempered-glass side panel
- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filters on all air intakes
- Removable bracket designed for radiators up to 280mm
Inside the Box
-
H510 Flow Case1
-
Aer F 120mm (Case Version)2
-
Headset Audio Jack Splitter1
-
Breakout Cable1
-
Installation Accessories1
-
Manual1
Tech Specs
KEY SPECS
- Motherboard Support:Mini-ITX, MicroATX, ATX
- Enclosure Type:Compact Mid-Tower
- Case Material:SGCC Steel, Clear Tempered Glass
DIMENSIONS
- Height:460 mm / 18.11 inches
- Width:210 mm / 8.26 inches
- Depth:428 mm / 16.85 inches
- Weight:6.6 kg / 14.5 lb
COMPATIBILITY & CLEARANCE
- Max CPU Cooler Clearance:165 mm
- Max GPU Clearance:360 mm
- Front Fan & Radiator Clearance:60 mm
- Cable Management:19 – 23 mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A:1
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
EXPANSION SLOTS
- Standard:7
- Vertical:–
DRIVE BAYS
- 2.5″:2 + 1
- 3.5″:2 + 1
FAN SUPPORT
- Front:2 x 120mm / 2 x 140mm
- Top:1 x 120mm / 1 x 140mm
- Rear:1 x 120mm
Additional information
| Weight | 8.30 kg |
|---|
