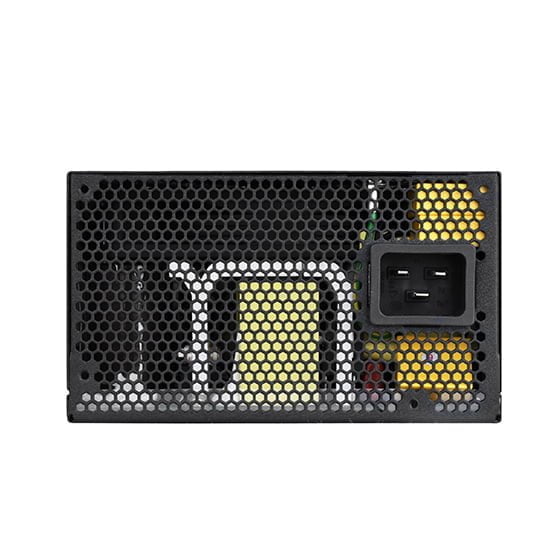

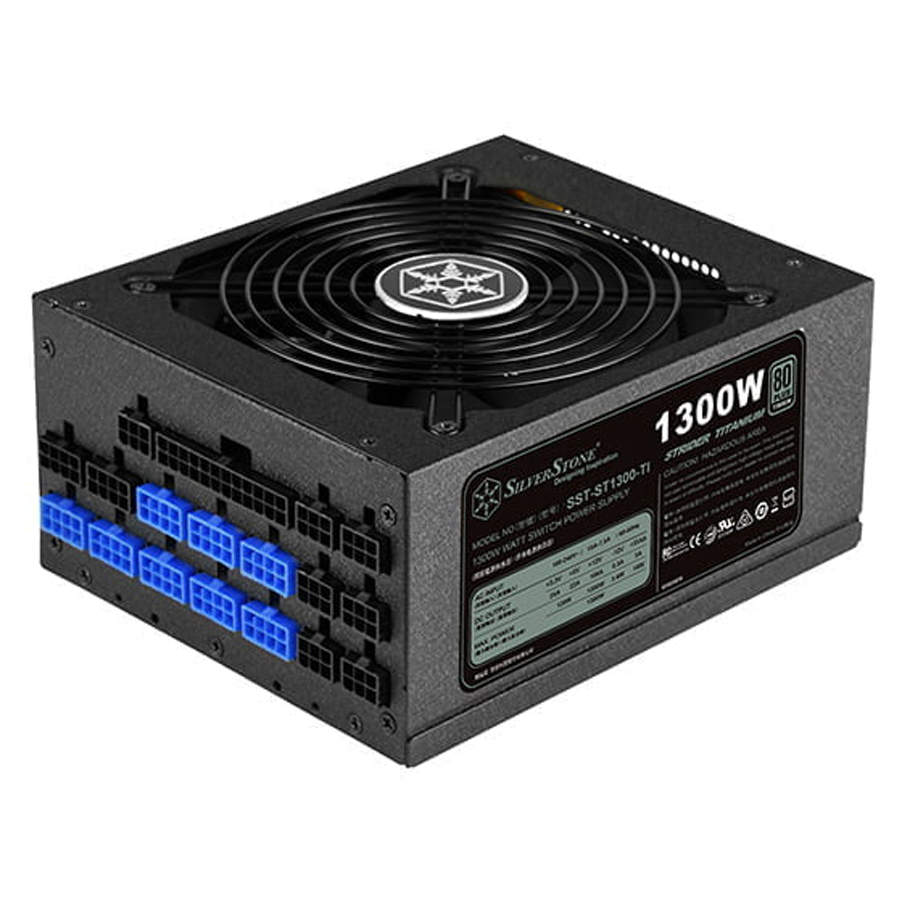

SilverStone 1300W Fully Modular Power Supply 80 Plus Titanium

Silver Stone 1300W Fully Modular Power Supply 80 Plus Titanium

• Top-level efficiency with 80 PLUS Titanium certification
• Japanese electrolytic capacitors
• 100% modular cables
• 24/7 continuous power output with 50℃ operating temperature
• Class-leading single +12V rail
• Strict ±3% voltage regulation and low ripple & noise
• Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support

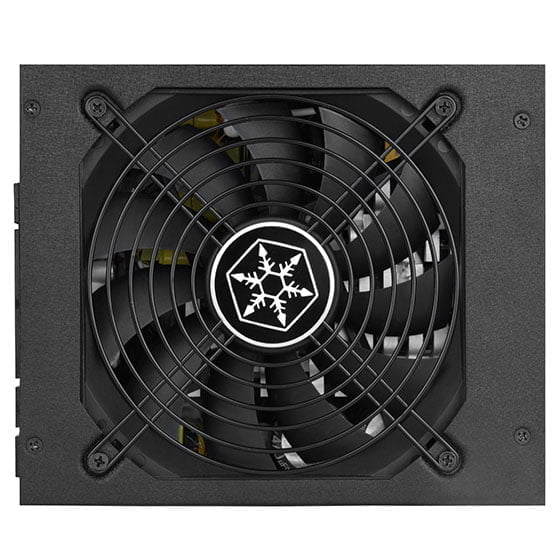

• Ultra silent 135mm fan with intelligent semi-fanless operation

Product No.

SST-ST1300-TI

Color

Black (lead-free paint)

Max. DC Output

1300W (Peak 1400W)

Power density

560W per liter

Load Range

Combined +3.3V & +5V

120W

Combined +12V

1296W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

90% ~ 94% at 10% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0 ~ 50°C

Protection

Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

Over temperature protection

Connectors

1 x 24 / 20-Pin motherboard connector (550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
8 x 8 / 6-Pin PCIE connector (“550mm” x 8)
16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4)
6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2)
1 x 4-Pin Floppy adapter connector (100mm)

Cooling System

Single 135mm silent fan

Noise Level

0 ~ 36 dBA

Certification

80 PLUS Titanium

Form factor

ATX

Dimension

150 mm (W) x 86 mm (H) x 180 mm (D)

Weight

3.96 kg

Other

GPU Support list

* Power supply connector overuse definition
A single PCIe 8pin cable and connector’s maximum current rating is 12.5A, which is 150W (+12V x 12.5A). So SilverStone’s warranty will not cover damages or malfunction resulting from the use of a graphics card or expansion card with a single PCIe 8pin connector that exceeds standard 225W total power draw (150W from PCIe 8pin connector + 75W from PCIe motherboard slot). Similarly, a graphics card or expansion card with dual PCIe 8pin connectors that exceed 375W total power draw (300W from two PCIe 8pin connectors + 75W from PCIe motherboard slot) will also not be covered under warranty.

Peripheral (molex) or SATA connector’s maximum current rating is 5A, which is 60W (+12V x 5A) or 25W (+5V x 5A). Please ensure connected devices are operating under these limits. SilverStone’s warranty will not cover damages or malfunction resulting from usages exceeding these connectors and their associated cables.

24pin motherboard connector’s maximum current rating for its dual +12V metal pins are 5A each, which totals 120W (+12V x 5A x 2). Please ensure +12V drawing devices connected to the motherboard are operating under these limits. SilverStone’s warranty will not cover damages or malfunction resulting from usages exceeding these connectors and their associated cables.

● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
