￭ SFX-L form factor for use in small form factor computers

￭ 800W continuous power output rated for 24/7 operation

￭ Class-leading single +12V rail with 66A

￭ High efficiency with 80 PLUS Titanium certification

￭ Silent running 120mm dual ball bearing* fan with advanced semi-fanless operation

￭ 100% modular short cables with flexible flat arrays

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Support quad PCI-E 8/6pin connectors

￭ Japanese electrolytic capacitors

￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)
Model No.
SST-SX800-LTI
Max. DC Output
800W (Peak 850W)
Power density
775W per liter
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
80W
Combined +12V
792W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
90% ~ 94% at 10% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

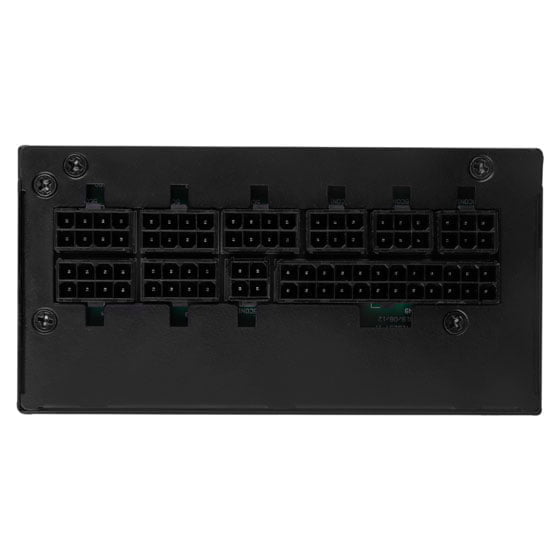

Connectors
V1.1
1 x 24 / 20-Pin motherboard connector（300mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
2 x 8 / 6-Pin PCIE connector（400mm / 150mm）
2 x 8 / 6-Pin PCIE connector（550mm / 150mm）
12 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 3）
3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）
1 x 4-Pin Floppy adapter connector（100mm）

V1.2
1 x 24 / 20-Pin motherboard connector（300mm）
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
2 x 8 / 6-Pin PCIE connector（400mm / 150mm）
2 x 8 / 6-Pin PCIE connector（550mm / 150mm）
12 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 3）
3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）
1 x 4-Pin Floppy adapter connector（100mm）
Cooling System
Single 120mm dual ball bearing* fan
Form factor
SFX-L
Noise Level
0 ~ 36 dBA
Dimension
125 mm (W) x 63.5 mm (H) x 130 mm (D)
4.92″ (W) x 2.5″ (H) x 5.12″ (D)
Weight
1.7 Kg
Certification
80 PLUS Titanium
Other
GPU Support list
Compatible with ATX12V v2.4
