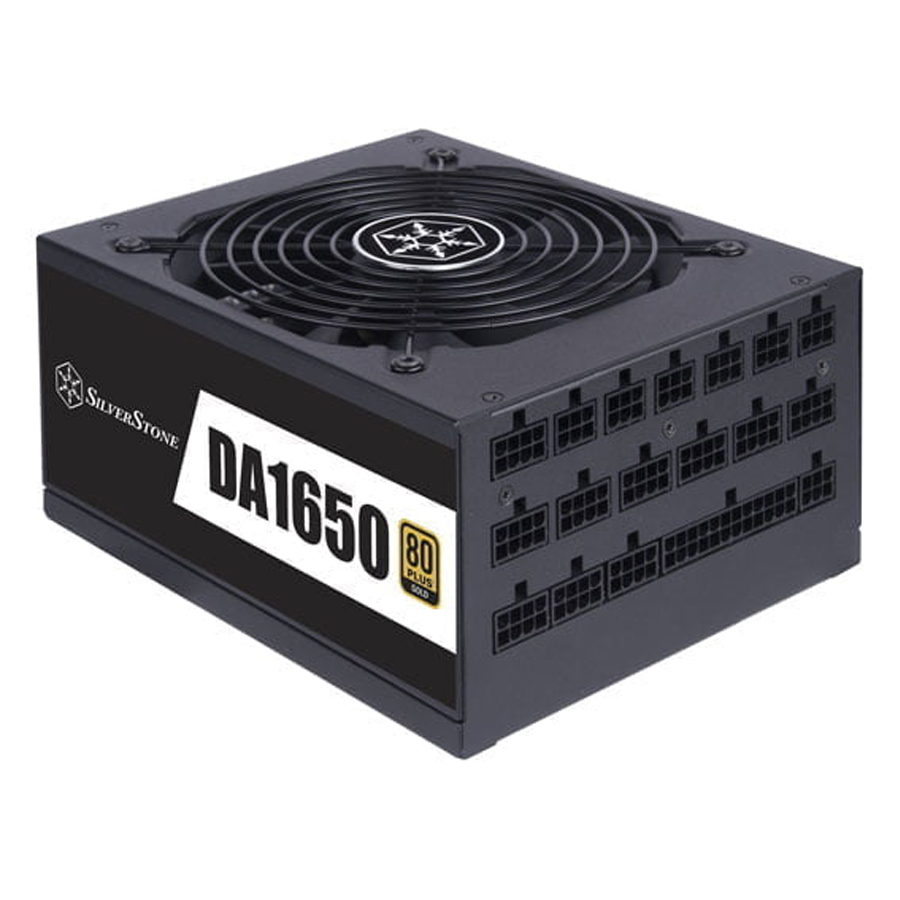

SilverStone DA1650 1650W Fully Modular 80 Plus Gold
ر.ع.116.19
SilverStone DA1650 1650W Fully Modular 80 Plus Gold
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 50℃ operating temperature
- 100% modular design with universal EPS / PCIe connector interface for maximum flexibility
- Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
- Strict ±2% voltage regulation and low ripple & noise
- All Japanese capacitors
Product No.
SST-DA1650-G
Color
Black.（Lead-Free Paint）
Max. DC Output
1650W
Power density
711W per liter
Load Range
|
Output |
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps) |
25A |
25A |
137.5A |
3.0A |
0.3A |
|
Peak (Amps) |
/ |
/ |
/ |
/ |
/ |
|
Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
|
Range (%) |
±2% |
±2% |
±2% |
±5% |
±10% |
|
Line Reg.(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple(mVp-p) |
40mV |
40mV |
80mV |
40mV |
80mV |
Combined +3.3V & +5V
130W
Combined +12V
1650W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at Full Load）
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (600mm)
4 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 4)
8 x 8 / 6-Pin PCIe connector (“600mm / 150mm” x 4)
4 x 8 / 6-Pin PCIe connector (“600mm” x 4)
16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4)
6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2)
1 x 4-Pin Floppy adapter connector (100mm)

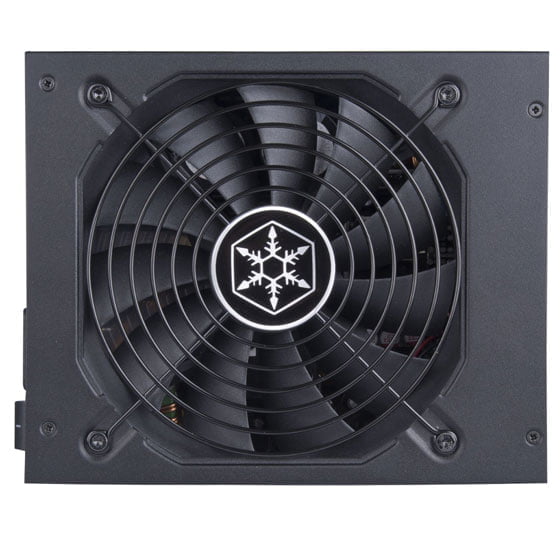

Cooling System
Single 135mm FDB fan
Noise Level
0dBA ~ 36dBA
Certification
80 PLUS Gold
Form factor
ATX / PS/2
Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
Weight
2.09 kg
